Steering Column Module C1 Connector End View
Steering Column Module C1 Connector End View

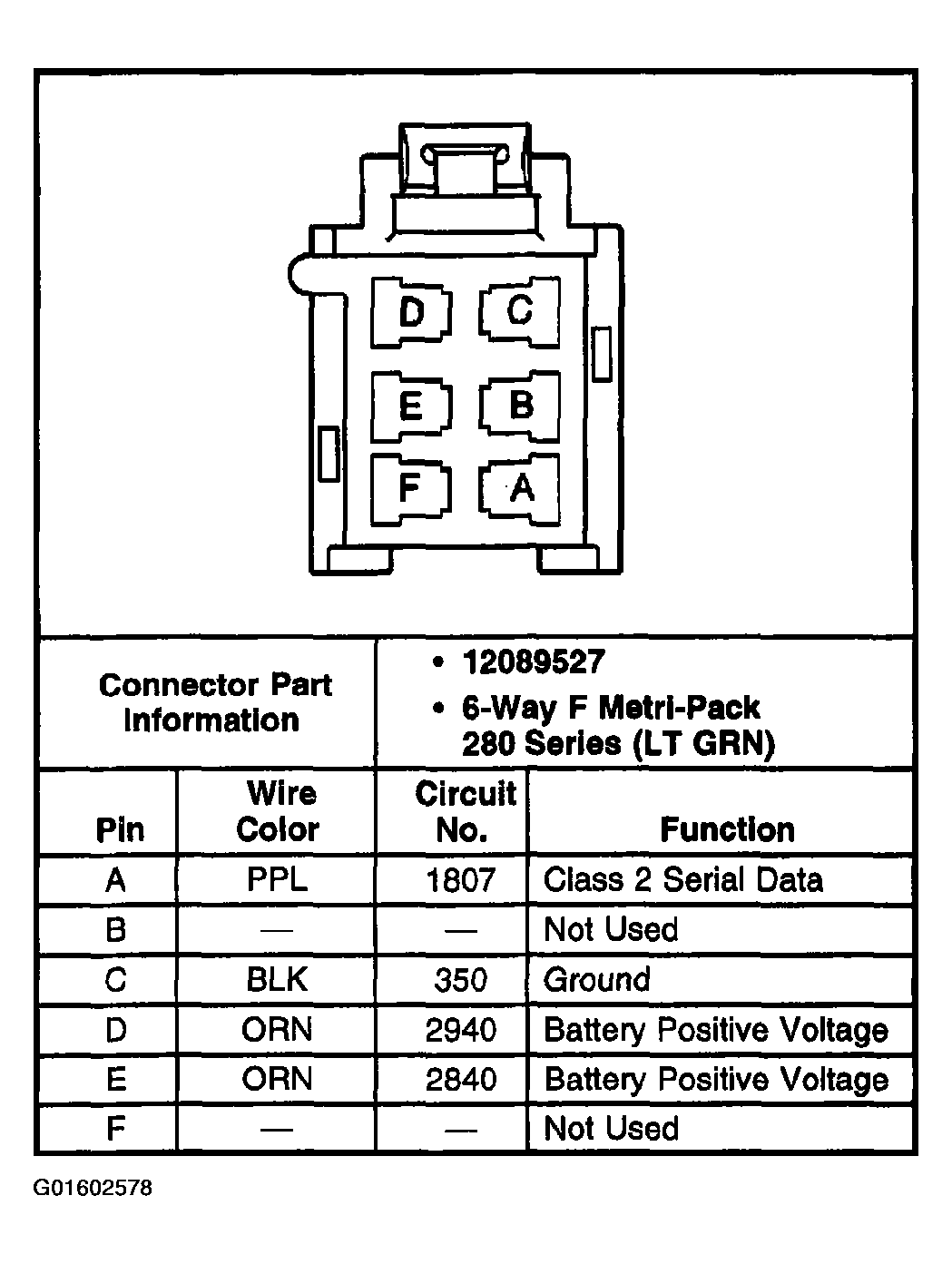

Fig 1: Steering Column Module C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
