Steering Column Module C4 Connector End View - Tilt/Telescope Switch

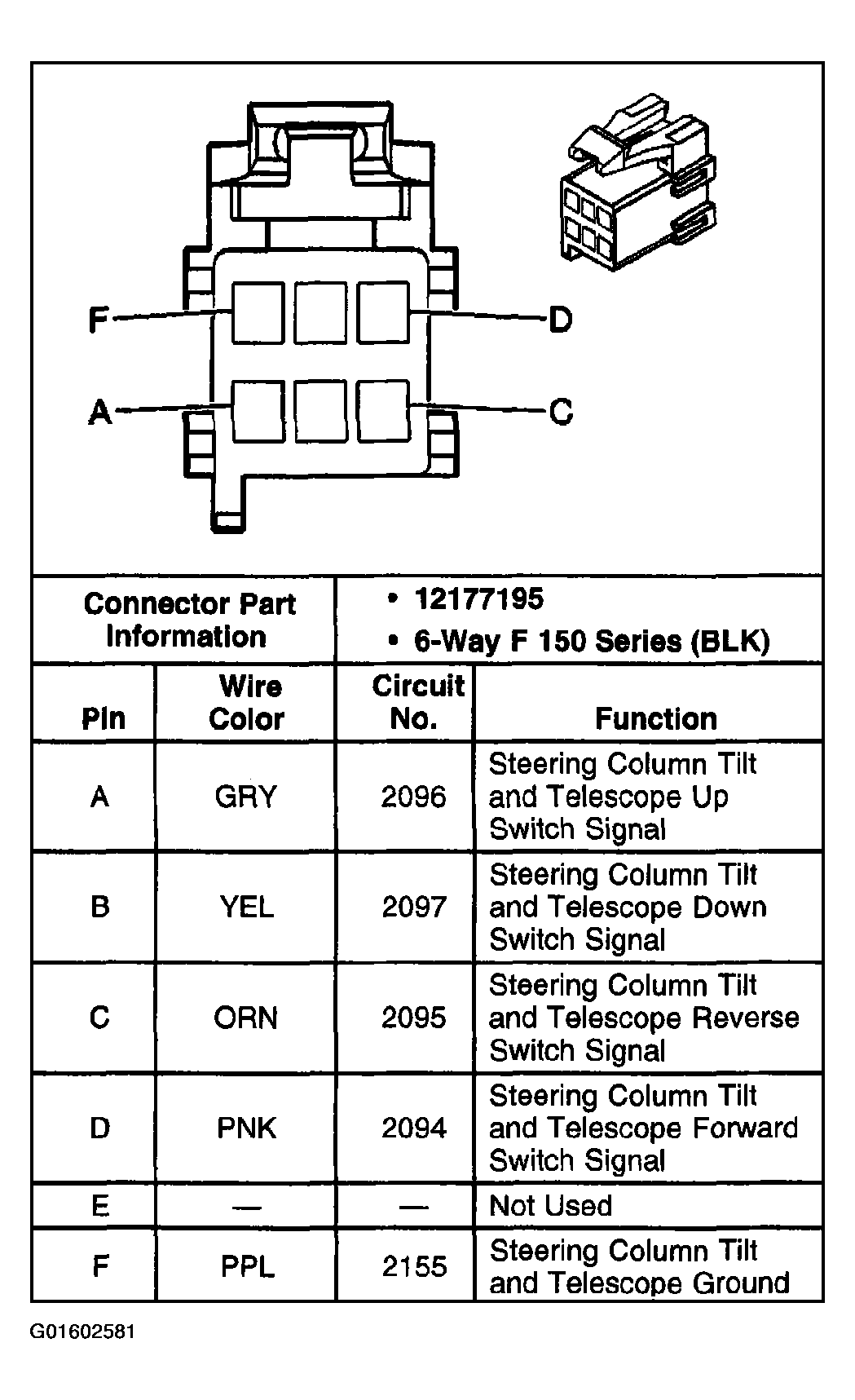

Fig 1: Steering Column Module C4 - Tilt/Telescope Switch
G01602581Courtesy of GENERAL MOTORS CORP.
