Stop Lamp/AT Shift Lock Control Switch Connector End View - C2
Stop Lamp/AT Shift Lock Control Switch Connector End View - C2

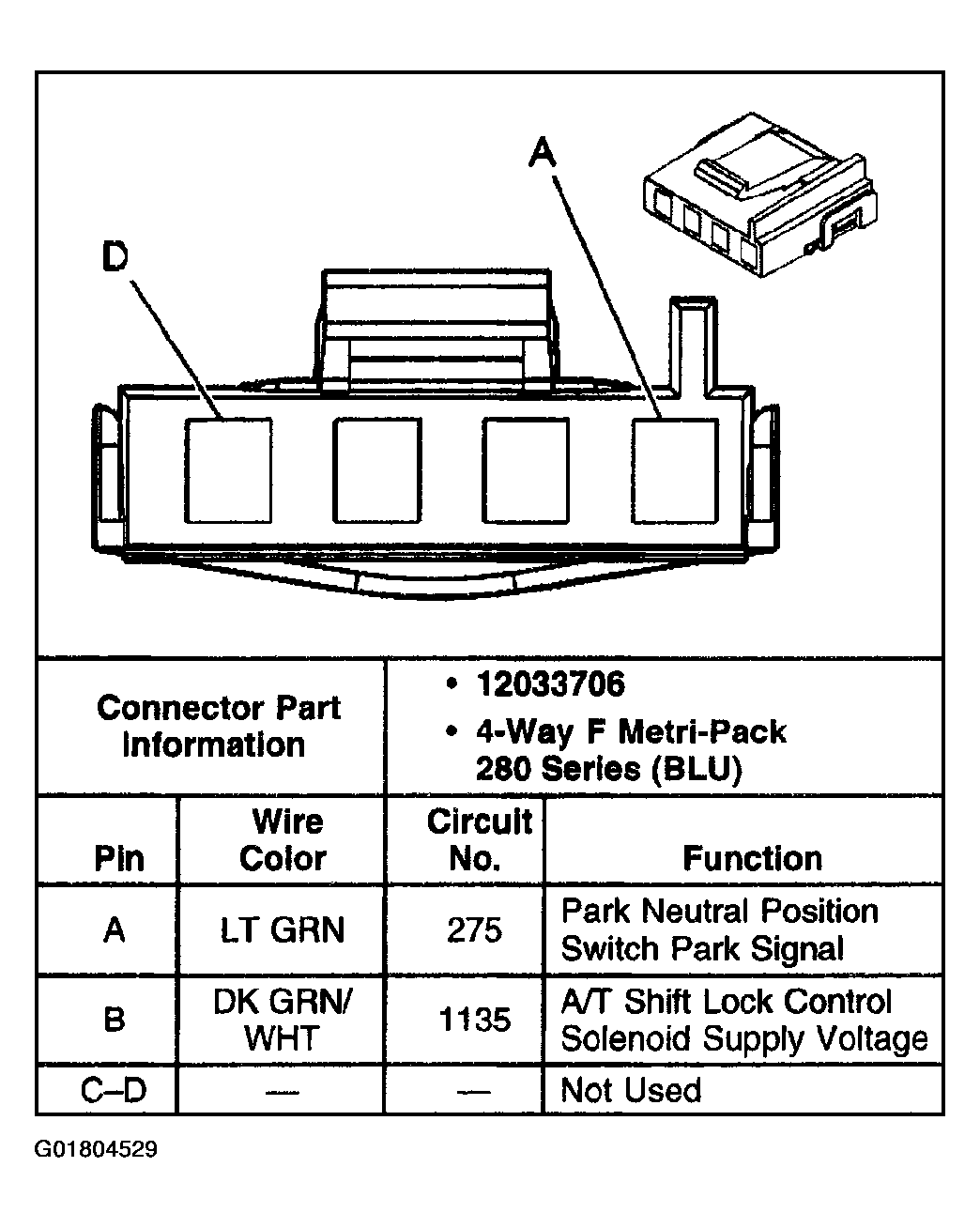

Fig 1: Stop Lamp/AT Shift Lock Control Switch - C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
