Sunroof Switch Connector End View
Sunroof Switch Connector End View

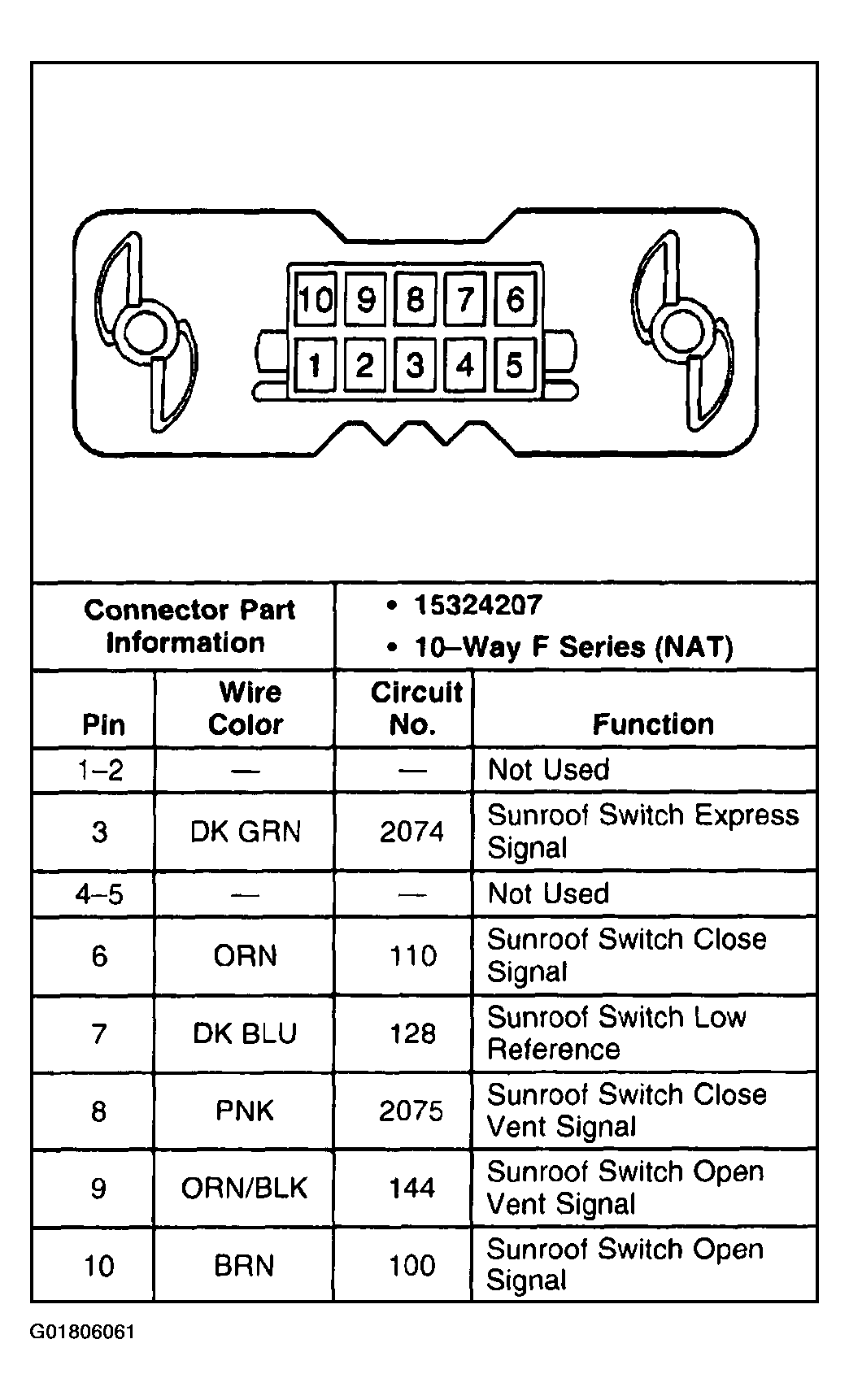

Fig 1: Sunroof Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
