Sunshade Module Connector End View
Sunshade Module Connector End View

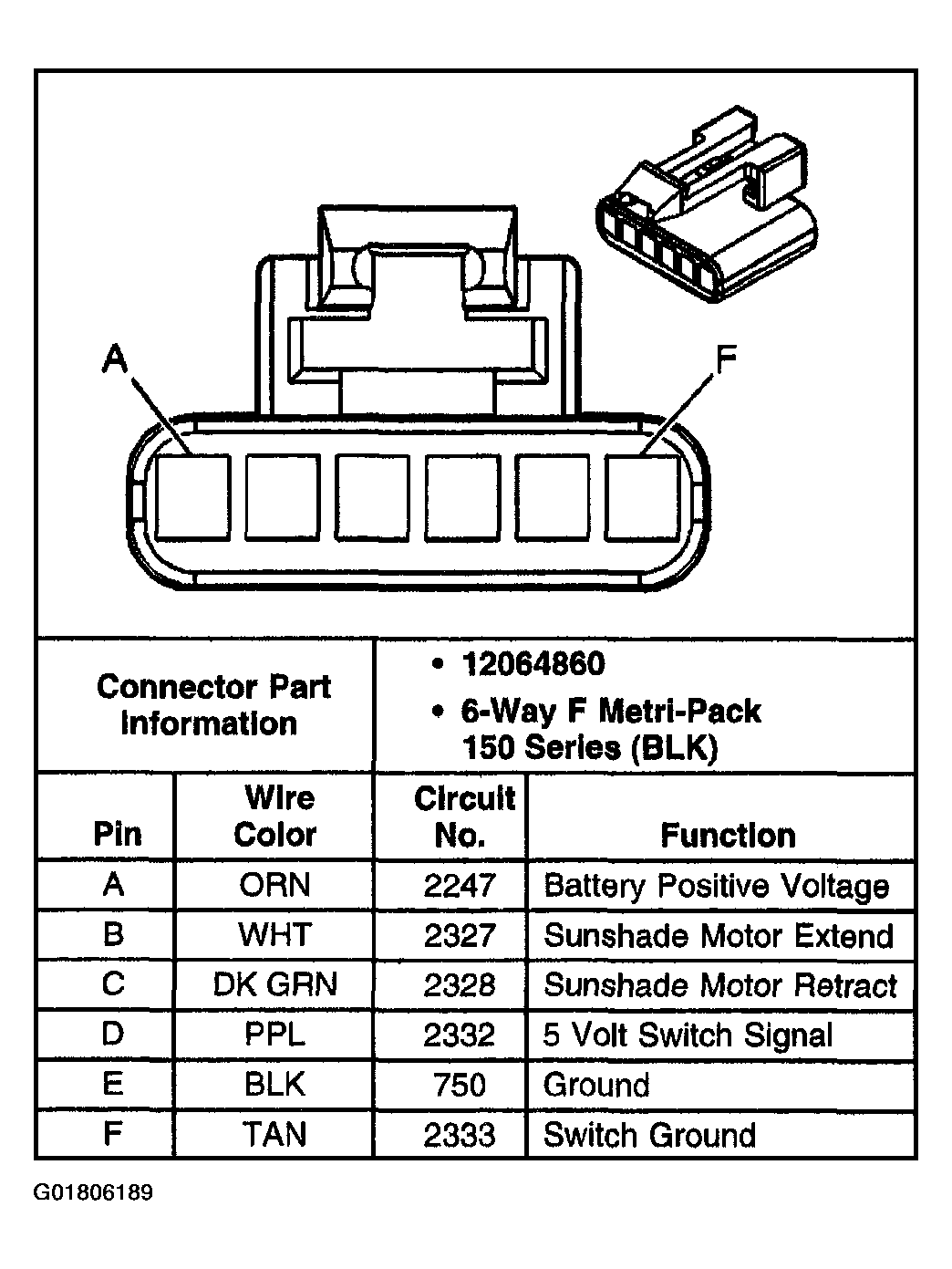

Fig 1: Sunshade Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
