Home › Cadillac › 2002 › DeVille Base › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Turn Signal/Hazard Flasher Module Connector End View (1 Of 2)

Turn Signal/Hazard Flasher Module Connector End View (1 Of 2)

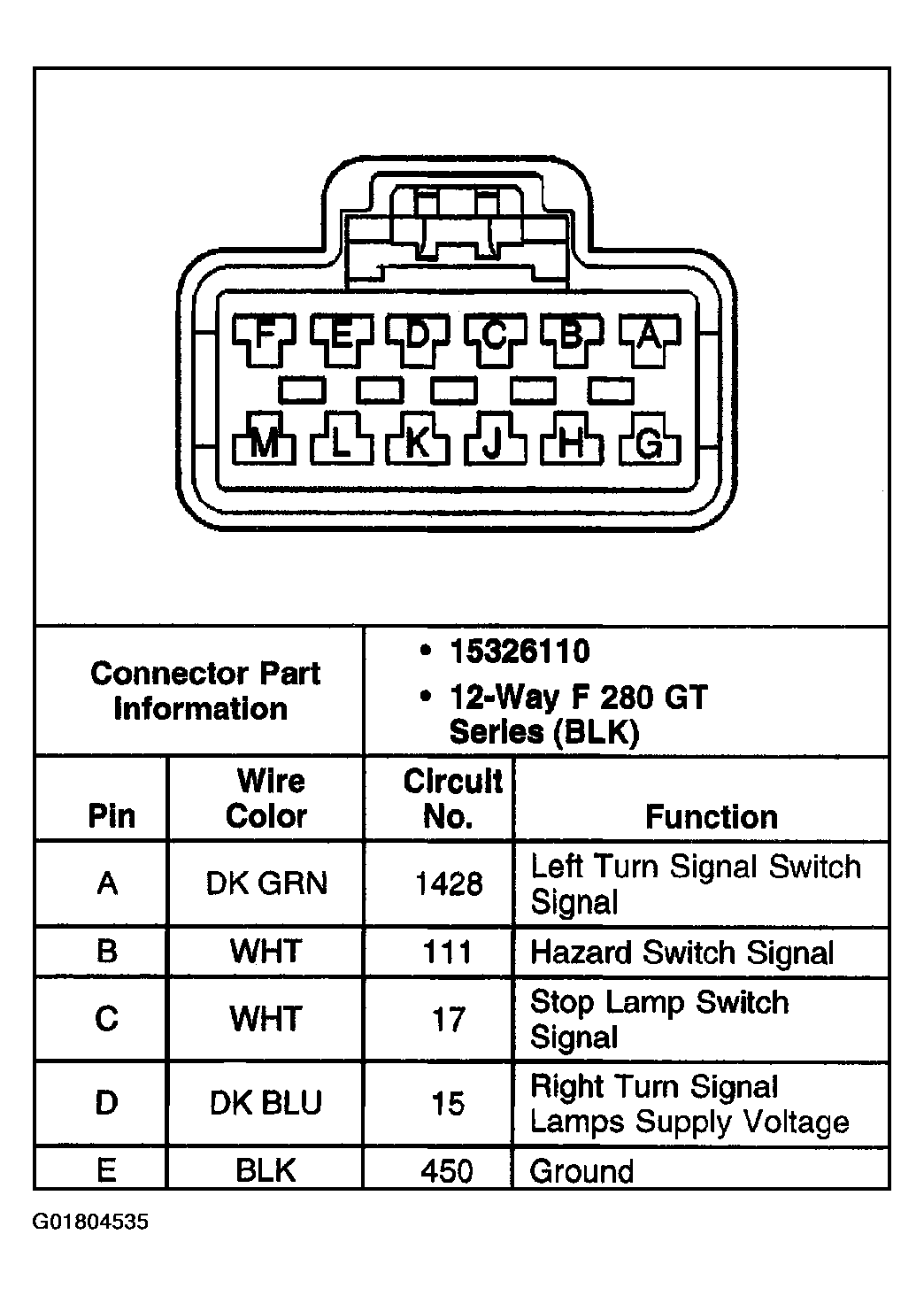

Fig 1: Turn Signal/Hazard Flasher Module (1 Of 2)
G01804535Courtesy of GENERAL MOTORS CORP.
