Window Motor Connector End View - Driver
Window Motor Connector End View - Driver

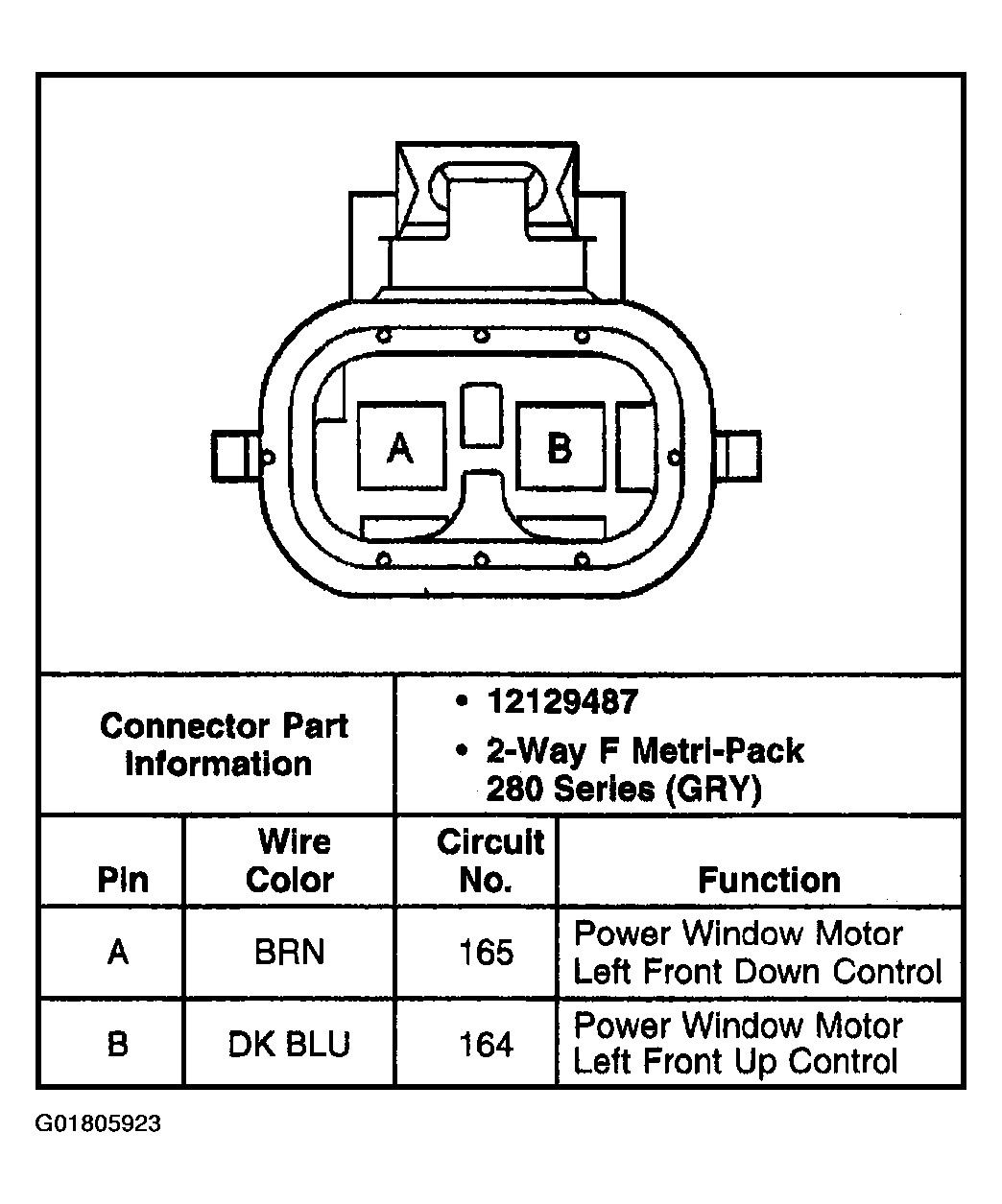

Fig 1: Window Motor - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
