Window Switch Connector End View - Front Passenger
Window Switch Connector End View - Front Passenger

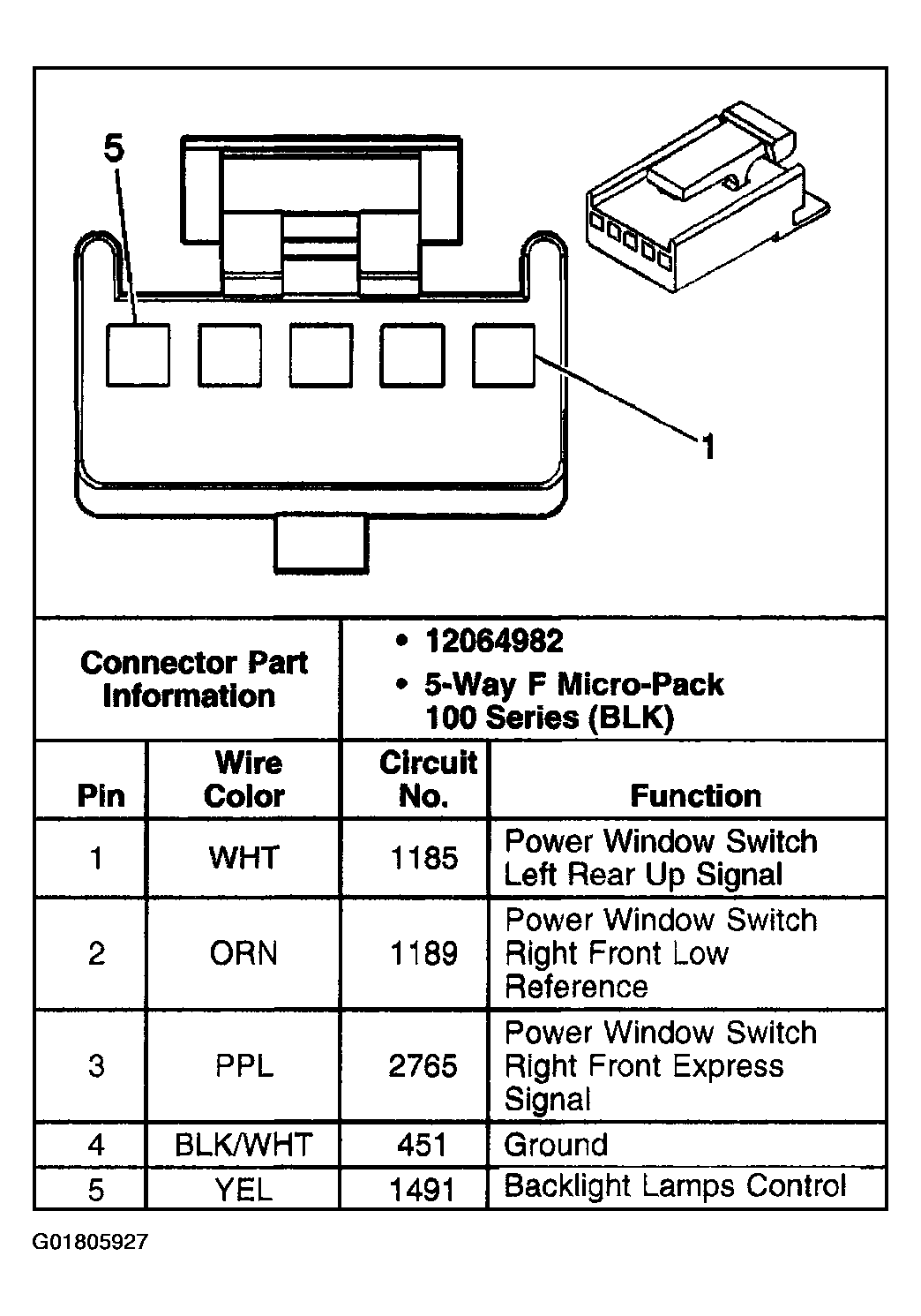

Fig 1: Window Switch - Front Passenger
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
