Window Switch Connector End View - RR

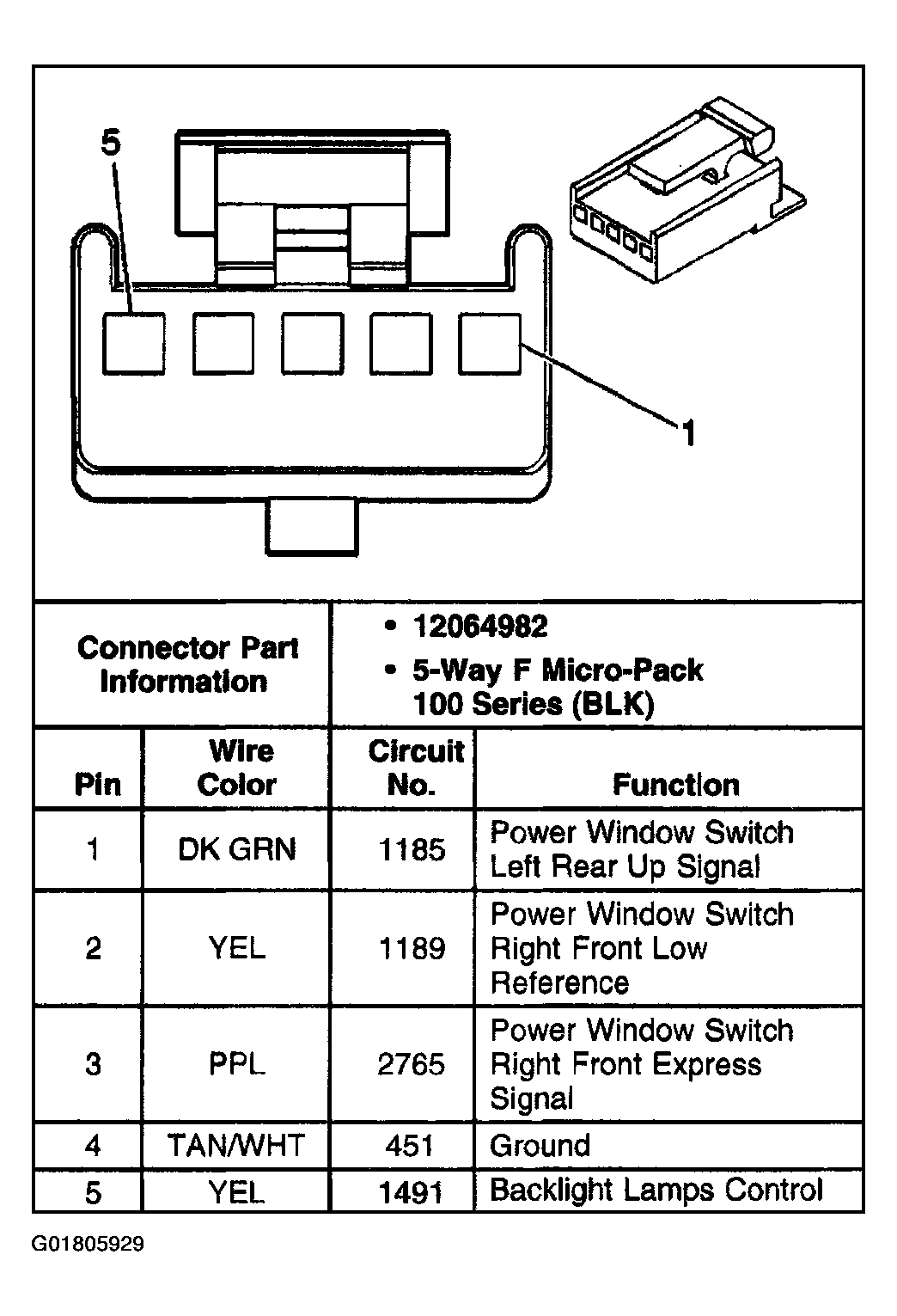

Fig 1: Window Switch - RR
G01805929Courtesy of GENERAL MOTORS CORP.
