Seat Belt Component Views

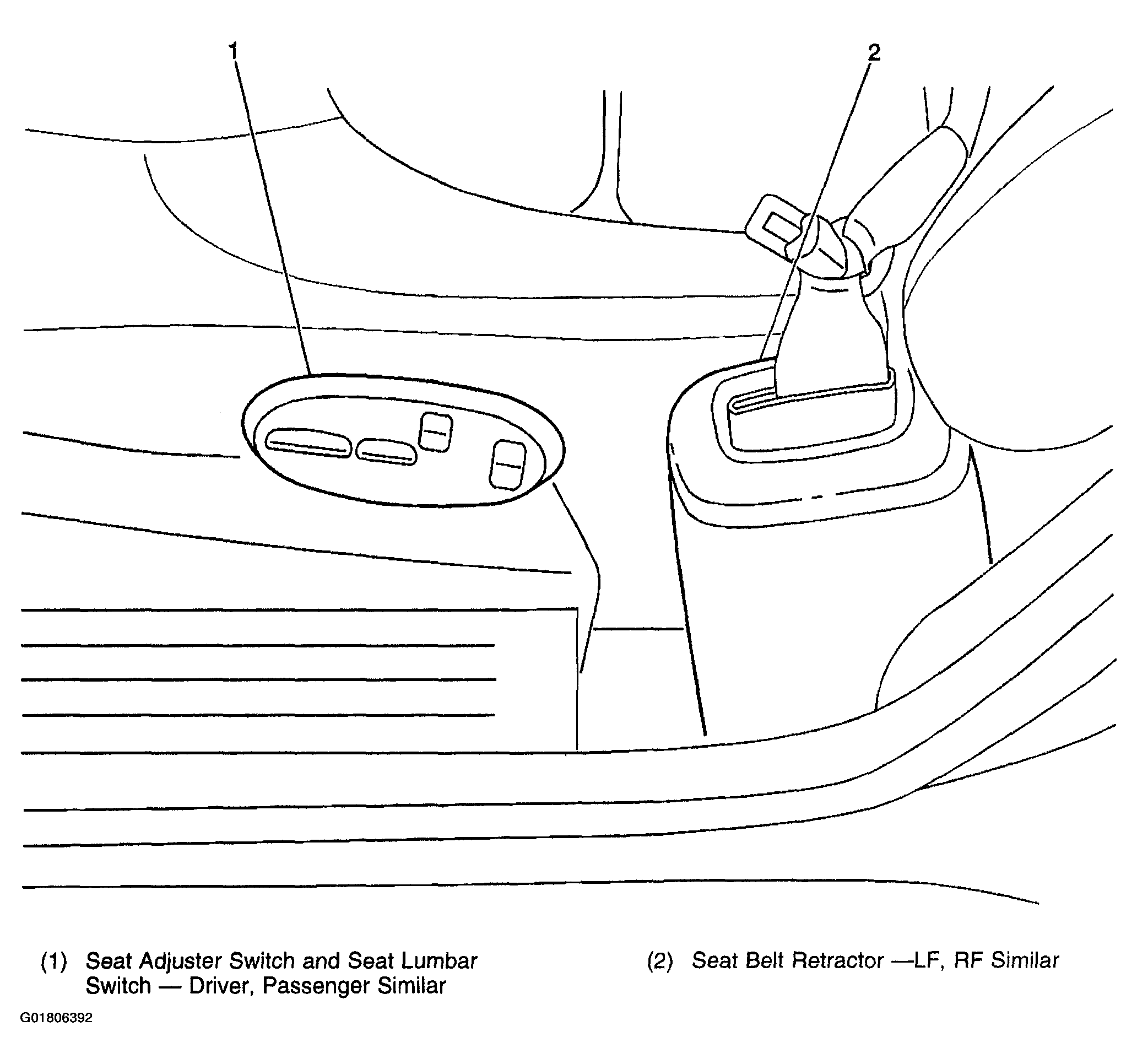

Fig 1: Left Front Seat, on the Left Side of the Seat Cushion

Courtesy of GENERAL MOTORS CORP.

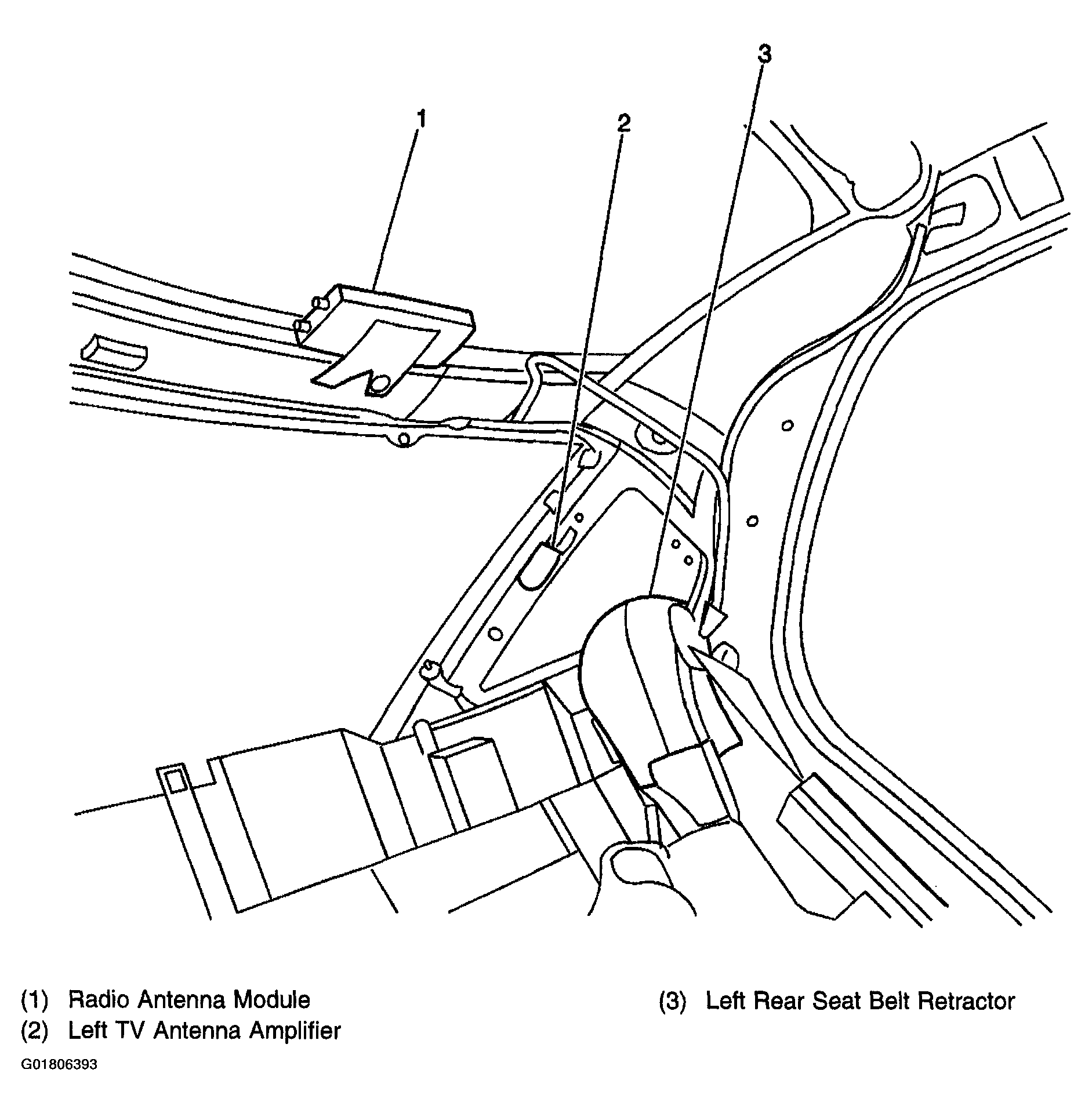

Fig 2: Left Rear Corner of the Passenger Compartment, Above the Rear Seat

Courtesy of GENERAL MOTORS CORP.

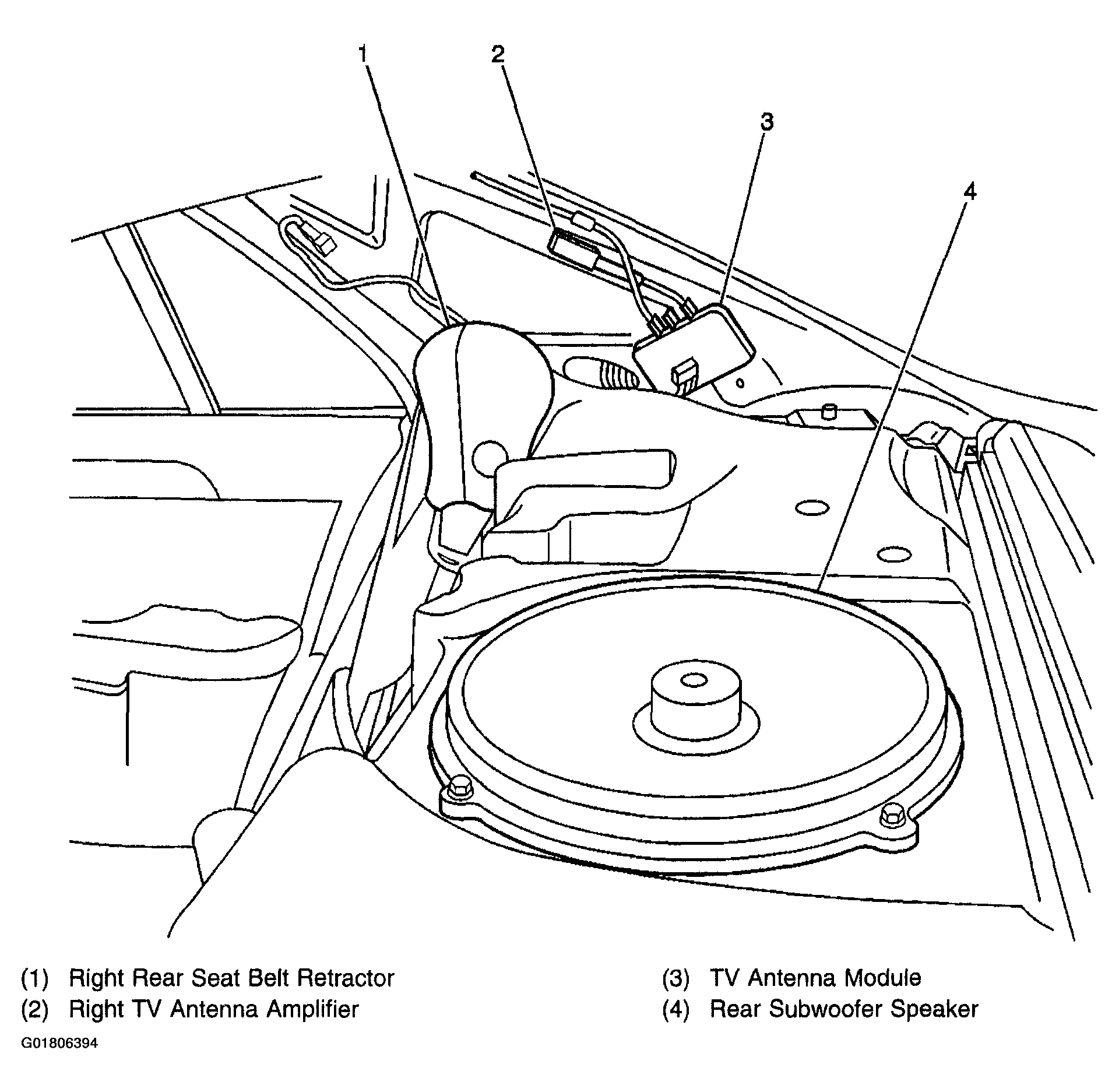

Fig 3: Right Corner of the Passenger Compartment, Above the Rear Seat

Courtesy of GENERAL MOTORS CORP.

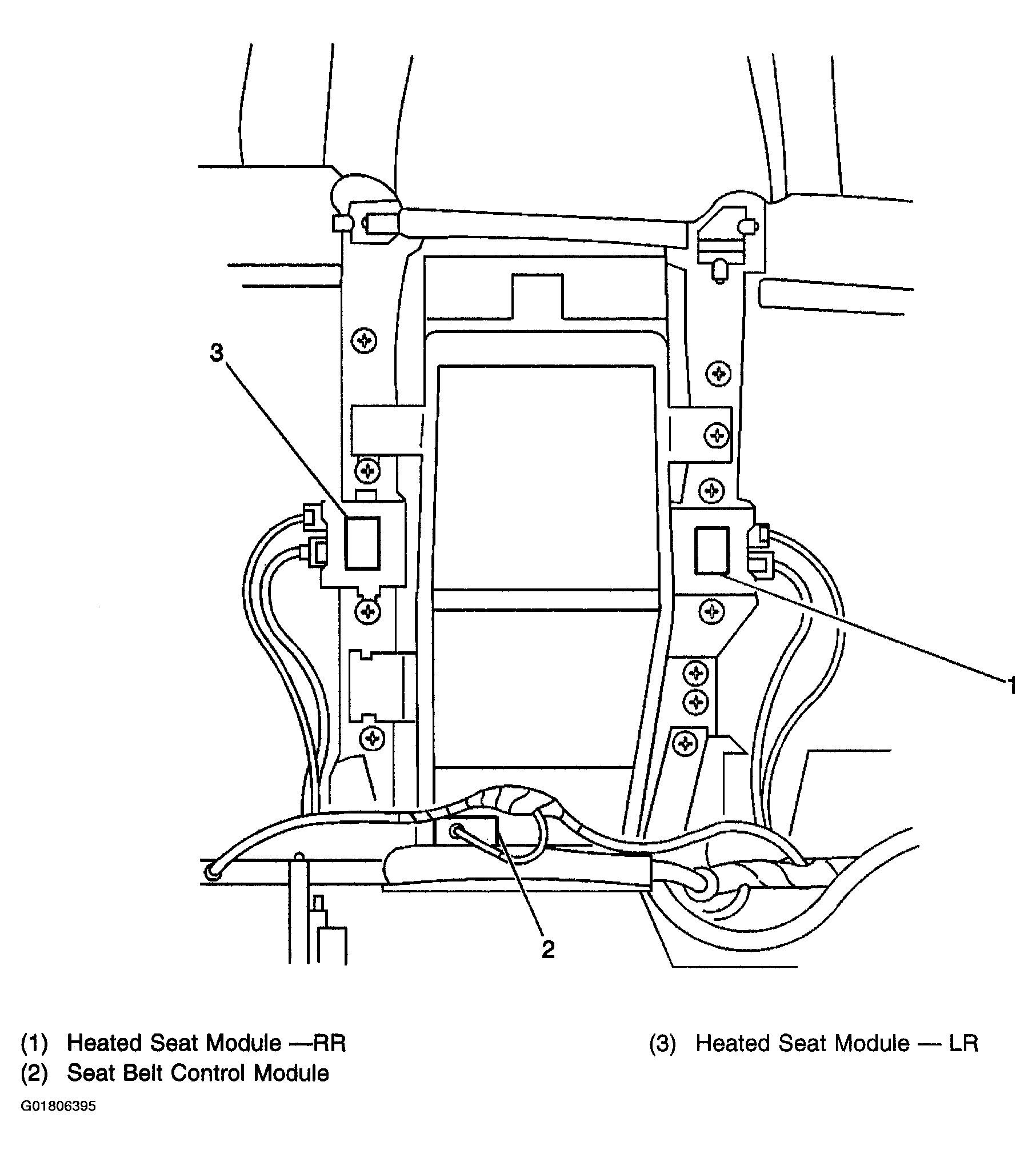

Fig 4: Center Rear of the Passenger Compartment, in the Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

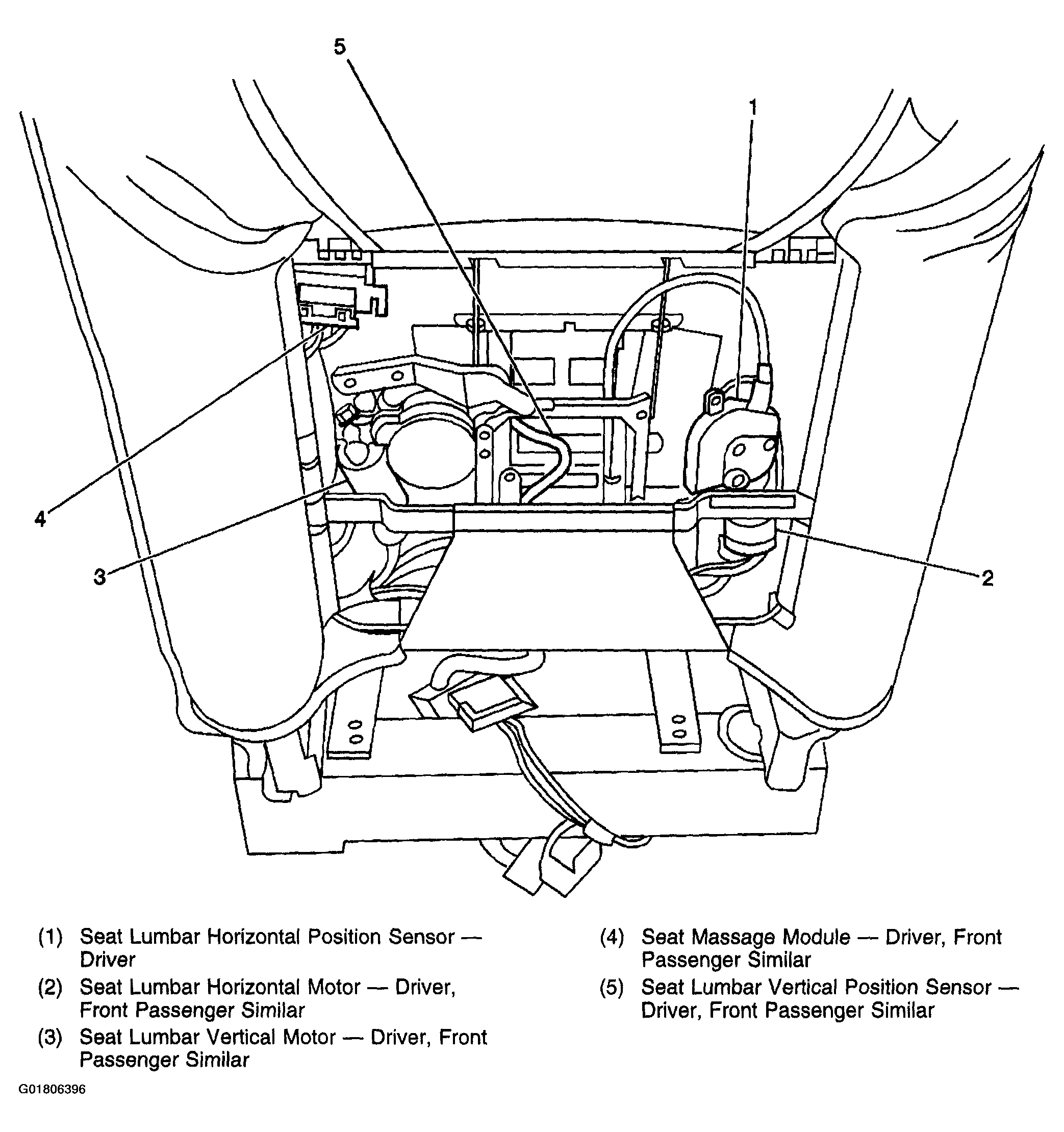

Fig 5: Left Front of the Passenger Compartment, Under the Left Front Seat

Courtesy of GENERAL MOTORS CORP.
