Scan Tool Data List

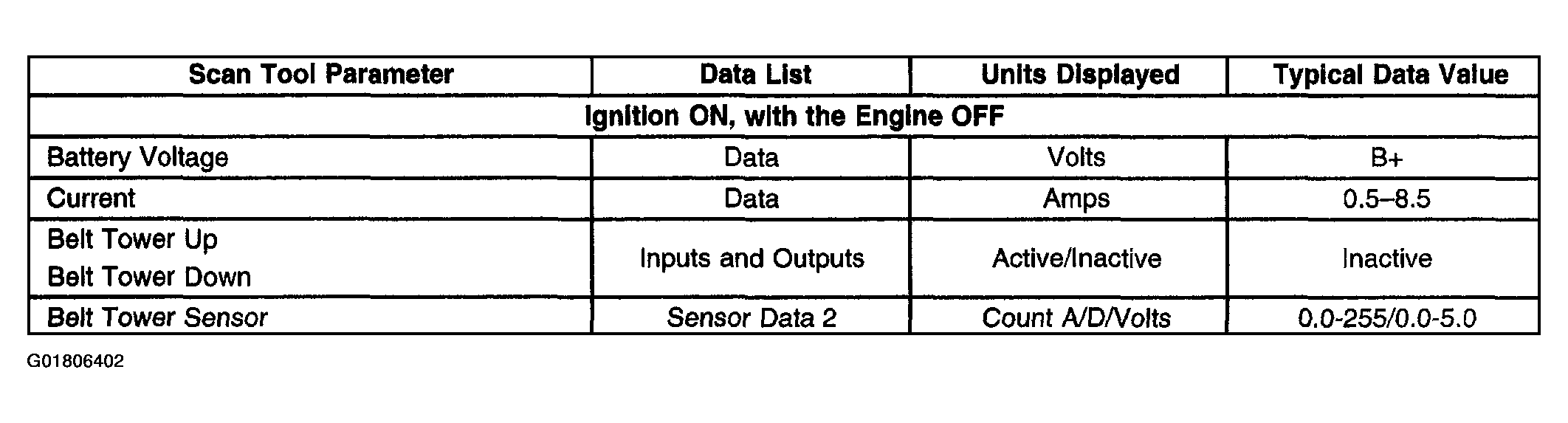

Fig 1: Memory Seat Module (MSM) Data List
G01806402Courtesy of GENERAL MOTORS CORP.

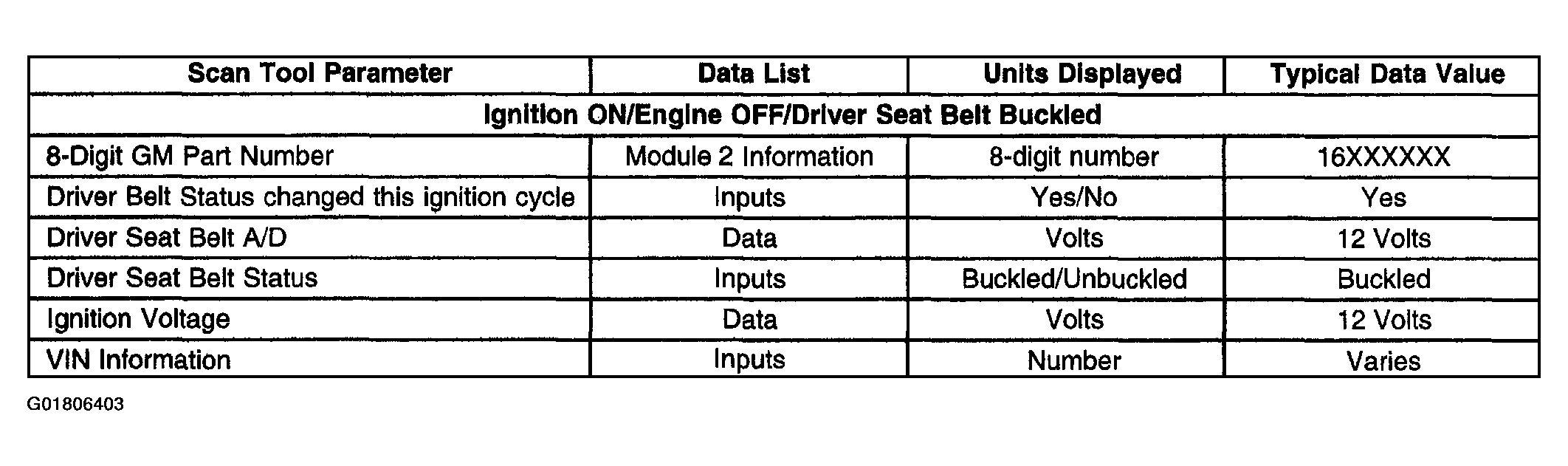

Fig 2: SIR Data List
G01806403Courtesy of GENERAL MOTORS CORP.
