Installation Procedure

  1. Install the rack and pinion to the vehicle.
  2. Raise the rear portion of the frame.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the frame mounting bolts.

    Tighten

    Tighten the frame mounting bolts to 192 N.m (142 lb ft).

    Fig 1: Installing Rack & Pinion
    G01602534Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission mount mounting nuts (1).

    Tighten

    Tighten the transmission mounting nuts (1) to 75 N.m (55 lb ft).

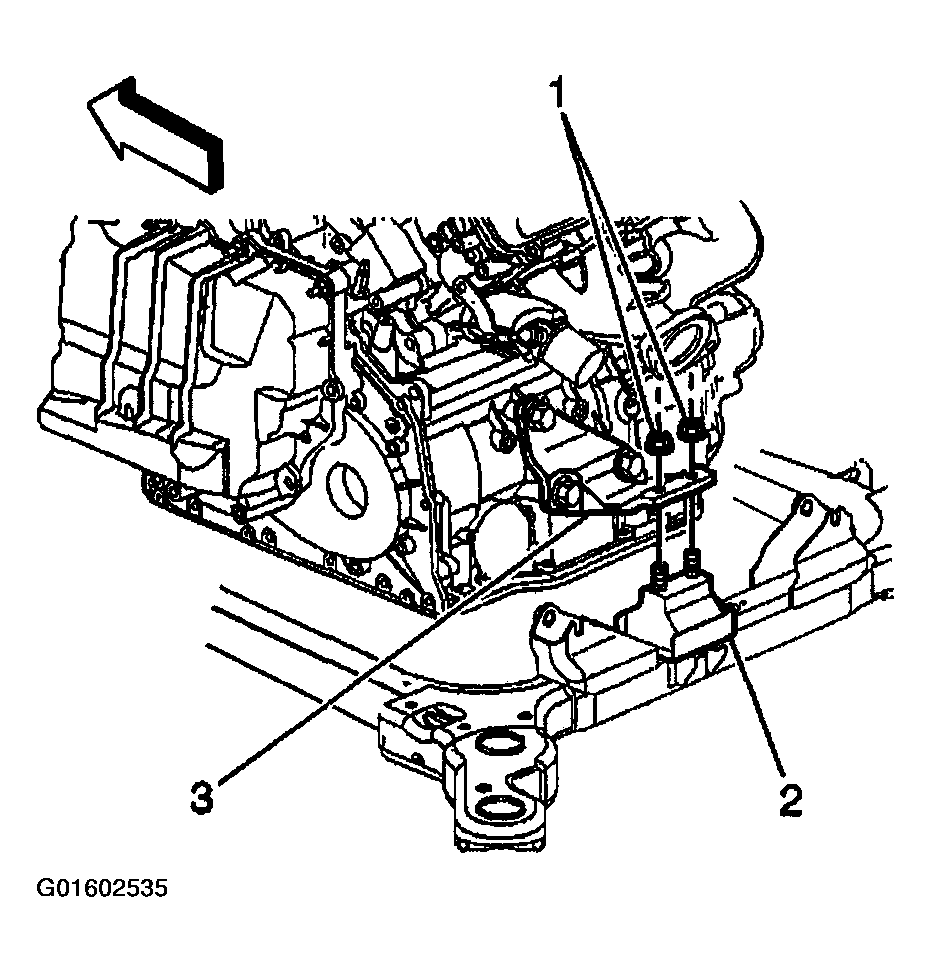

    Fig 2: Installing Transmission Mount Mounting Nuts
    G01602535Courtesy of GENERAL MOTORS CORP.
  5. Install the rack and pinion mounting bolts.

    Tighten

    Tighten the rack and pinion mounting bolts to 95 N.m (70 lb ft).

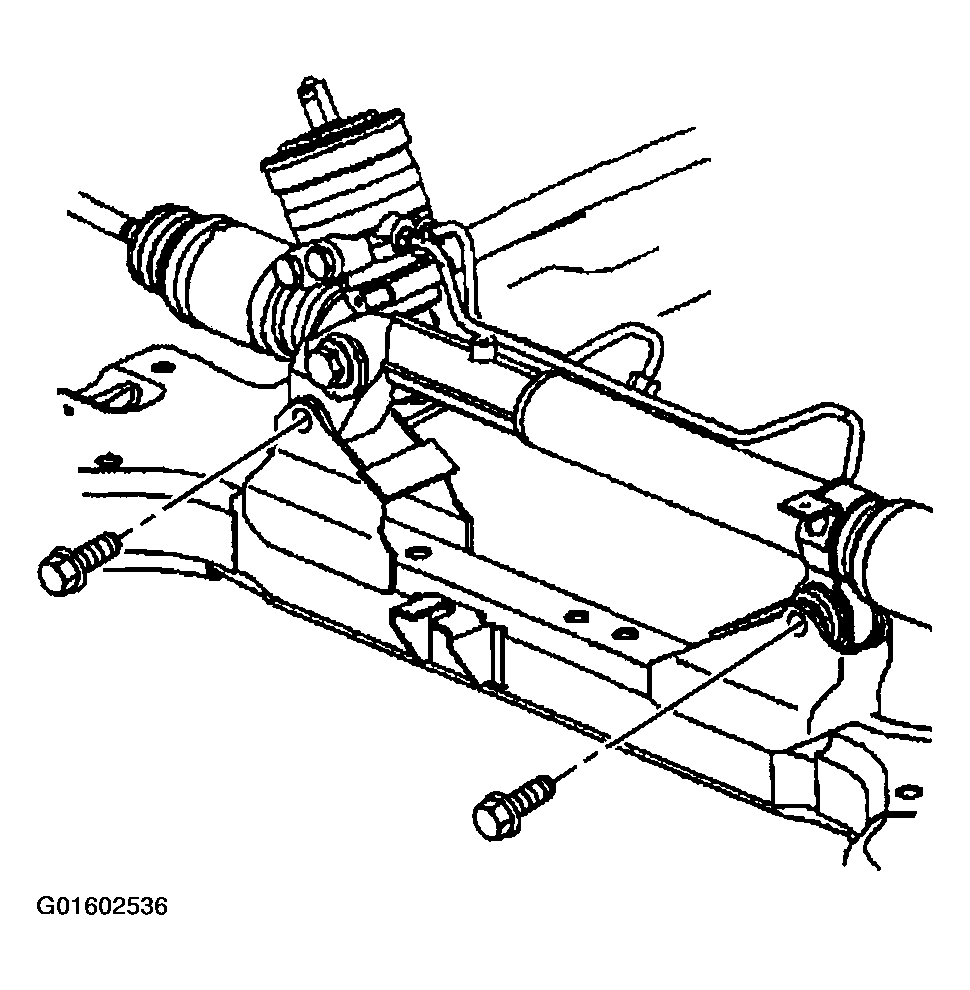

    Fig 3: Installing Rack & Pinion Mounting Bolts
    G01602536Courtesy of GENERAL MOTORS CORP.
  6. Install the power steering pressure and return hoses to the power steering gear.

    Tighten

    Tighten the power steering pressure and return hoses to 27 N.m (20 lb ft).

  7. Remove the drain pan from under the vehicle.
  8. Connect the variable effort steering electrical connector.
  9. Install the power steering gear heat shield. Refer to Power Steering Gear Heat Shield Replacement .

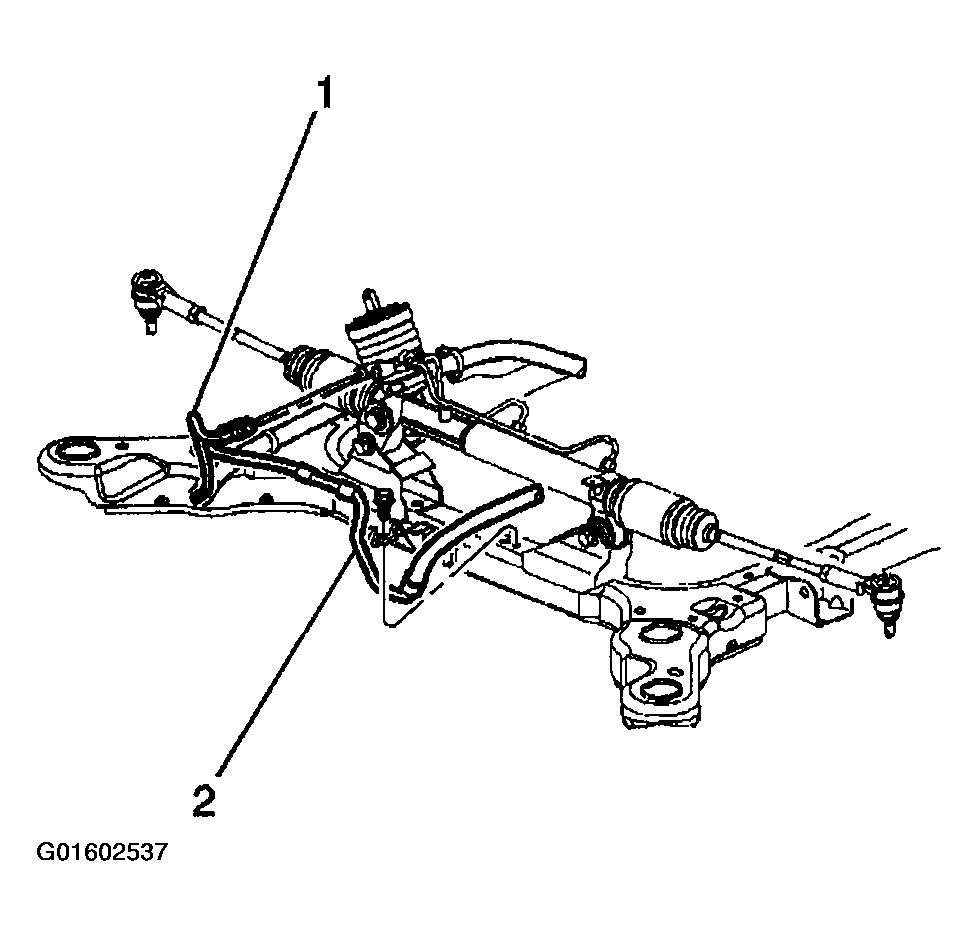

    Fig 4: Installing Power Steering Pressure & Return Hoses
    G01602537Courtesy of GENERAL MOTORS CORP.
  10. Install the outer tie rods to the steering knuckles.
  11. Install the outer tie rods retaining nuts.

    Tighten

    • Tighten the outer tie rod retaining nut (2) to 47 N.m (35 lb ft).
    • Tighten the outer tie rod retaining nut (2) up to 1/6 additional turn, or 70 N.m (52 lb ft) maximum.

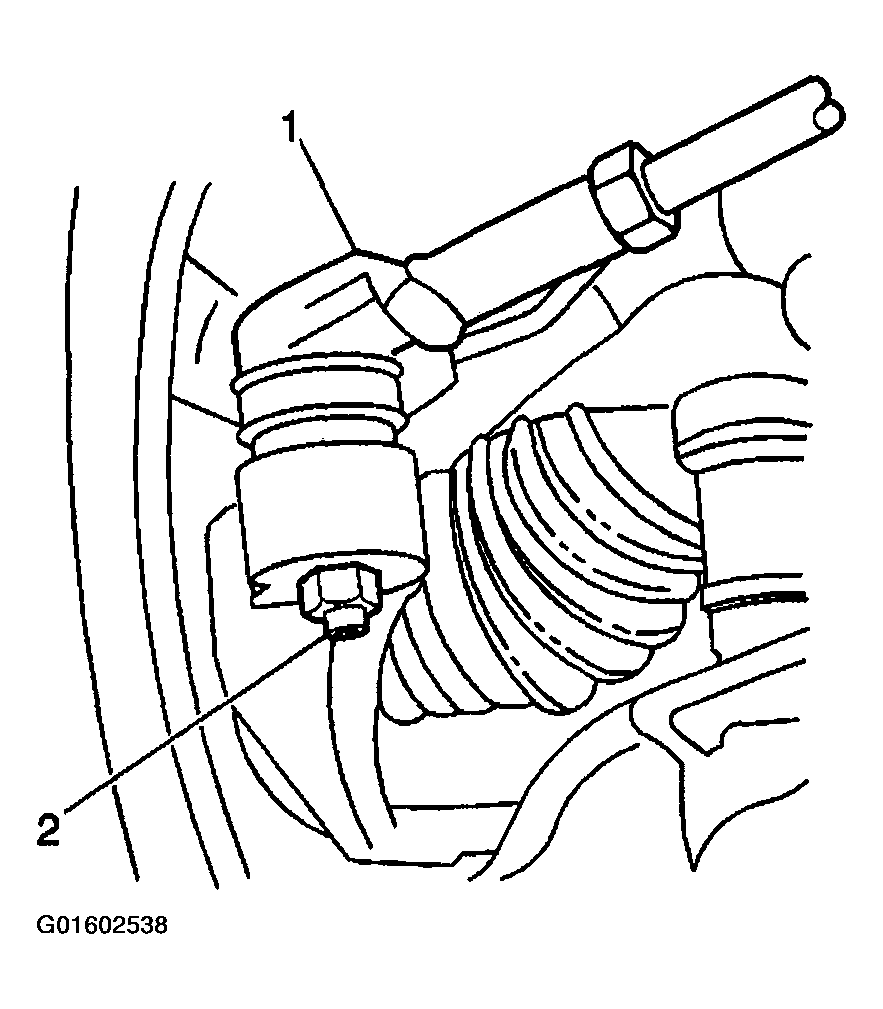

    Fig 5: Installing Outer Tie Rods & Retaining Nuts
    G01602538Courtesy of GENERAL MOTORS CORP.
  12. Install the intermediate shaft to the steering gear.
  13. Install the intermediate shaft pinch bolt.

    Tighten

    Tighten the intermediate shaft pinch bolt to 45 N.m (33 lb ft).

  14. Install the tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  15. Lower the vehicle.

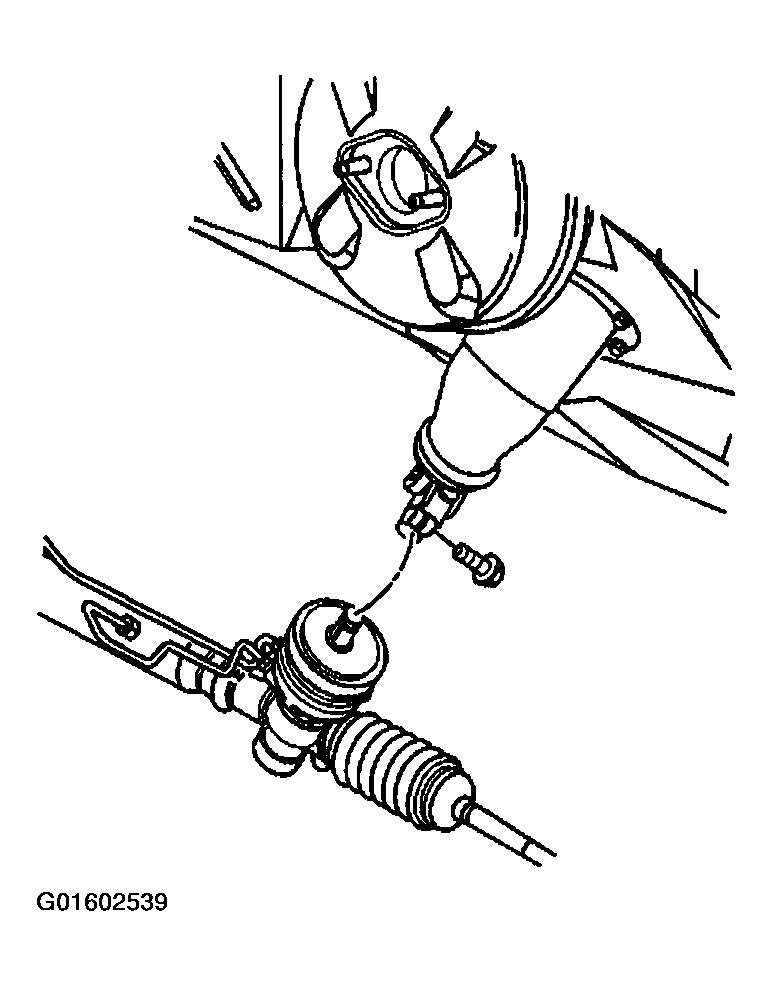

    Fig 6: Installing Intermediate Shaft & Pinch Bolt
    G01602539Courtesy of GENERAL MOTORS CORP.
  16. Remove J 42640  from the steering column access hole.
  17. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  18. Adjust front toe. Refer to FRONT TOE ADJUSTMENT .

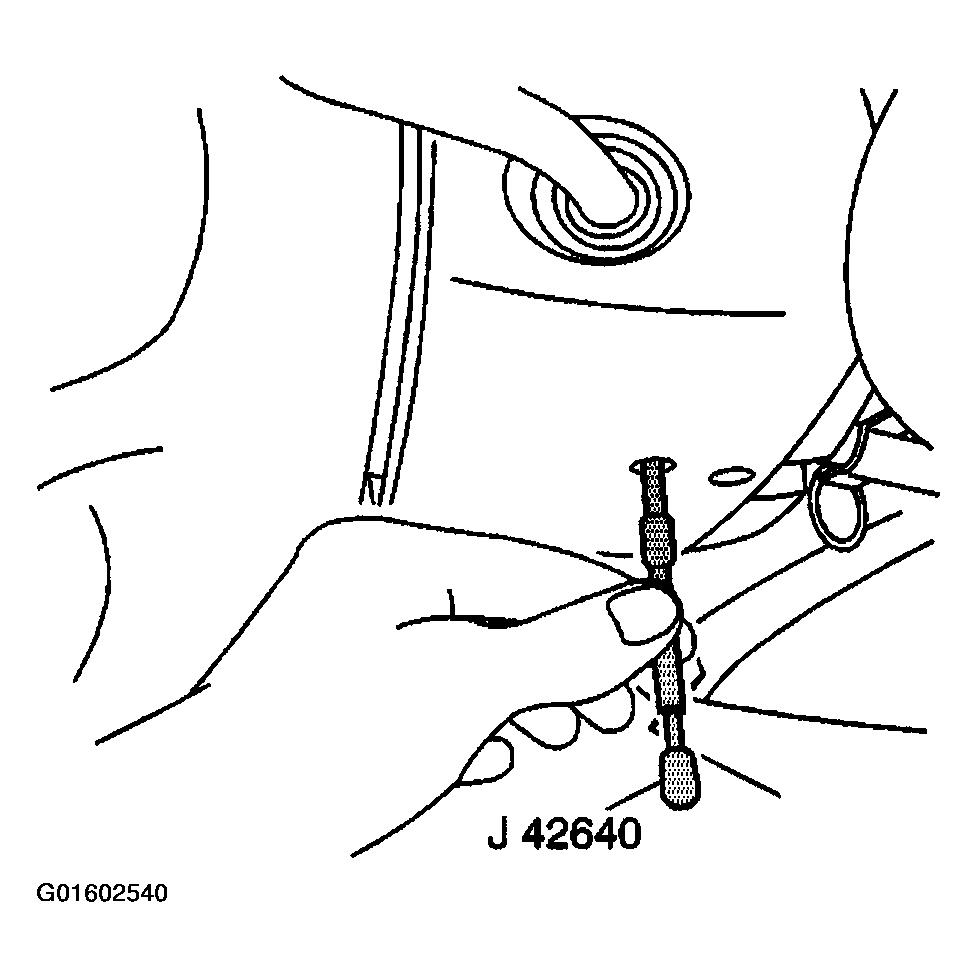

    Fig 7: Removing J 42640 From Steering Column Access Hole
    G01602540Courtesy of GENERAL MOTORS CORP.
