Installation Procedure

Using J 25033-C install the power steering pulley to the power steering pump.

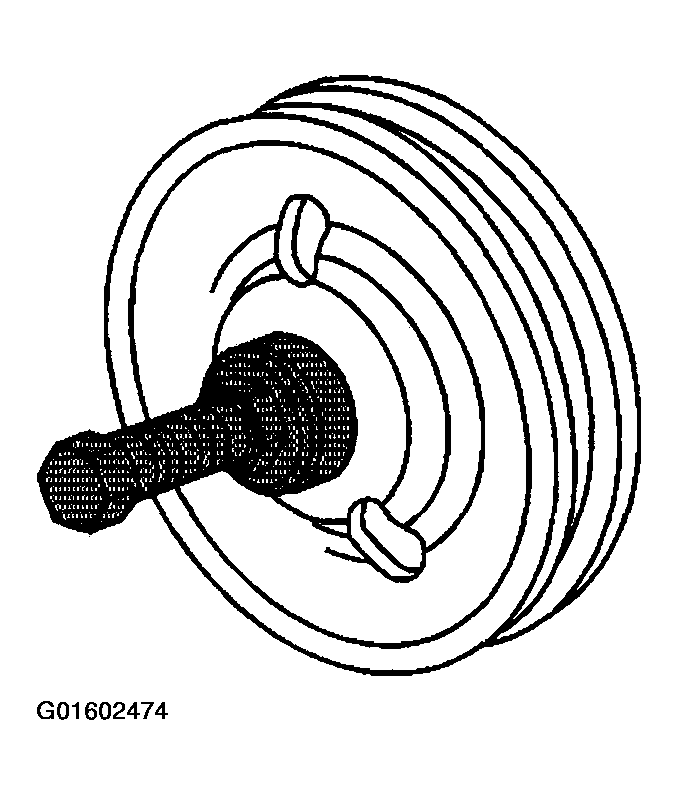

Fig 1: Installing Power Steering Pulley
Courtesy of GENERAL MOTORS CORP.
Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in), plus or minus.
Install the drive belt. Refer to DRIVE BELT REPLACEMENT .

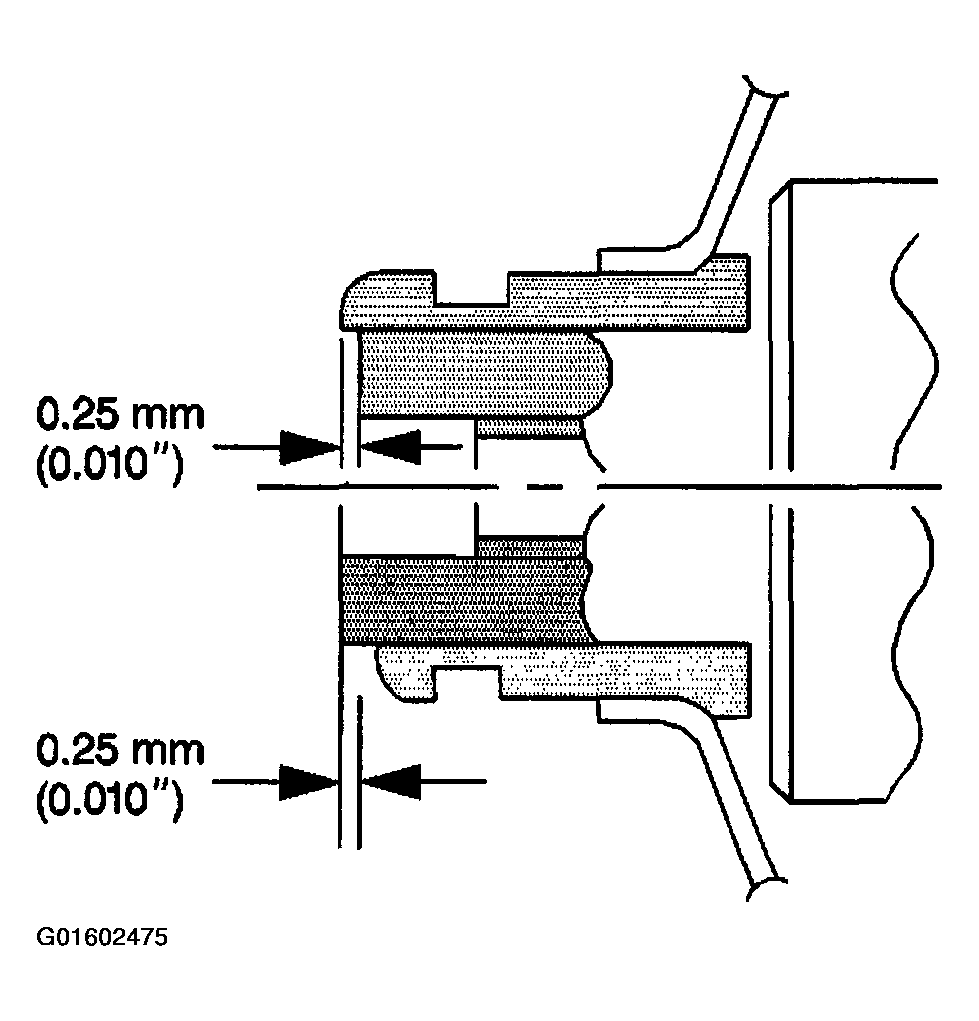

Fig 2: Ensuring Axial Tolerance Of Power Steering Pulley
Courtesy of GENERAL MOTORS CORP.
Install the surge tank (1) to the vehicle.
CAUTION: Refer to FASTENER NOTICE .
Install the surge tank retaining bolt (3) and nut (2).
Tighten

Tighten the surge tank retaining bolt (3) and nut (2) to 6 N.m (53 lb in).

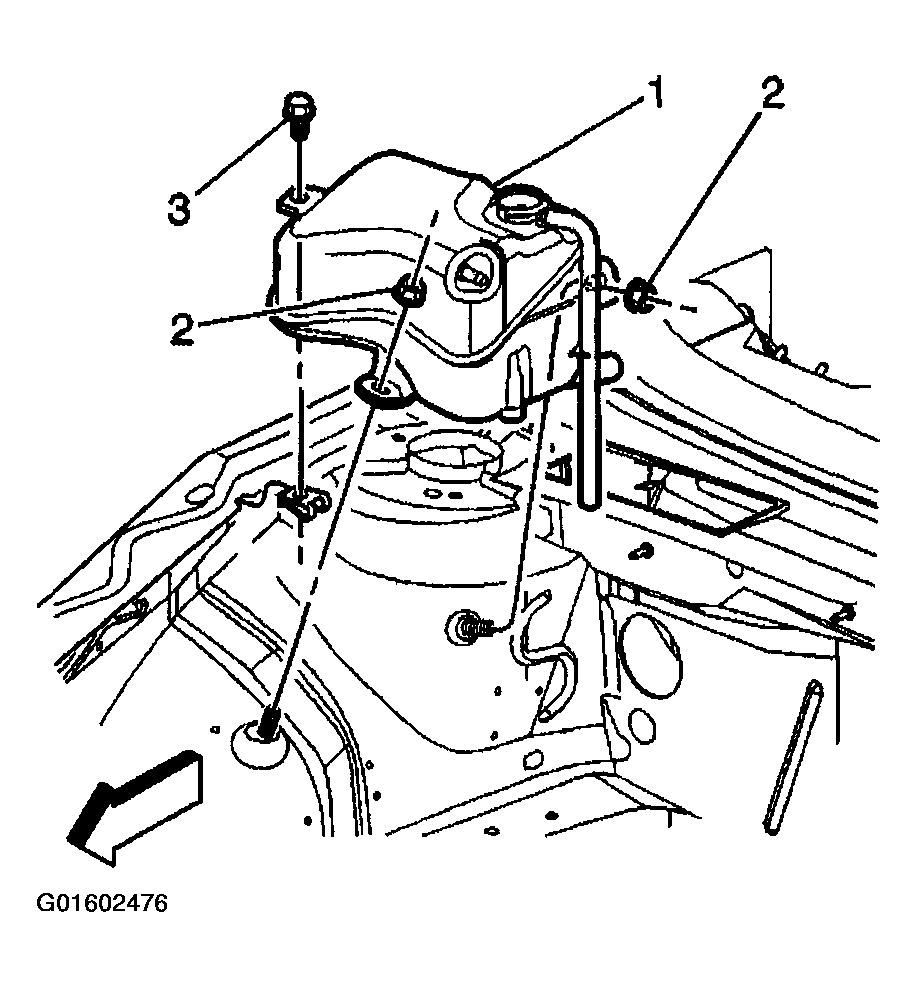

Fig 3: Installing Surge Tank
Courtesy of GENERAL MOTORS CORP.
Install the secondary AIR relay bracket to the mounting studs.
Install the secondary AIR relay bracket retaining nuts.
Tighten

Tighten the secondary AIR relay bracket retaining nuts (2) to 6 N.m (53 lb in).

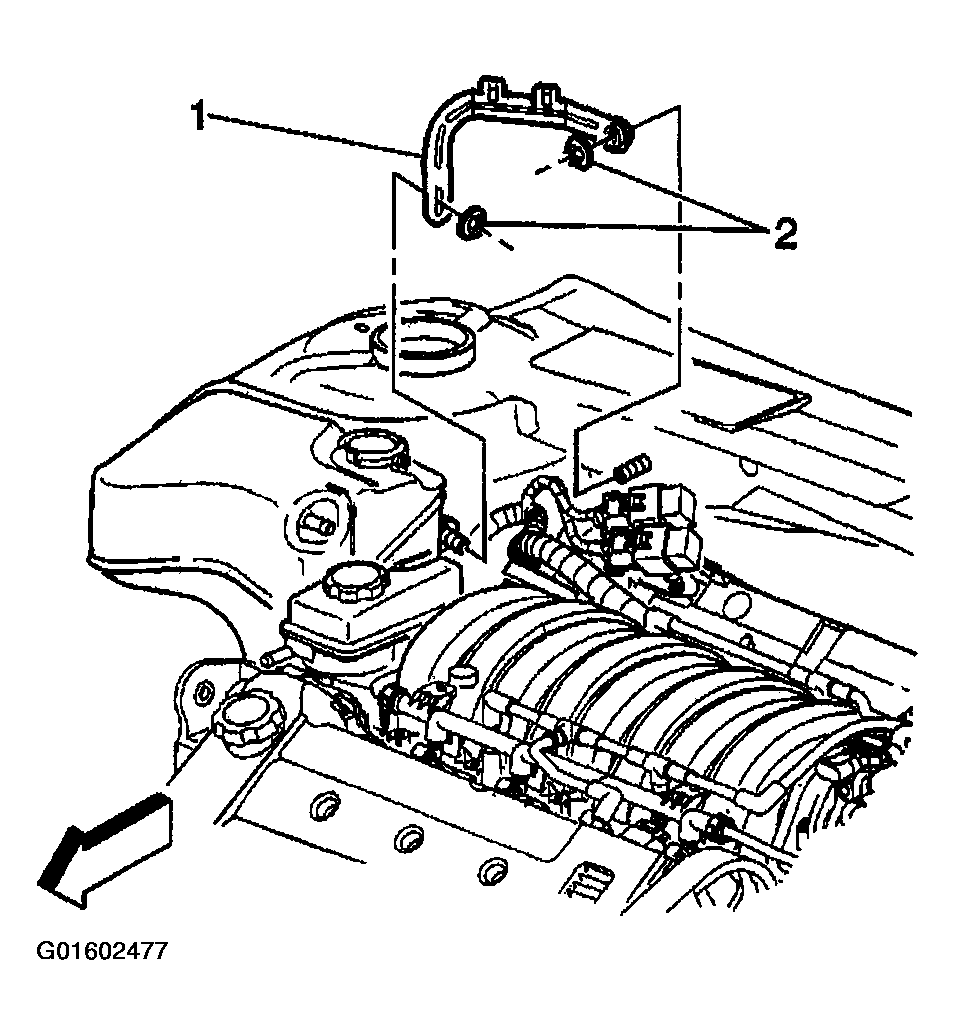

Fig 4: Installing Secondary AIR Relay Bracket
Courtesy of GENERAL MOTORS CORP.
