Removal Procedure

  1. Remove the secondary AIR relay bracket retaining nuts (2).
  2. Remove the secondary AIR relay bracket (1) from the mounting studs.

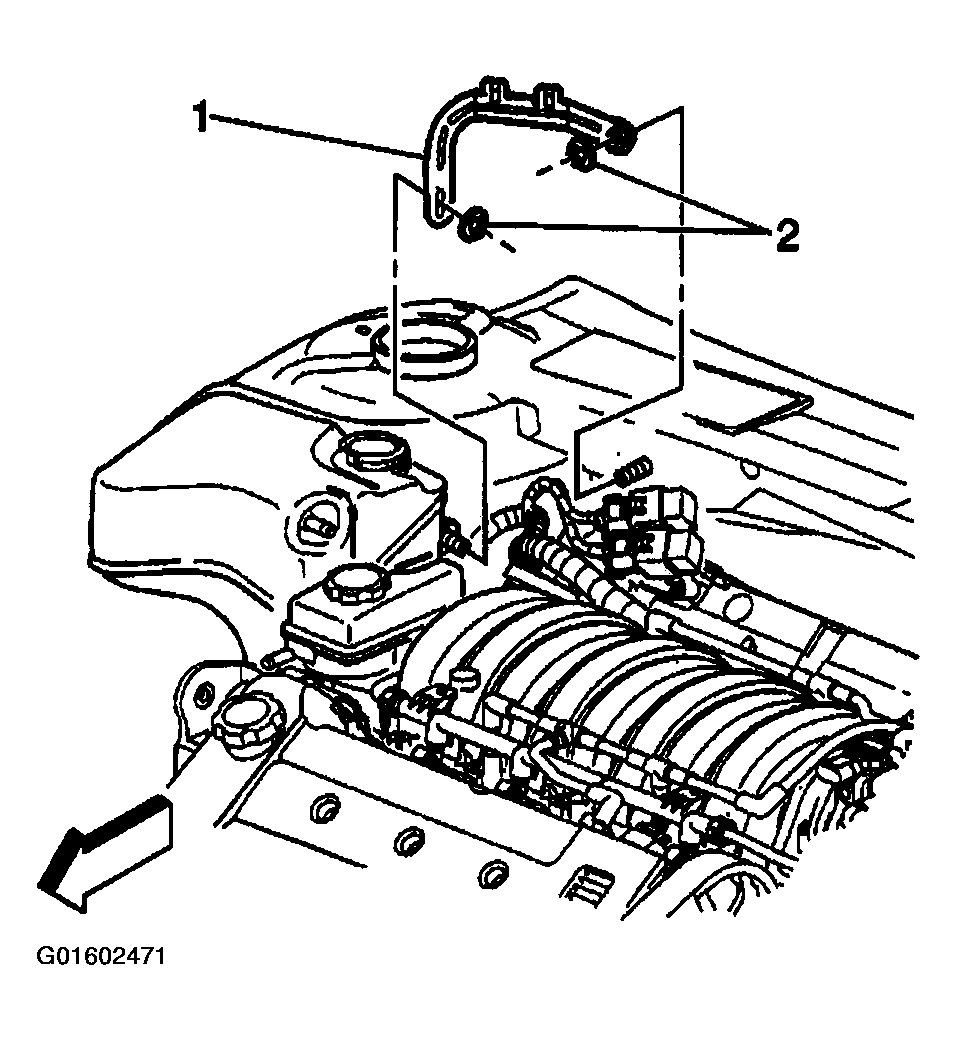

    Fig 1: Removing Secondary AIR Relay Bracket
    G01602471Courtesy of GENERAL MOTORS CORP.
  3. Remove the surge tank retaining nut (2) and bolt (3).
  4. Position and support the surge tank out of the way.

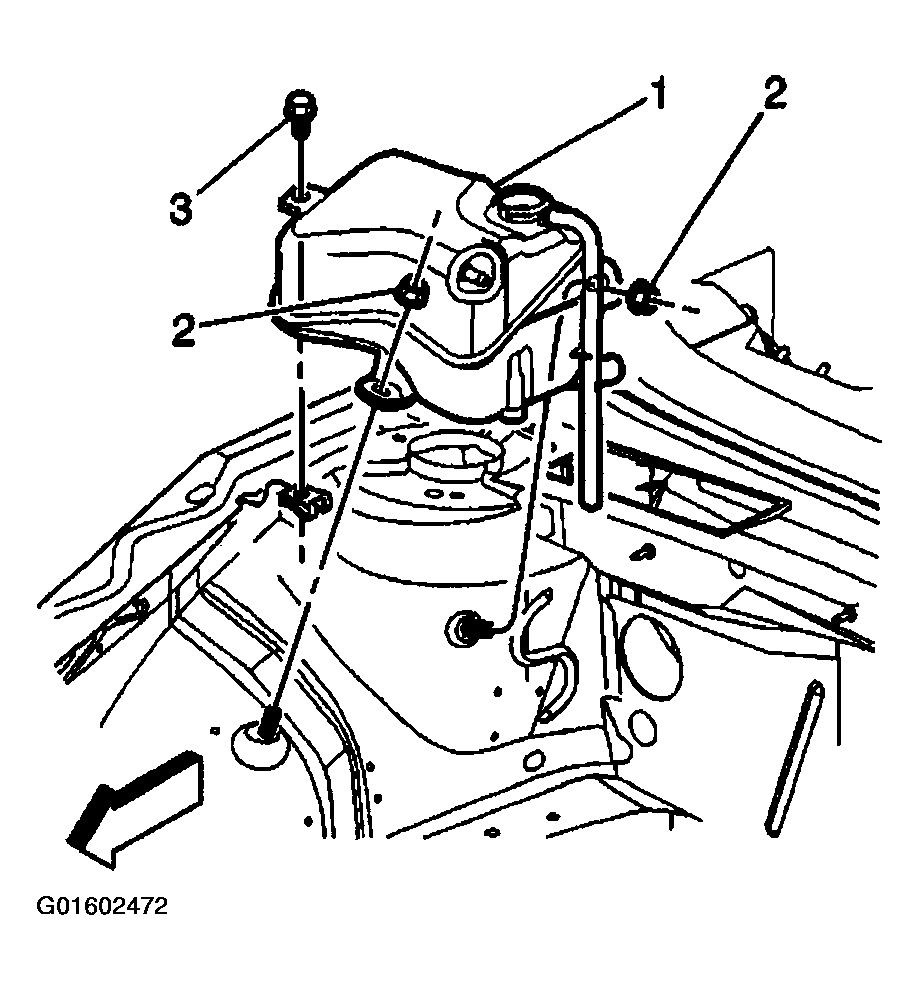

    Fig 2: Removing Surge Tank Retaining Nut & Bolt
    G01602472Courtesy of GENERAL MOTORS CORP.
  5. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .
  6. Using J 25034-C  remove the power steering pump pulley.

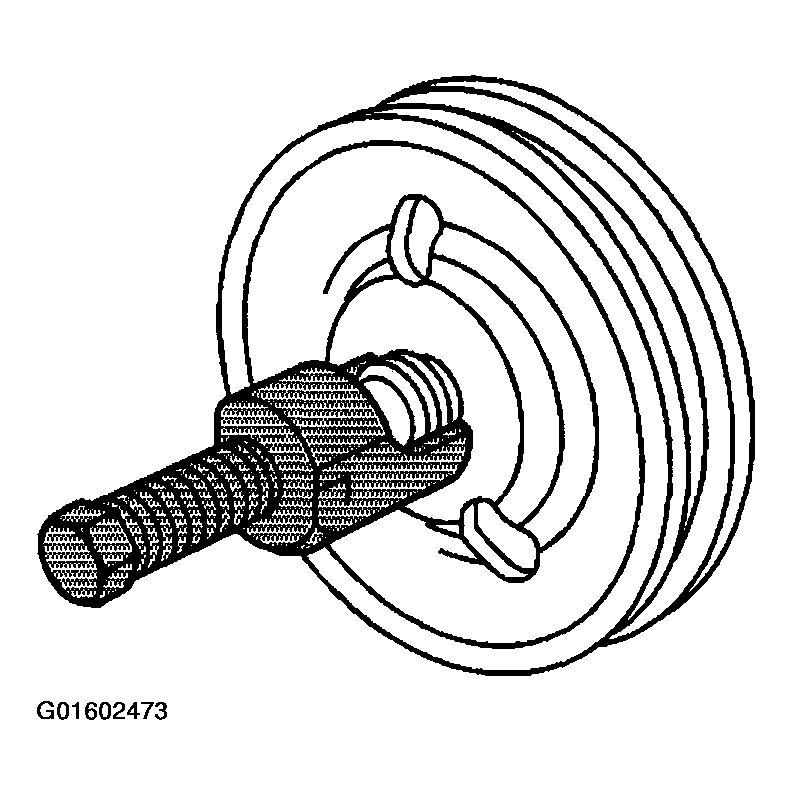

    Fig 3: Removing Power Steering Pump Pulley
    G01602473Courtesy of GENERAL MOTORS CORP.
