Installation Procedure

CAUTION: Refer to FASTENER NOTICE .
  1. Install the linear shift assembly and the tapping screws.

    Tighten

    Tighten the tapping screws to 10 N.m (89 lb in).

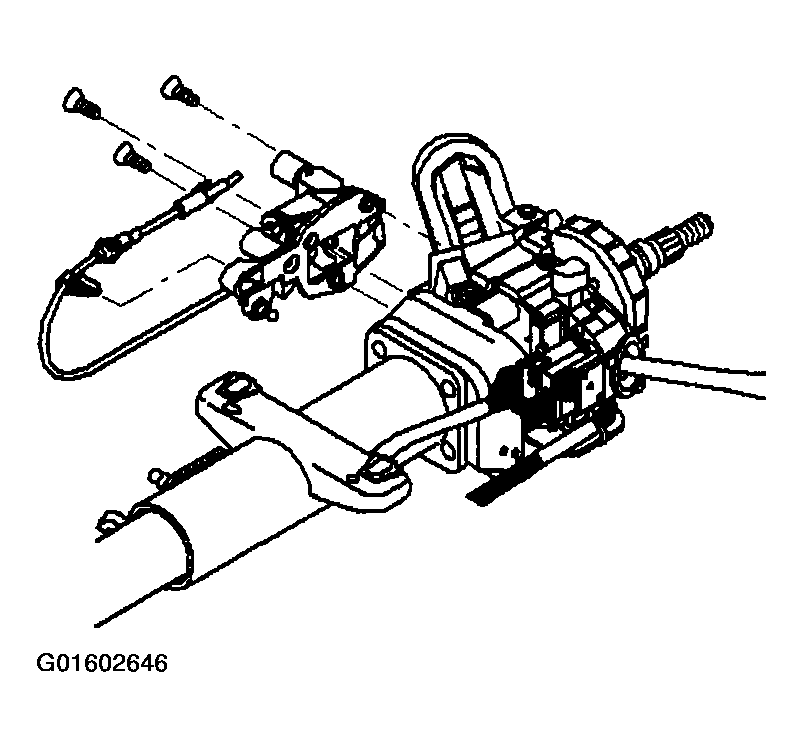

    Fig 1: Installing Linear Shift Assembly & Tapping Screws
    G01602646Courtesy of GENERAL MOTORS CORP.
  2. Connect the park lock cable assembly (1) to the lock module assembly.

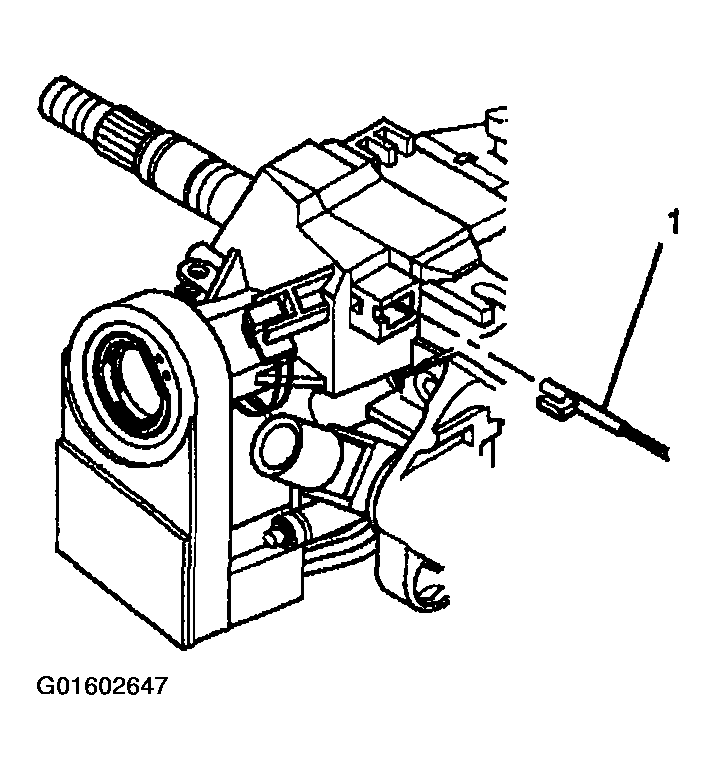

    Fig 2: Connecting Park Lock Cable Assembly To Lock Module Assembly
    G01602647Courtesy of GENERAL MOTORS CORP.
  3. Install the automatic transmission shift lock actuator.
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle (Power Tilt)  or Steering Column Trim Covers Replacement - On Vehicle (Manual Tilt) .
  5. Enable the SIR system. Refer to ACTIVATING SYSTEM .
    Fig 3: Installing Automatic Transmission Shift Lock Actuator
    G01602648Courtesy of GENERAL MOTORS CORP.
