Home › Cadillac › 2002 › DeVille Base › Repair and Diagnosis › Steering › Steering Wheel And Steering Column › Repair Instructions › Theft Deterrent Control Module Replacement › Removal Procedure

Removal Procedure

  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle (Power Tilt)  or Steering Column Trim Covers Replacement - On Vehicle (Manual Tilt) .
  3. Disconnect the theft deterrent module electrical connector.
  4. Remove the tie straps from the theft deterrent module wiring harness.
  5. Remove the theft deterrent module.

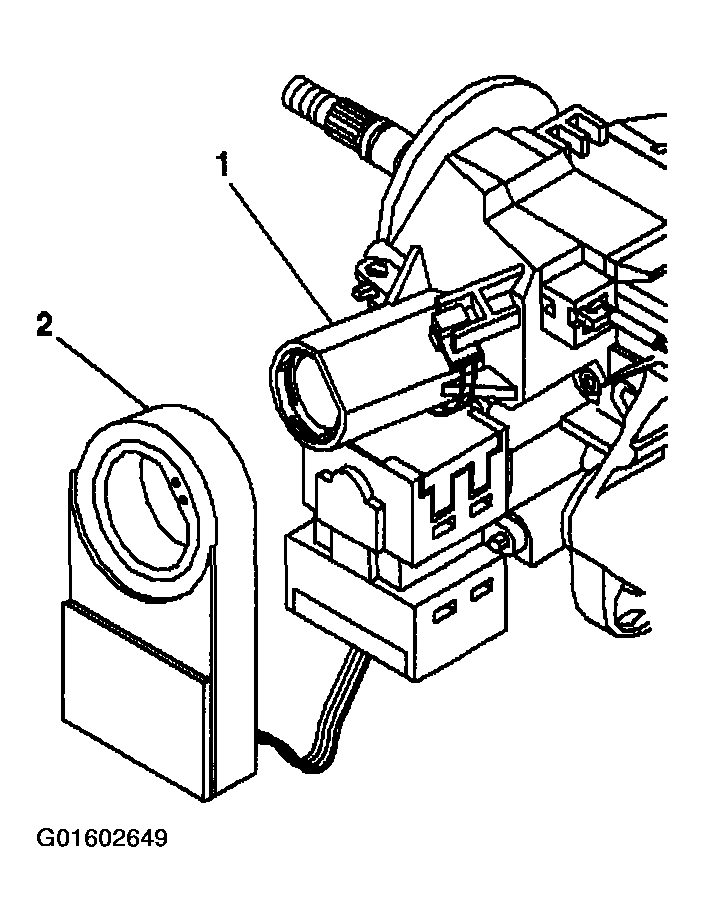

    Fig 1: Removing Theft Deterrent Module
    G01602649Courtesy of GENERAL MOTORS CORP.
