Installation Procedure

Install the battery.
NOTE: Refer to FASTENER NOTICE .

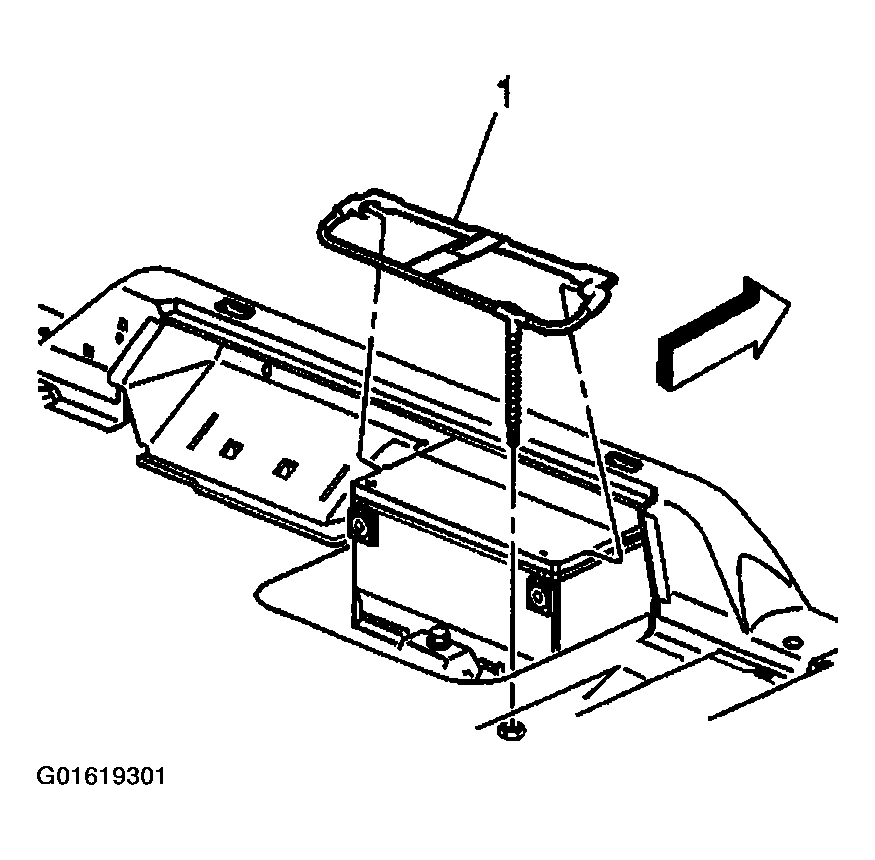

Install the battery retainer and bolt.
Tighten

Tighten the battery retainer bolt to 17 N.m (13 lb ft).

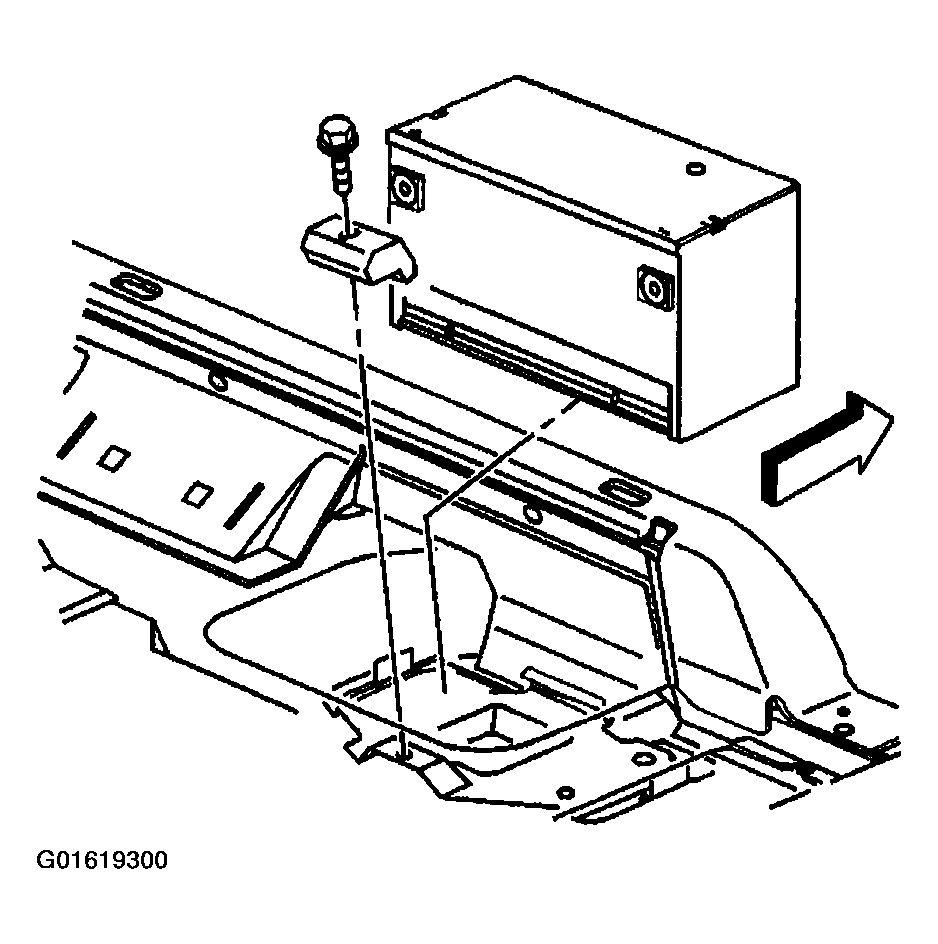

Fig 1: Installing Battery
Courtesy of GENERAL MOTORS CORP.

Important: Ensure the vent tube (1) is properly routed through the floor pan grommet.
Install the battery vent tube (1) to the battery.

Fig 2: Battery Vent Tube
Courtesy of GENERAL MOTORS CORP.
Connect the battery positive cable (1) to the battery.
Tighten

Tighten the battery cable bolt to 17 N.m (13 lb ft).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

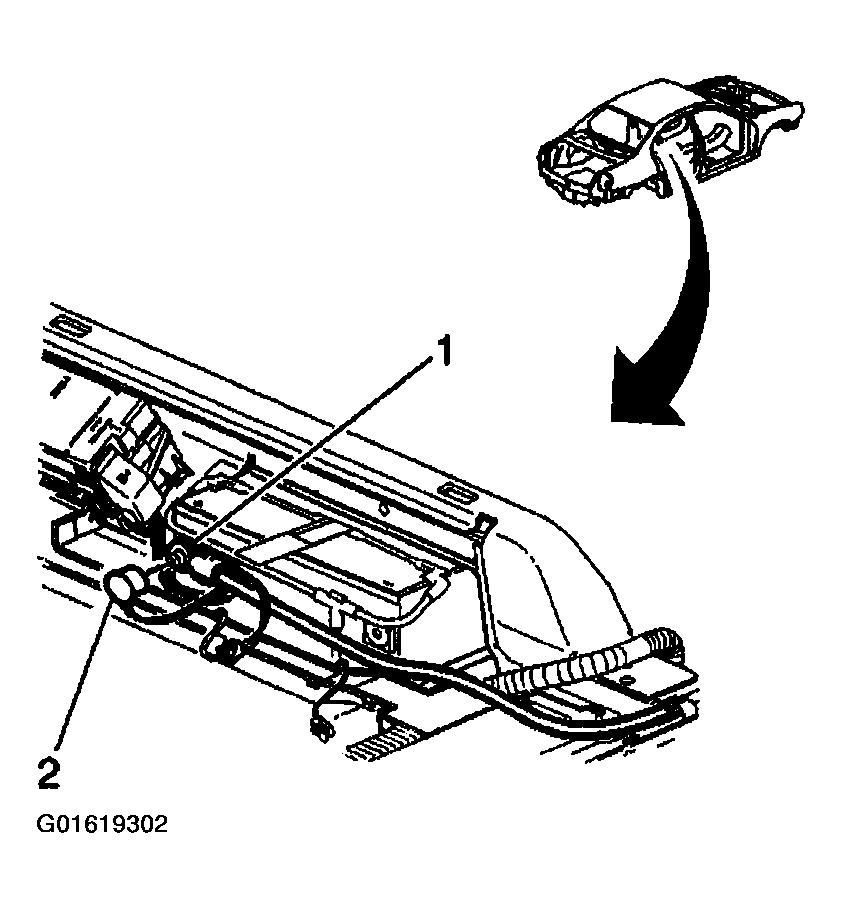

Fig 3: Battery Positive Cable
Courtesy of GENERAL MOTORS CORP.
