Body Control Module Connector End Views

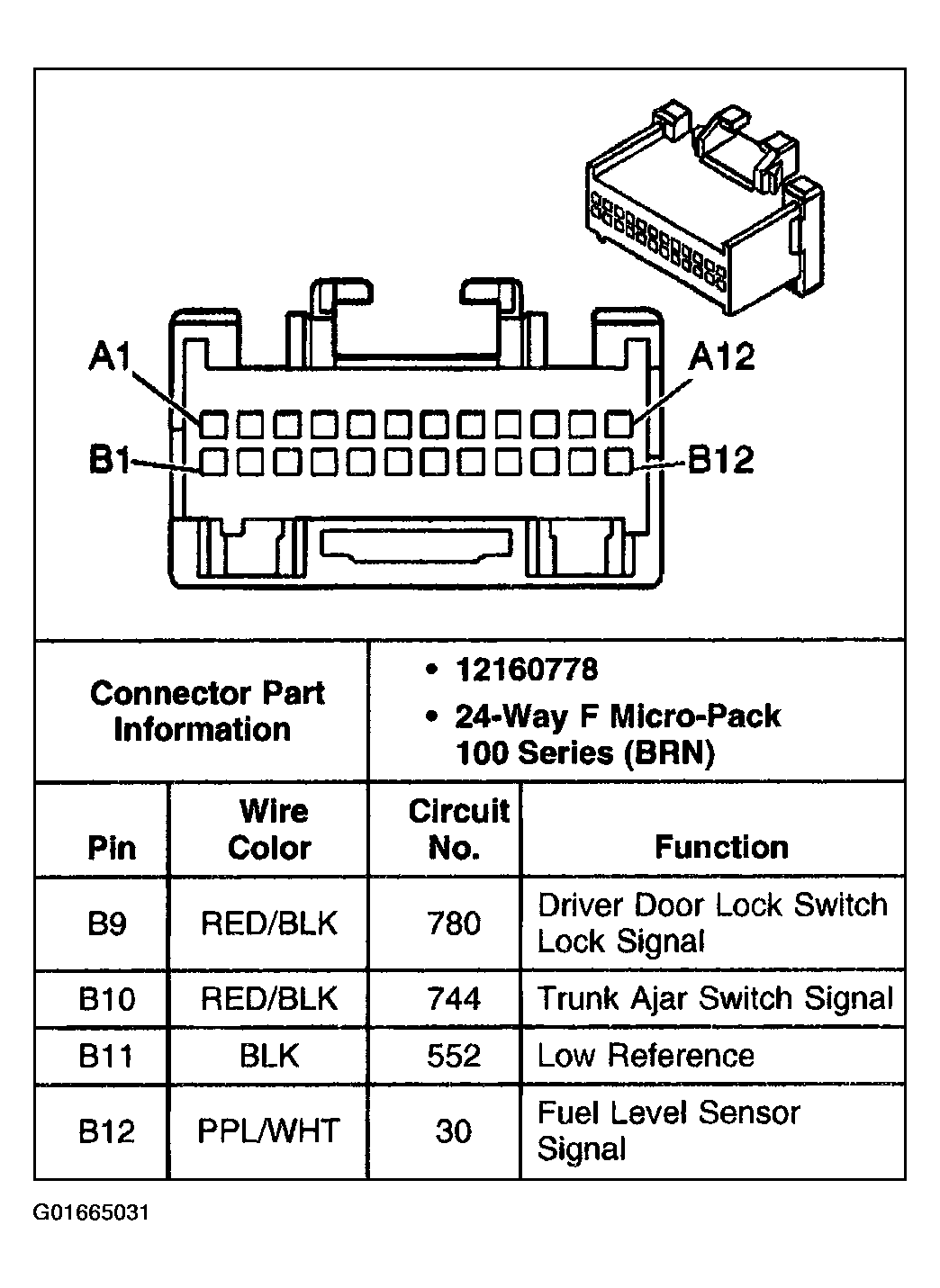

Fig 1: Body Control Module (BCM) C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

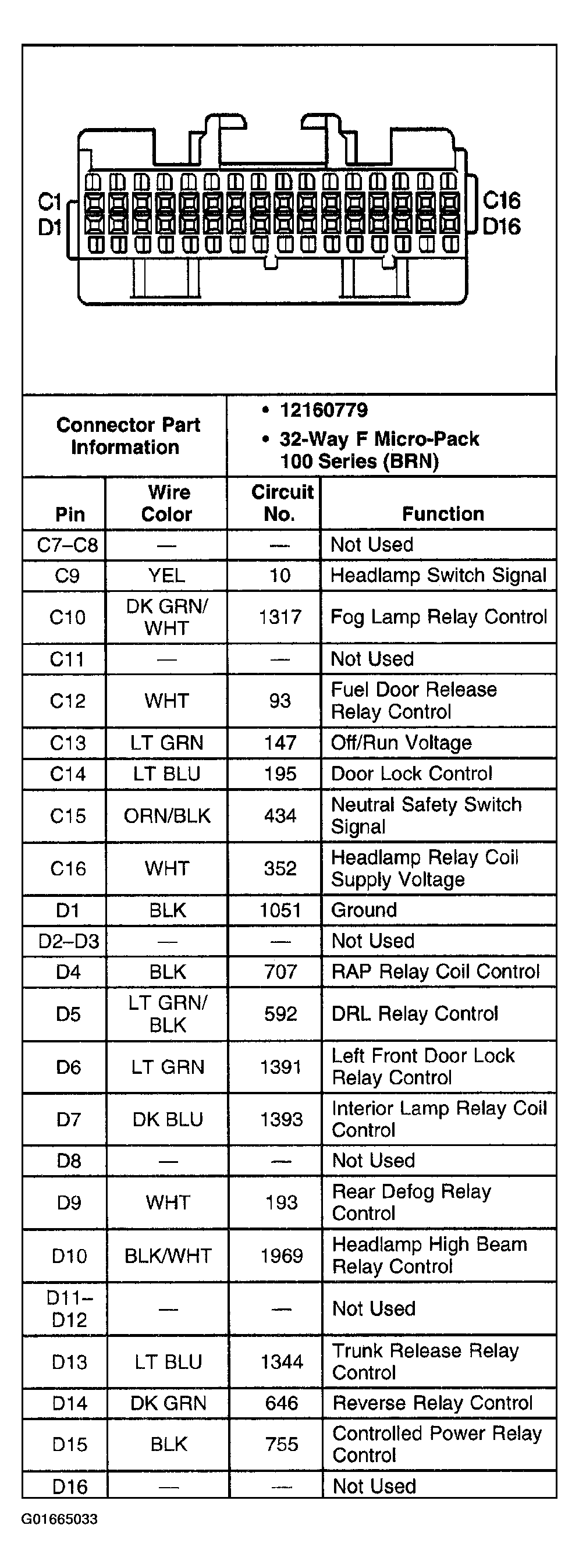

Fig 2: Body Control Module (BCM) C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

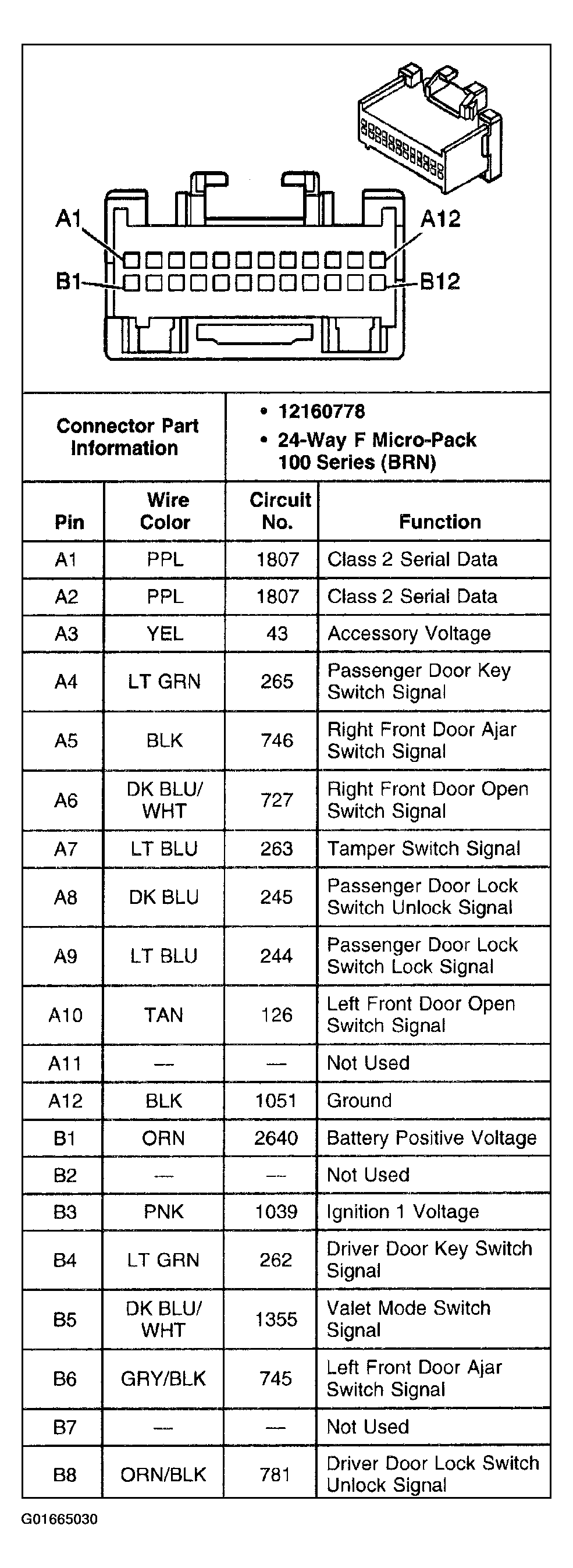

Fig 3: Body Control Module (BCM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

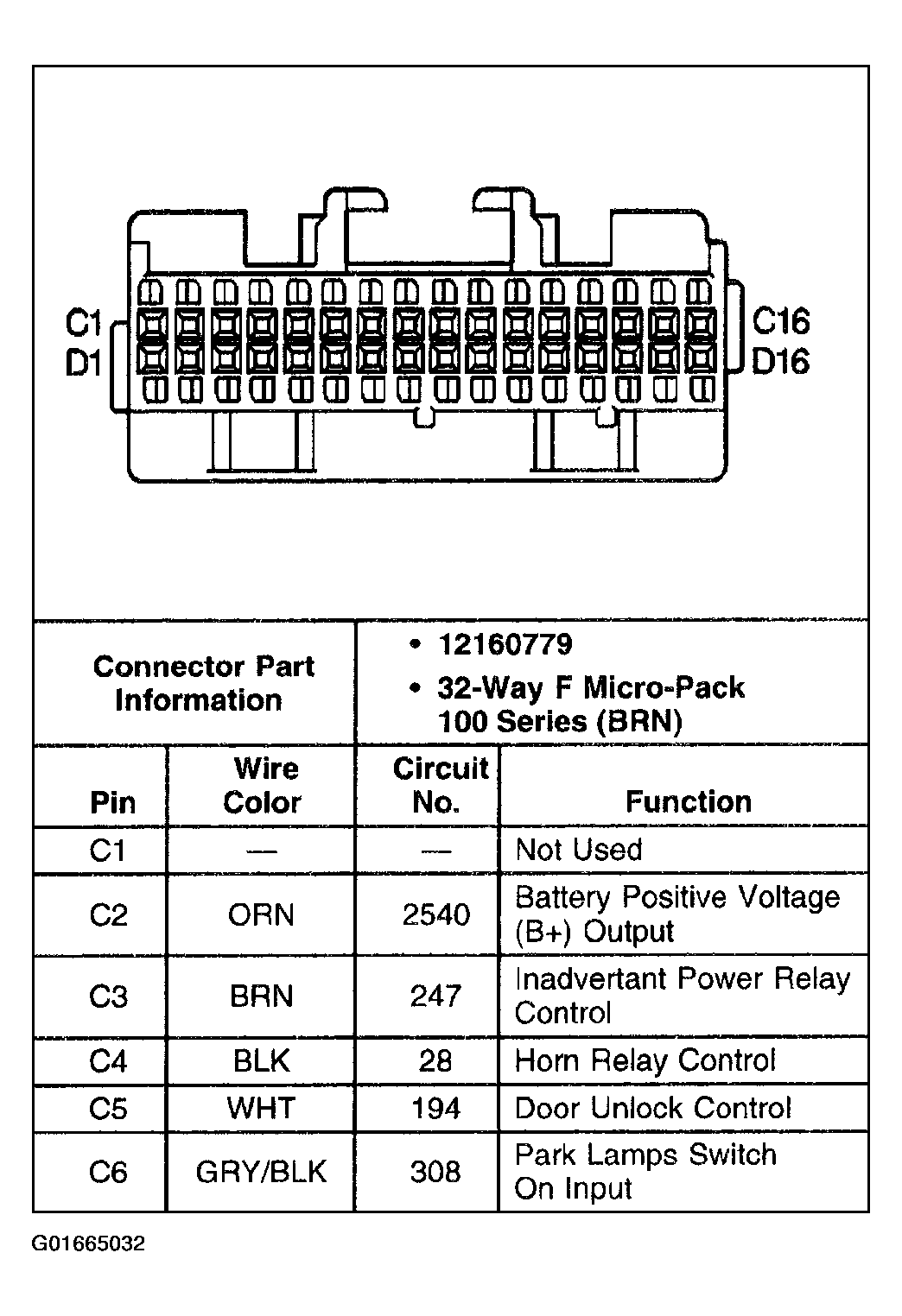

Fig 4: Body Control Module (BCM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Inadvertent Power Relay

Courtesy of GENERAL MOTORS CORP.
