Installation Procedure

  1. Align the body control module to the electronics bay board.
  2. Connect the electrical connectors to the body control module.
  3. Install the body control module (1) to the electronics bay board retainers.
  4. Ensure the (BCM) snaps into place.
  5. Install the electrical component mounting bracket. Refer to ELECTRICAL COMPONENT MOUNTING BRACKET REPLACE .

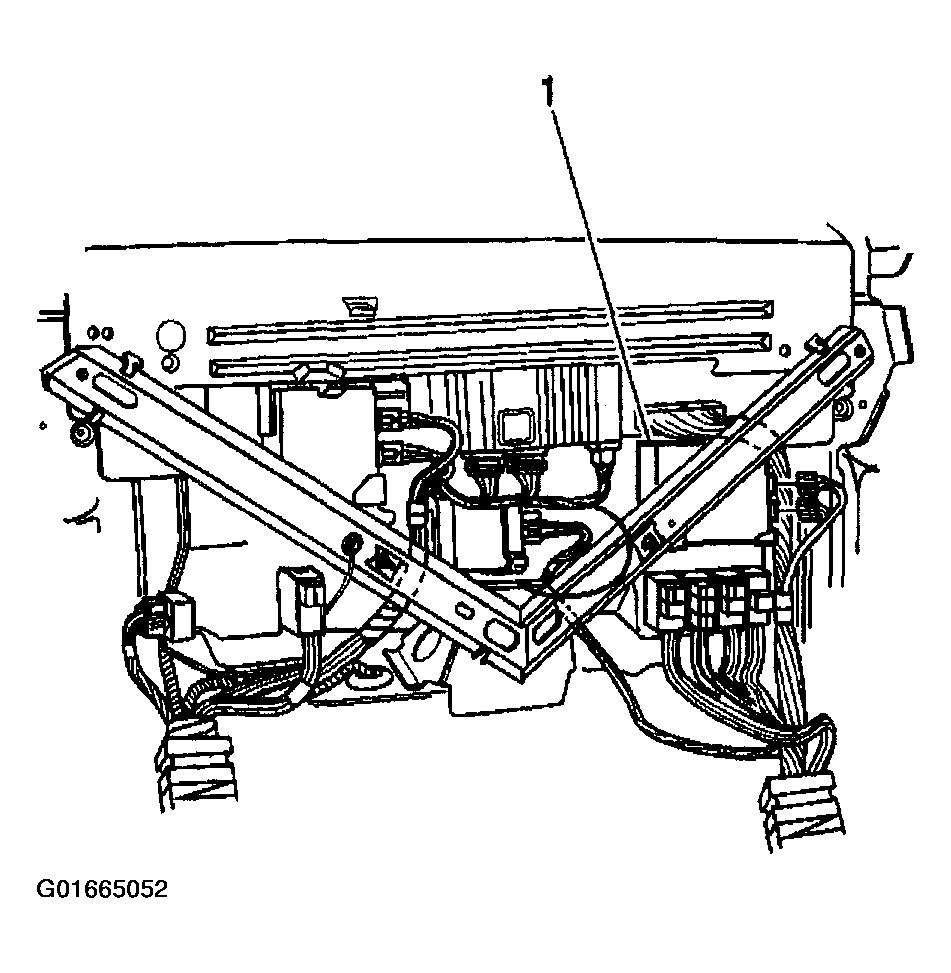

    Fig 1: Identifying Body Control Module For Installation
    G01665052Courtesy of GENERAL MOTORS CORP.
