Installation Procedure

  1. Connect the electrical connectors to the memory seat module (1).
  2. Install the memory seat module tabs (2) under the seat spring wires in order to secure.
  3. Reposition the drivers seat.

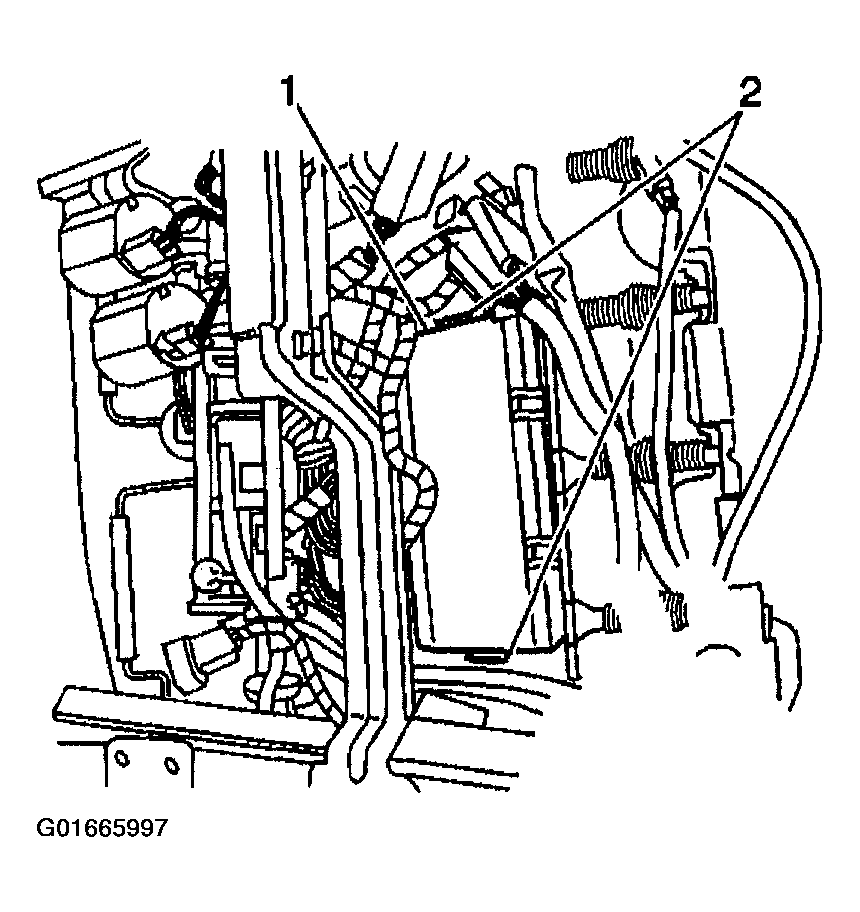

    Fig 1: Identifying Memory Seat Module & Tabs
    G01665997Courtesy of GENERAL MOTORS CORP.
