Scan Tool Output Controls

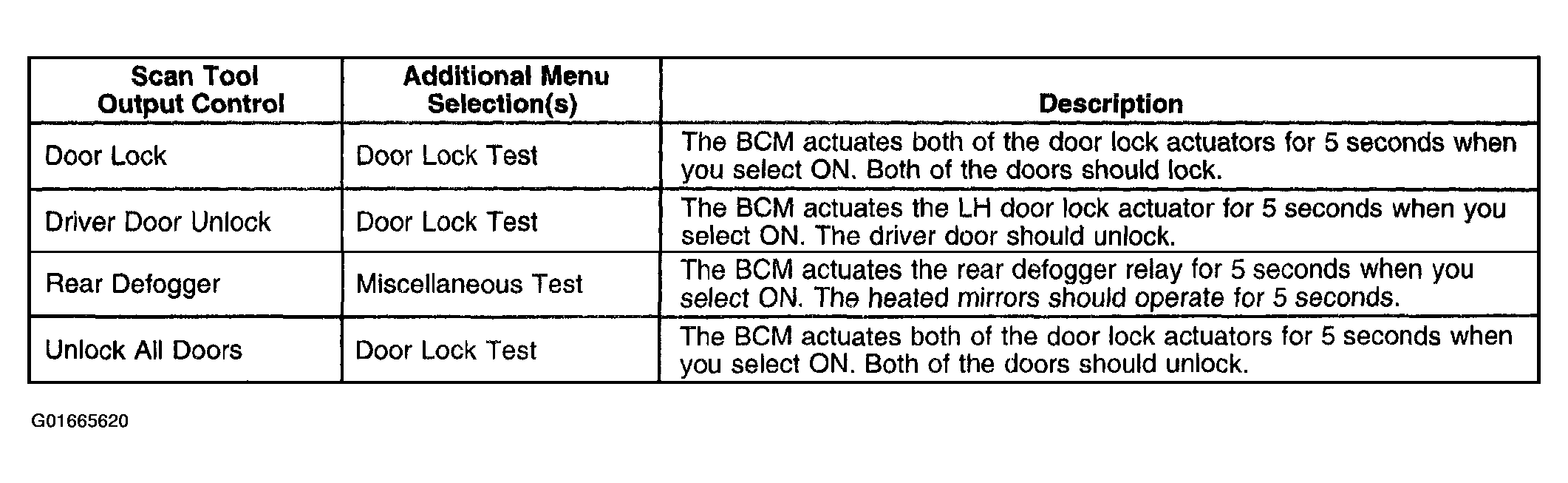

Fig 1: BCM Scan Tool Output Control
G01665620Courtesy of GENERAL MOTORS CORP.

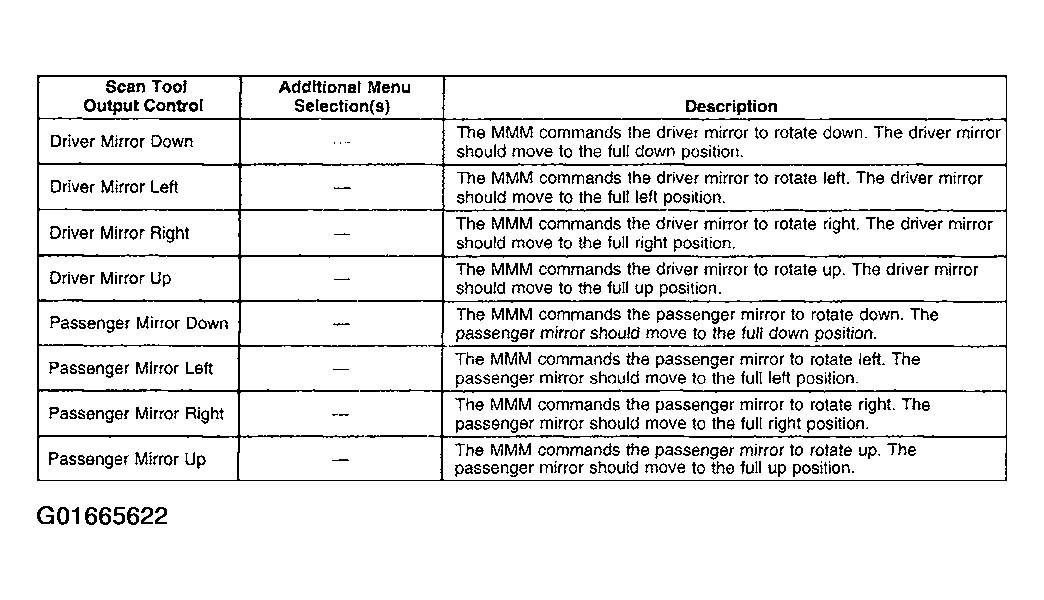

Fig 2: MMM Scan Tool Output Control
G01665622Courtesy of GENERAL MOTORS CORP.
