Installation Procedure
- Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .

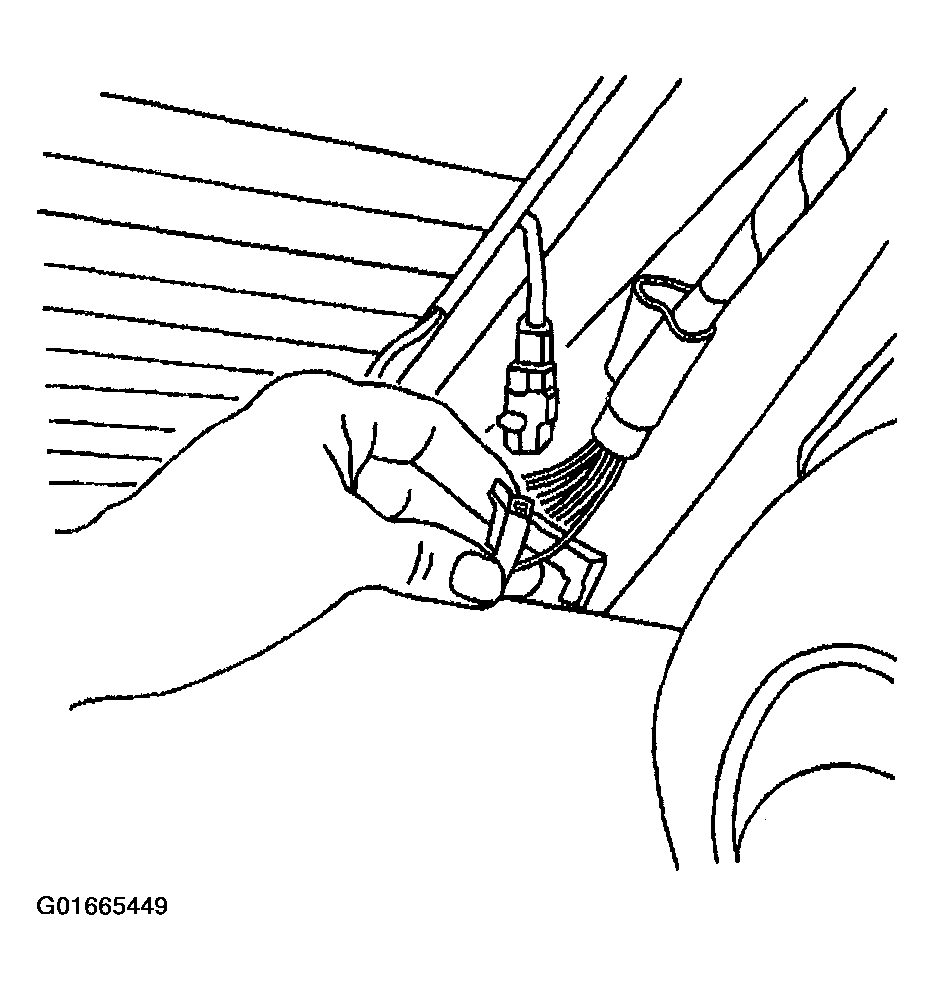

- Connect the rear window electrical connectors.
- Install the headliner. Refer to HEADLINER REPLACEMENT .
- Install the rear quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER .
- Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
- Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
- Install the Onstar™ antenna. Refer to COUPLING REPLACEMENT - ANTENNA OUTER or COUPLING REPLACEMENT - ANTENNA INNER .
- Close the rear compartment lid.
- Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
