Front Vertical Position Sensor Connector End View
Front Vertical Position Sensor Connector End View

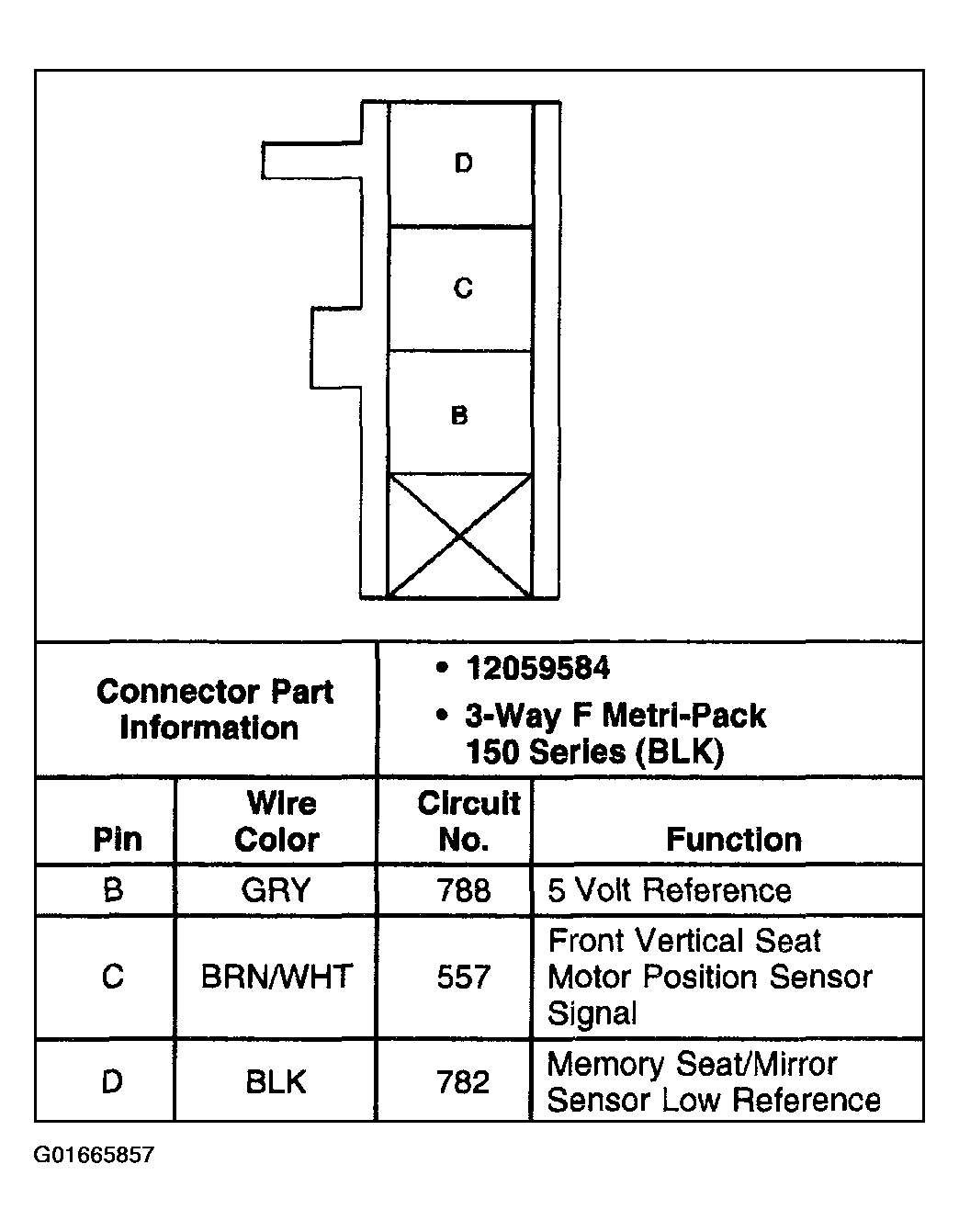

Fig 1: Front Vertical Position Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
