Heated Seat Module Connector End View - Driver

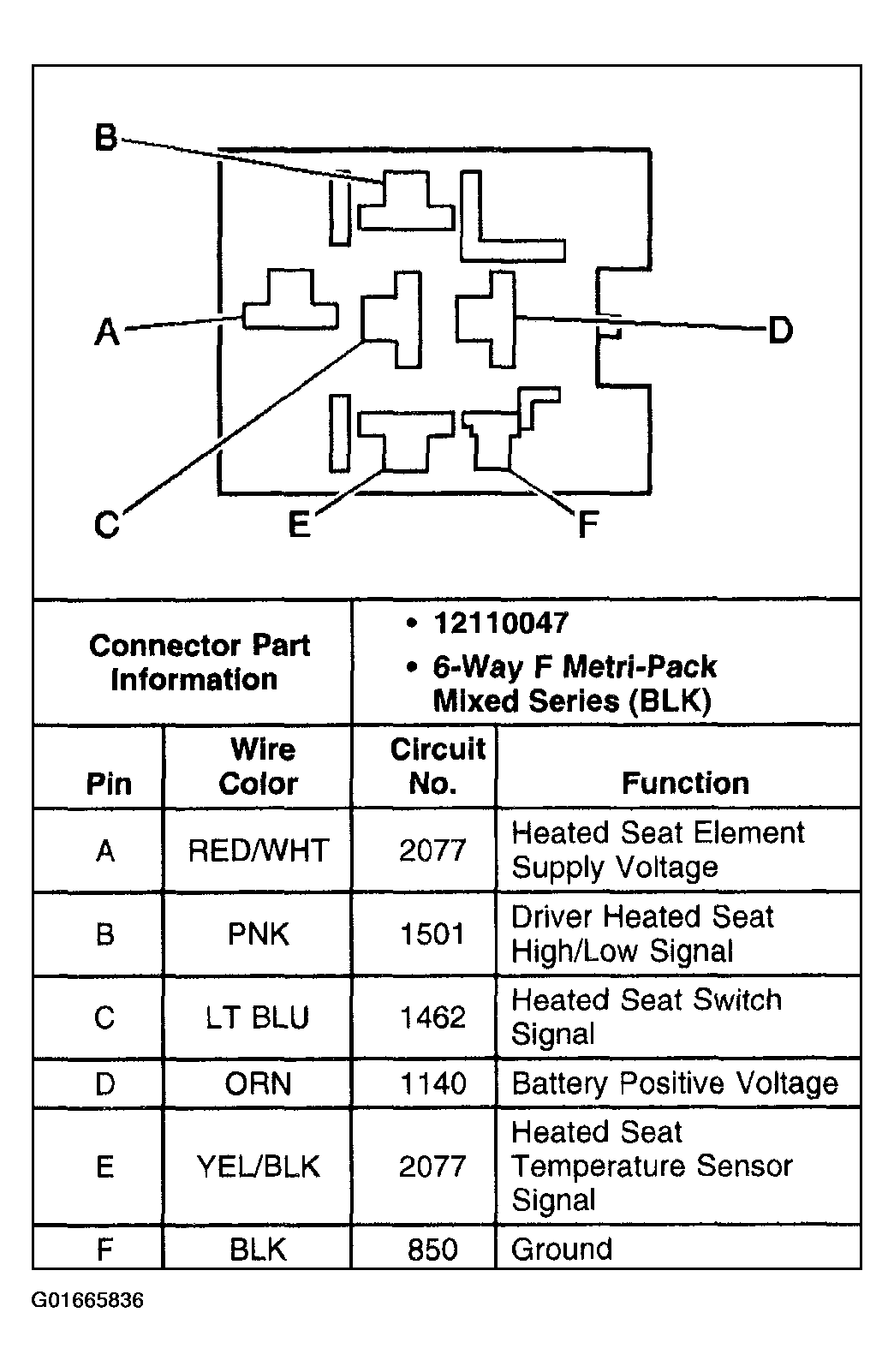

Fig 1: Heated Seat Module - Driver
G01665836Courtesy of GENERAL MOTORS CORP.
