Memory Seat Module (MSM) Connector End View C3

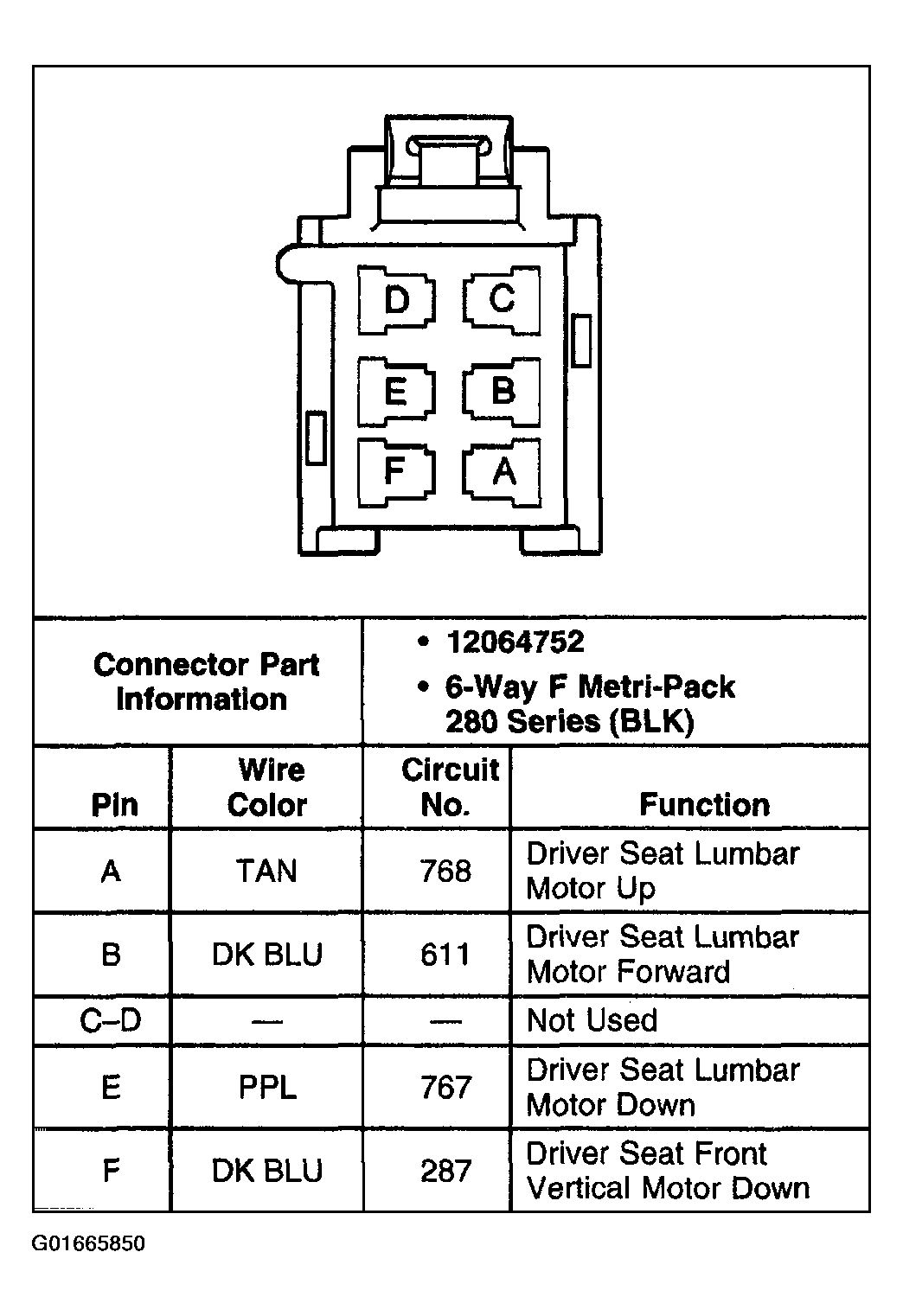

Fig 1: Memory Seat Module (MSM) C3
G01665850Courtesy of GENERAL MOTORS CORP.
