Memory Seat Module (MSM) Connector End View C4

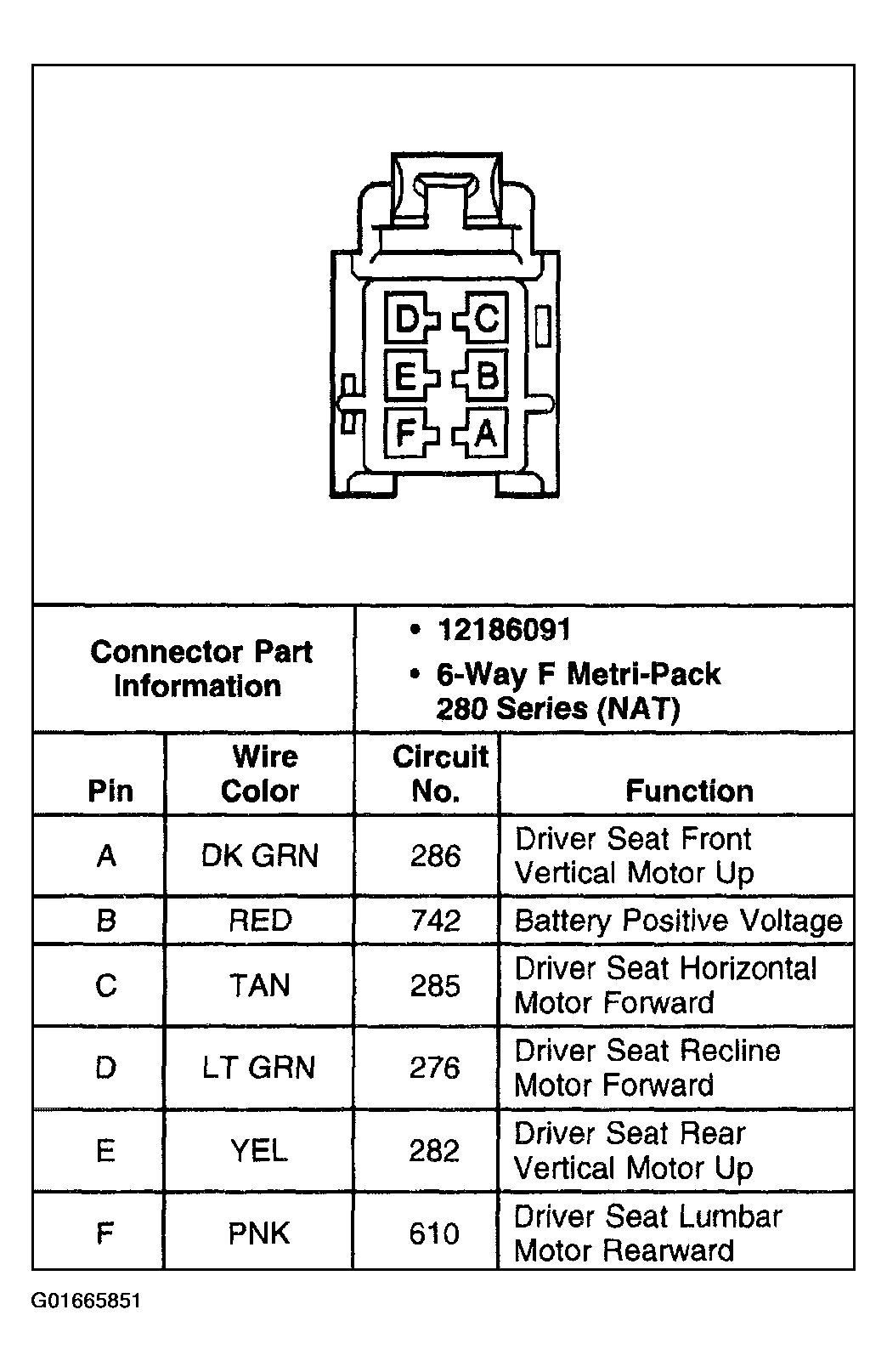

Fig 1: Memory Seat Module (MSM) C4
G01665851Courtesy of GENERAL MOTORS CORP.
