Power Sunroof Express Module Connector End View C1

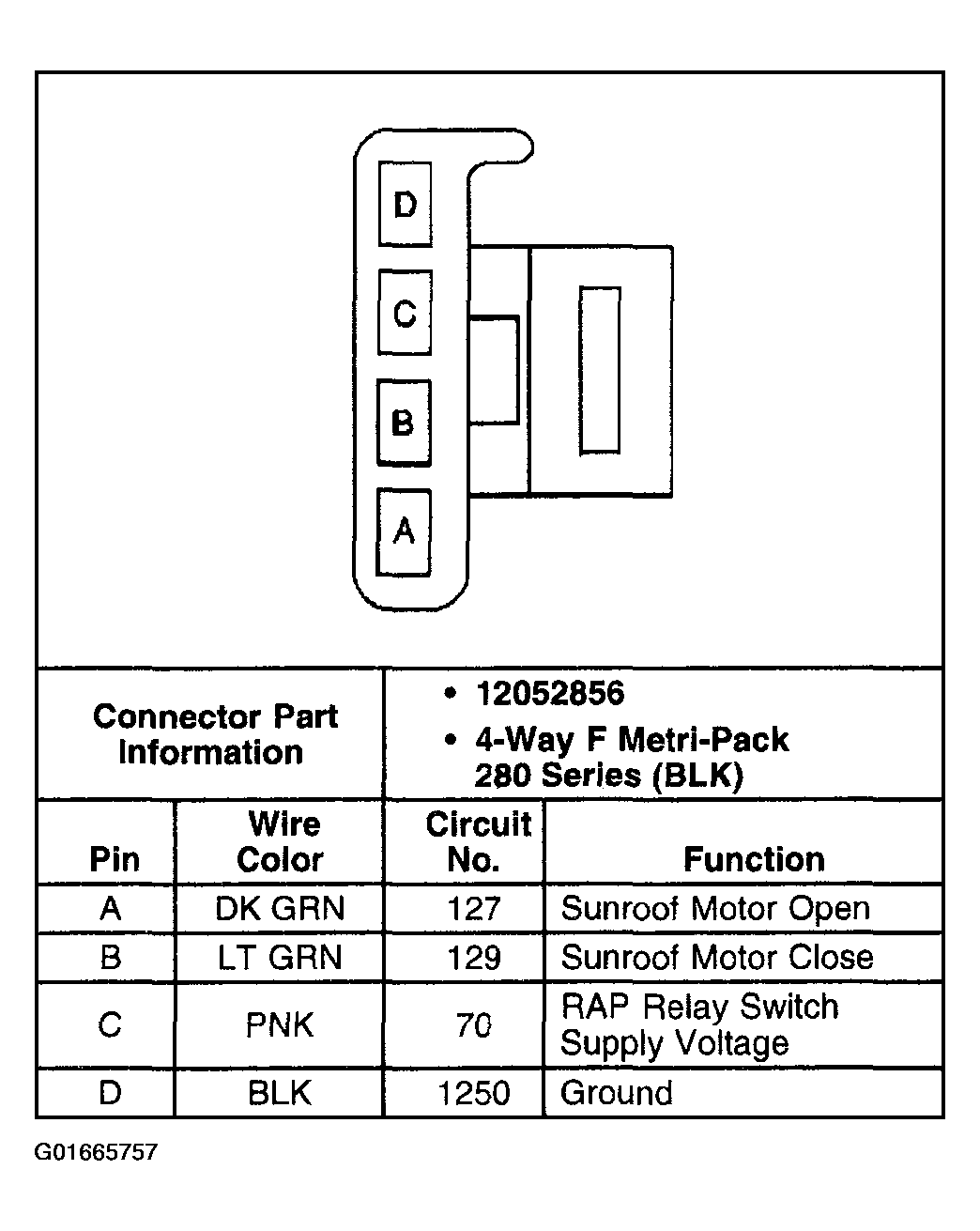

Fig 1: Power Sunroof Express Module C1
G01665757Courtesy of GENERAL MOTORS CORP.
