Power Sunroof Express Module Connector End View C2

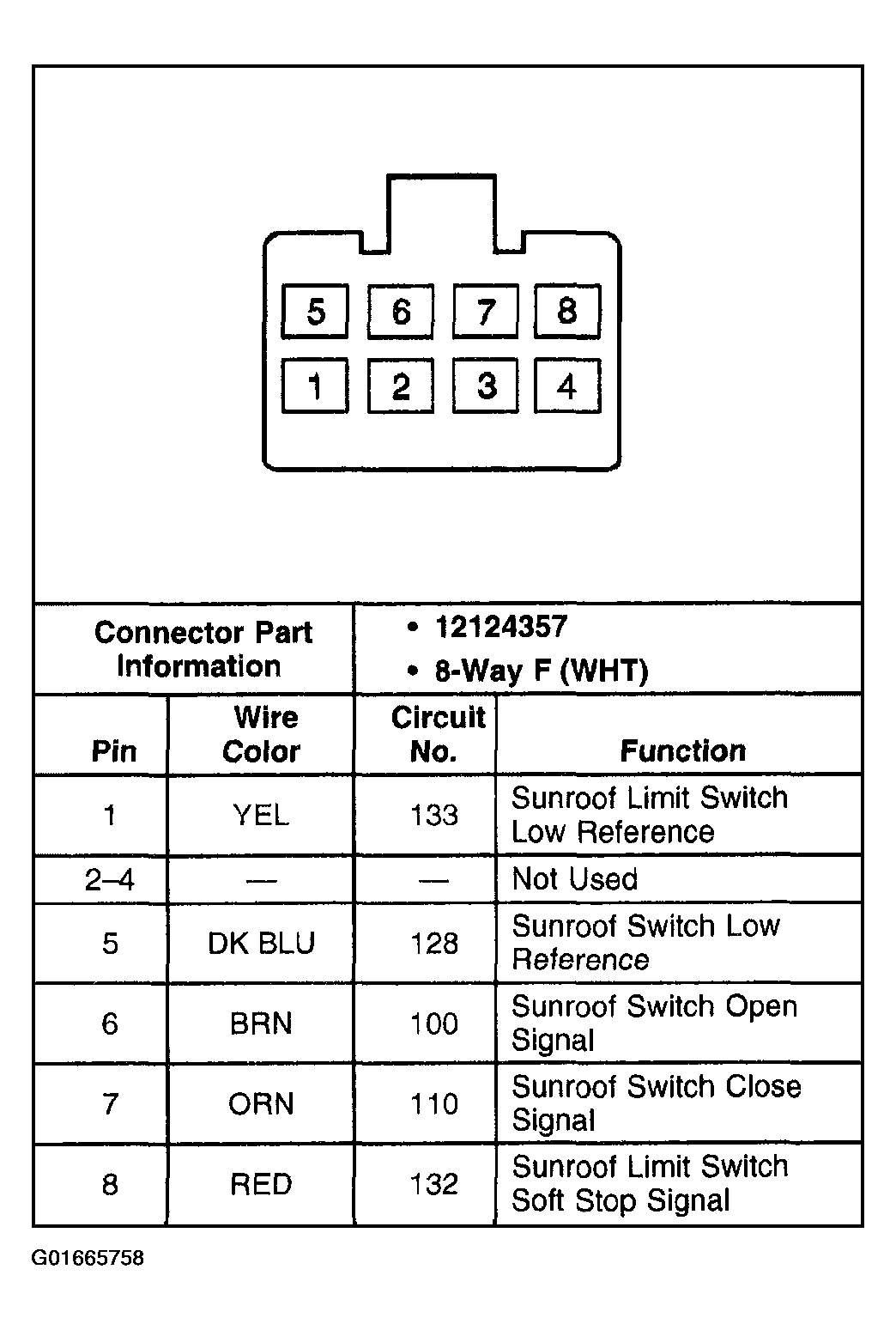

Fig 1: Power Sunroof Express Module C2
G01665758Courtesy of GENERAL MOTORS CORP.
