Engine Electrical Component Views

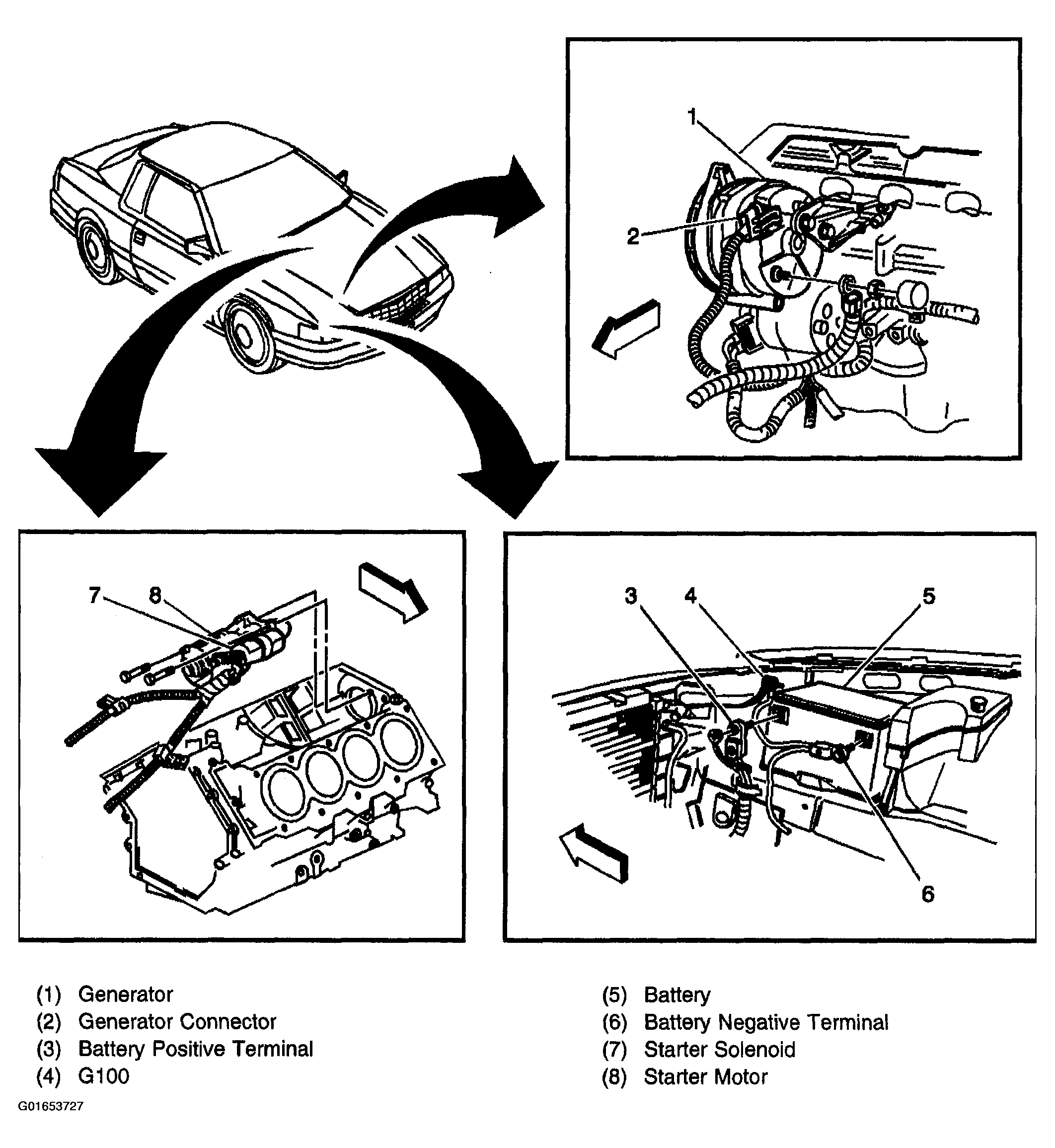

Fig 1: Engine Electrical Component Views
G01653727Courtesy of GENERAL MOTORS CORP.
