Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Place the positive battery cable into the cable harness clips along the engine frame.

    Tighten

    Tighten the cable harness clip retaining bolts (3) to 6 N.m (53 lb in).

  2. Connect the battery positive cable (1) to the underhood fuse block.

    Tighten

    Tighten the battery positive cable to underhood fuse block nut to 11 N.m (97 lb in).

  3. Connect the battery positive lead (4) and install the generator output BAT terminal nut.

    Tighten

    Tighten the generator output BAT terminal nut to 12.5 N.m (111 lb in).

  4. Install the engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE in Body Front End.
  5. Connect the cable harness clip (5) to the camshaft cover.

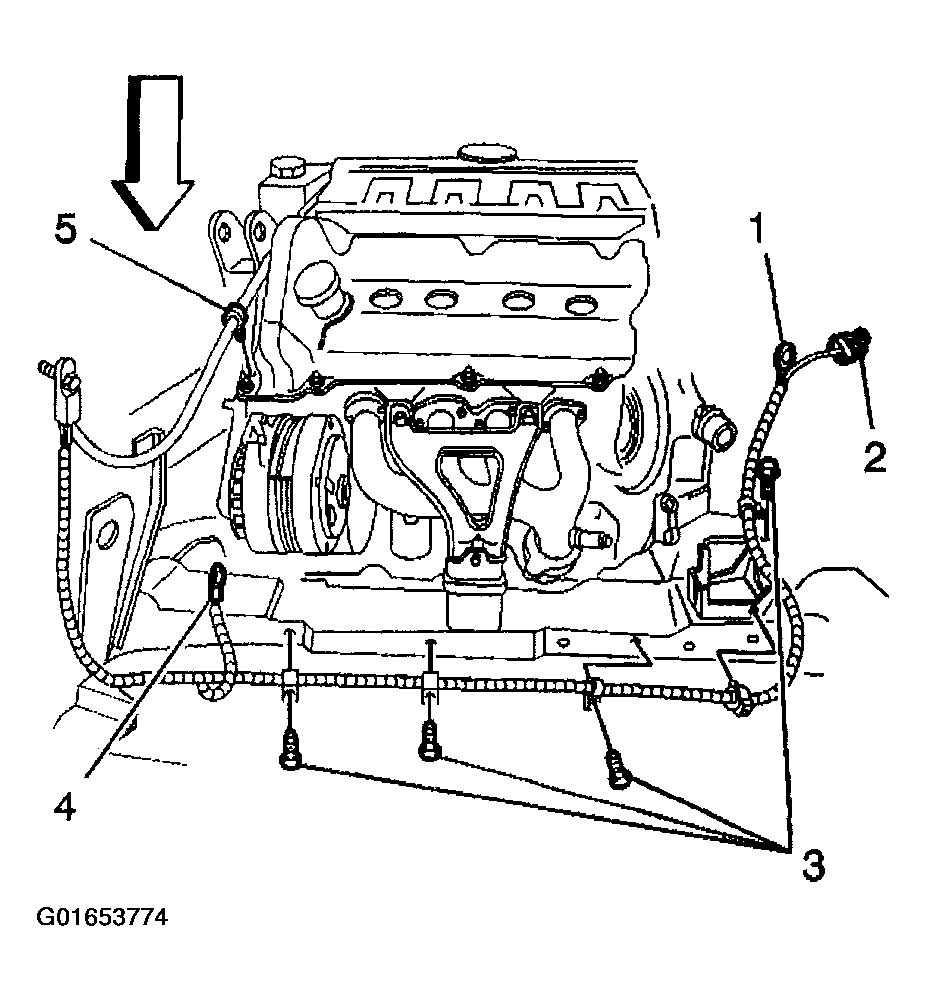

    Fig 1: Battery Positive Cable
    G01653774Courtesy of GENERAL MOTORS CORP.
  6. Install the bolt attaching the cable harness retainer to the body rail.

    Tighten

    Tighten the cable harness retainer bolt to 6 N.m (53 lb in).

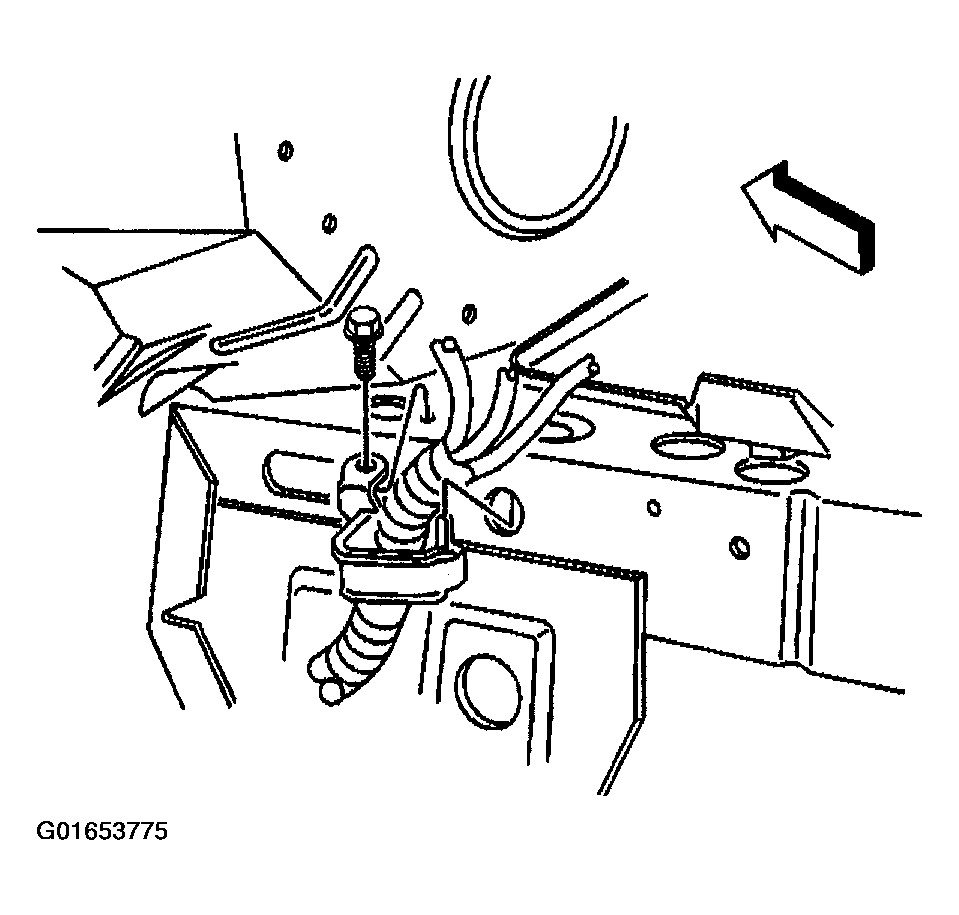

    Fig 2: Bolt Attaching Cable Harness Retainer To Body Rail
    G01653775Courtesy of GENERAL MOTORS CORP.
  7. Connect the battery positive cable to the battery.

    Tighten

    Tighten the battery cable to 17 N.m (13 lb ft).

  8. Connect the battery positive cable to the starter.

    Tighten

    Tighten the battery positive cable to starter terminal nut to 10 N.m (89 lb ft).

  9. Install the intake manifold. Refer to INTAKE MANIFOLD INSTALLATION (ELDORADO) in Engine Mechanical-4.6L.
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

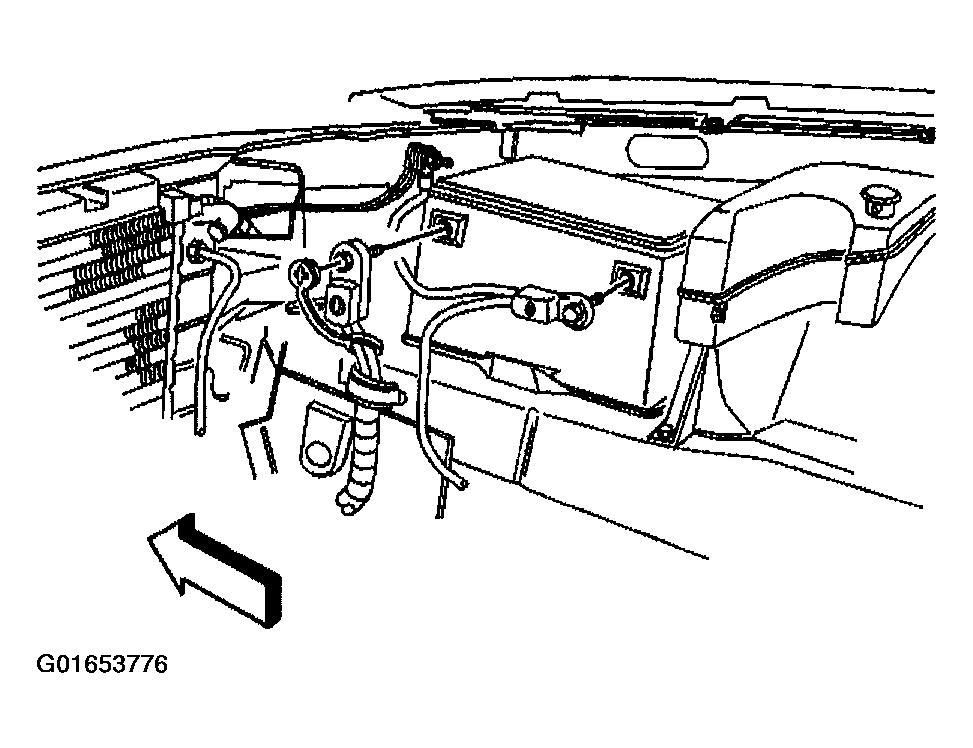

    Fig 3: Battery Positive Cable
    G01653776Courtesy of GENERAL MOTORS CORP.
