Installation Procedure

  1. Install the battery into the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery retainer and bolt.

    Tighten

    Tighten the battery retainer bolt to 17 N.m (13 lb ft).

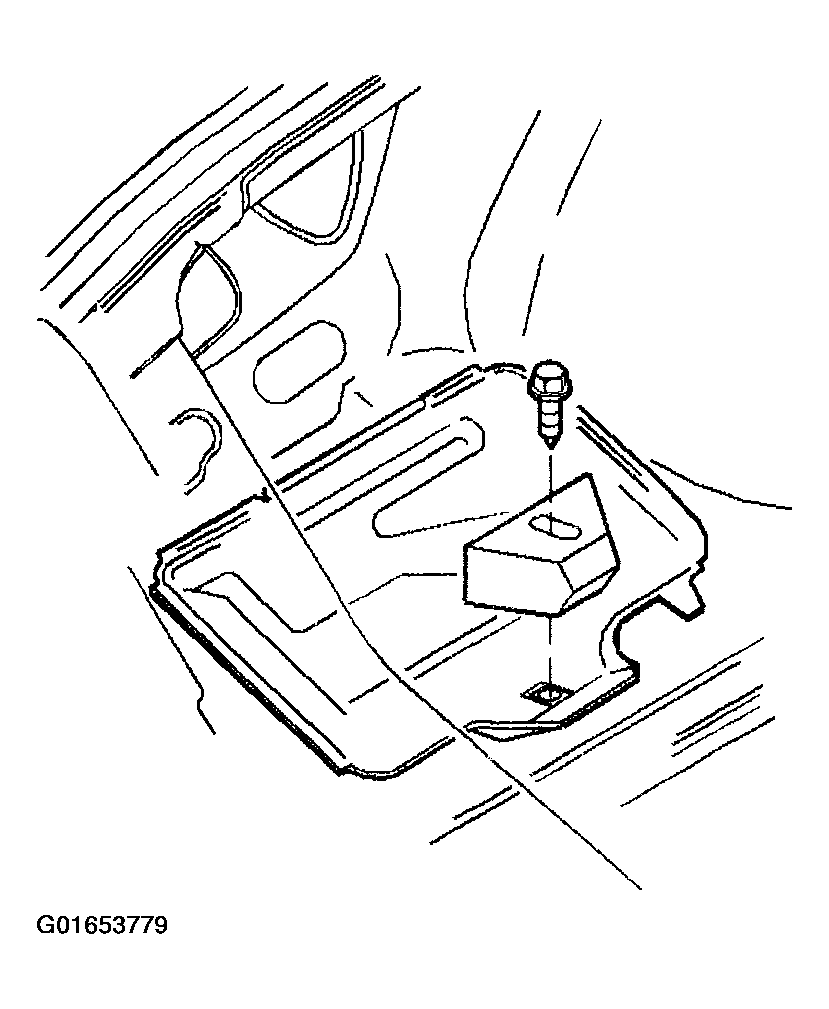

    Fig 1: Installing Battery
    G01653779Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable to the battery.

    Tighten

    Tighten the battery cable bolt to 17 N.m (13 lb ft).

  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  5. Install the right front gusset. Refer to GUSSET REPLACEMENT - RIGHT in Body Front End.

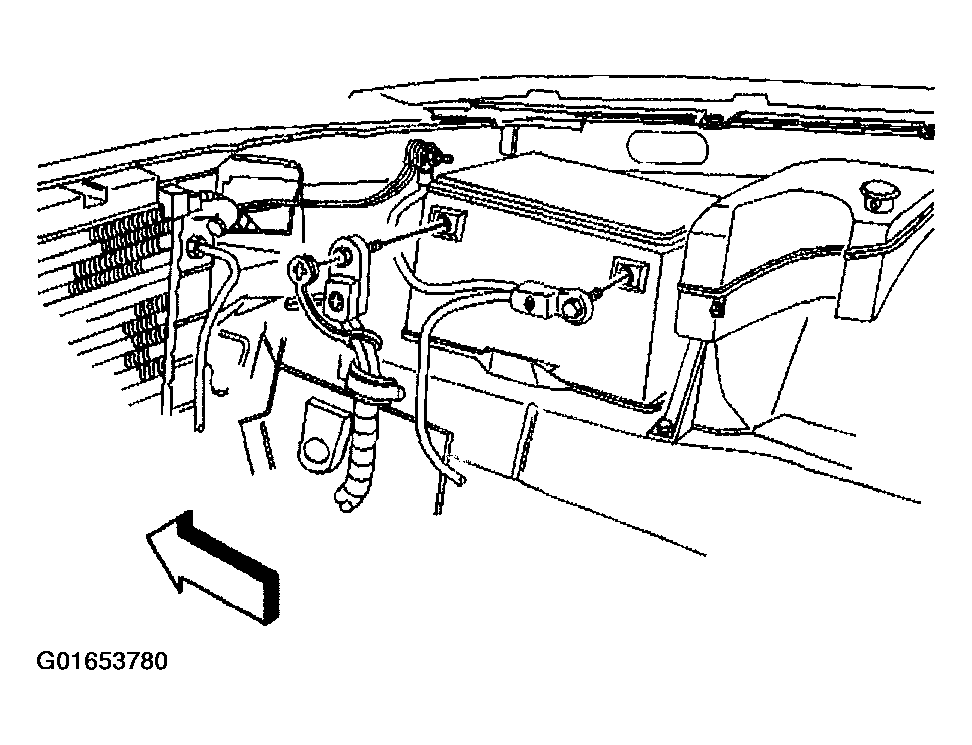

    Fig 2: Positive & Negative Battery Cable
    G01653780Courtesy of GENERAL MOTORS CORP.
