Horns Component Views

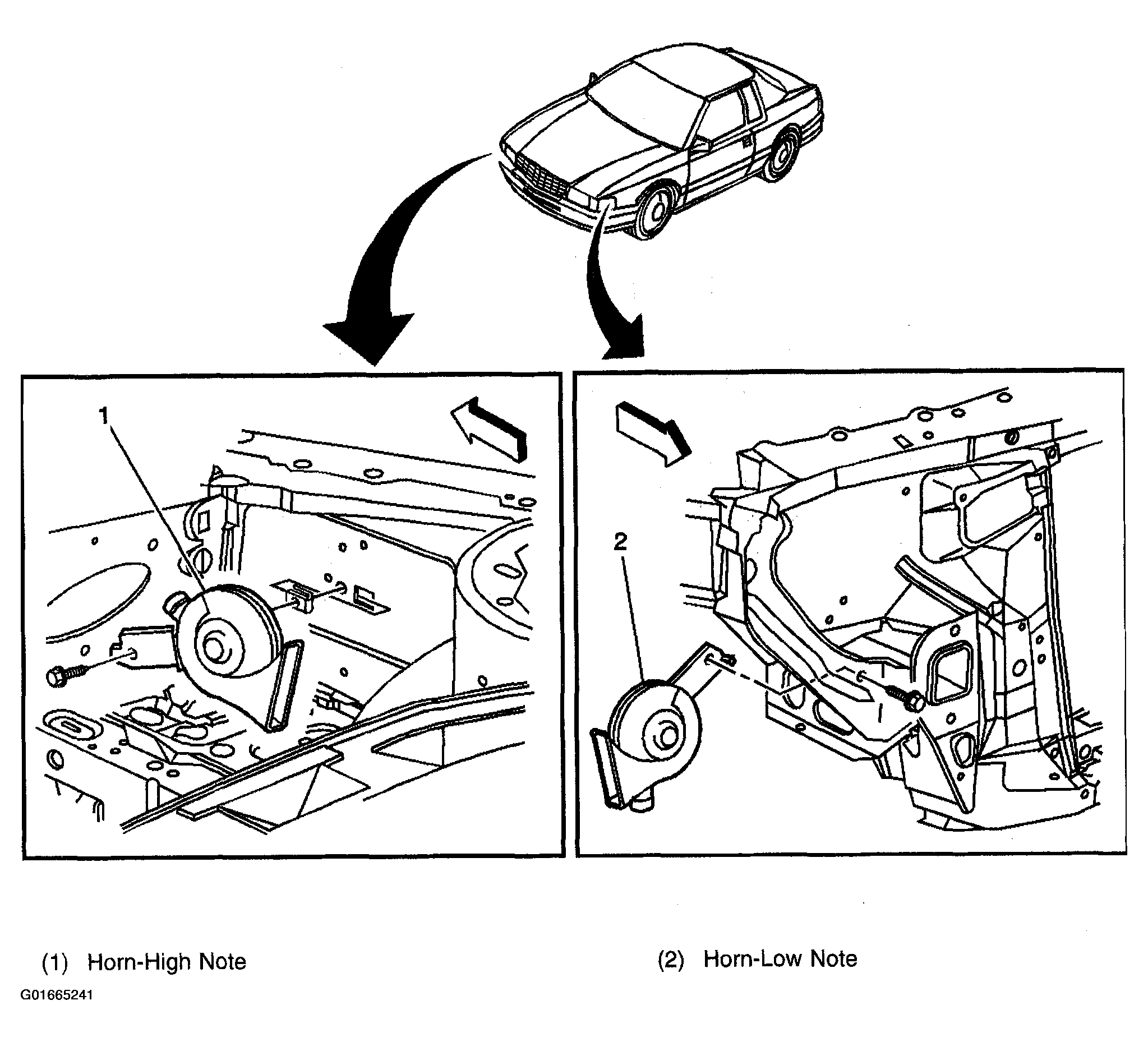

Fig 1: Right and Left Front Corner of Vehicle
G01665241Courtesy of GENERAL MOTORS CORP.

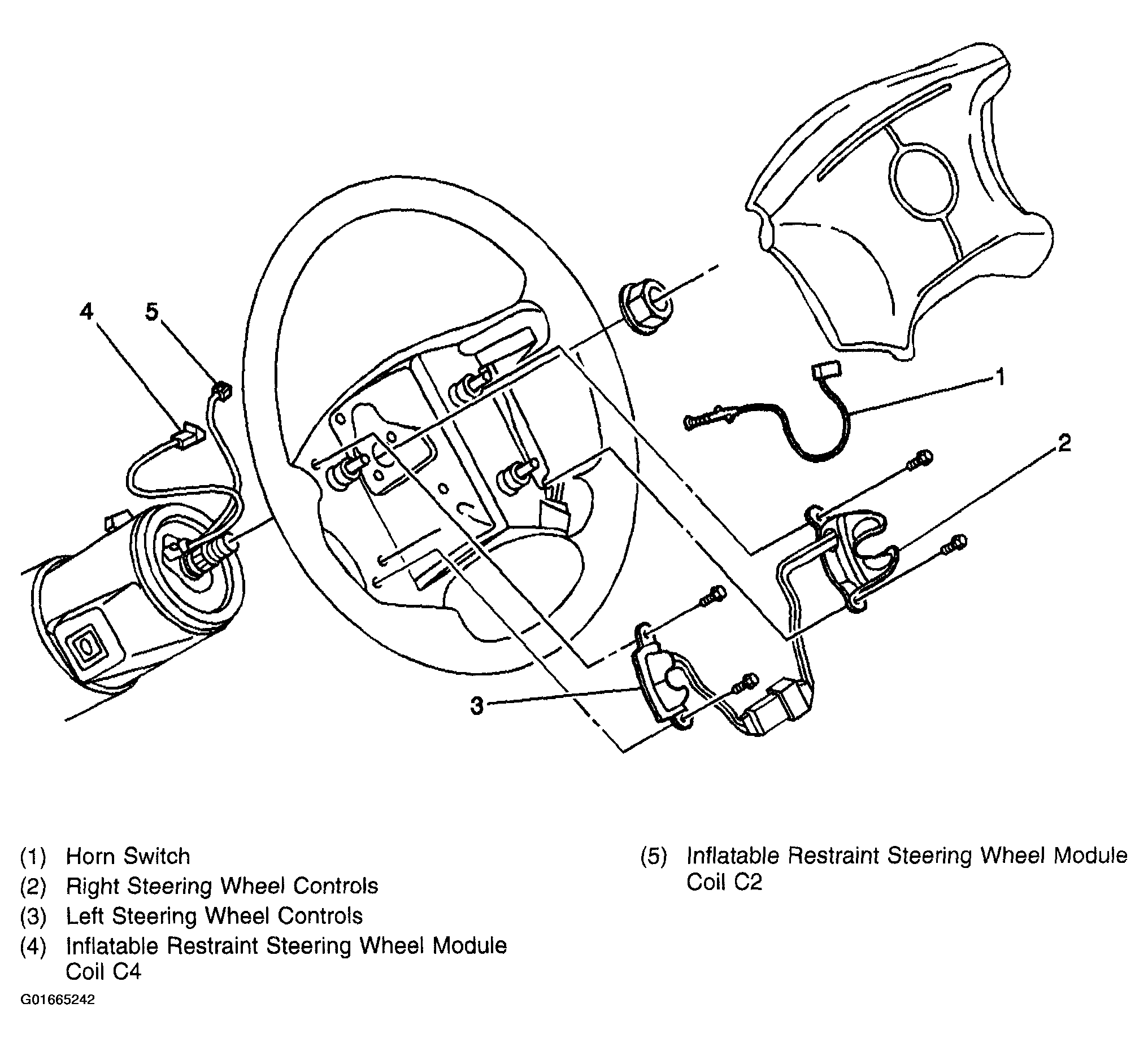

Fig 2: Steering Wheel Controls
G01665242Courtesy of GENERAL MOTORS CORP.
