Valet Switch Connector End View
Valet Switch Connector End View

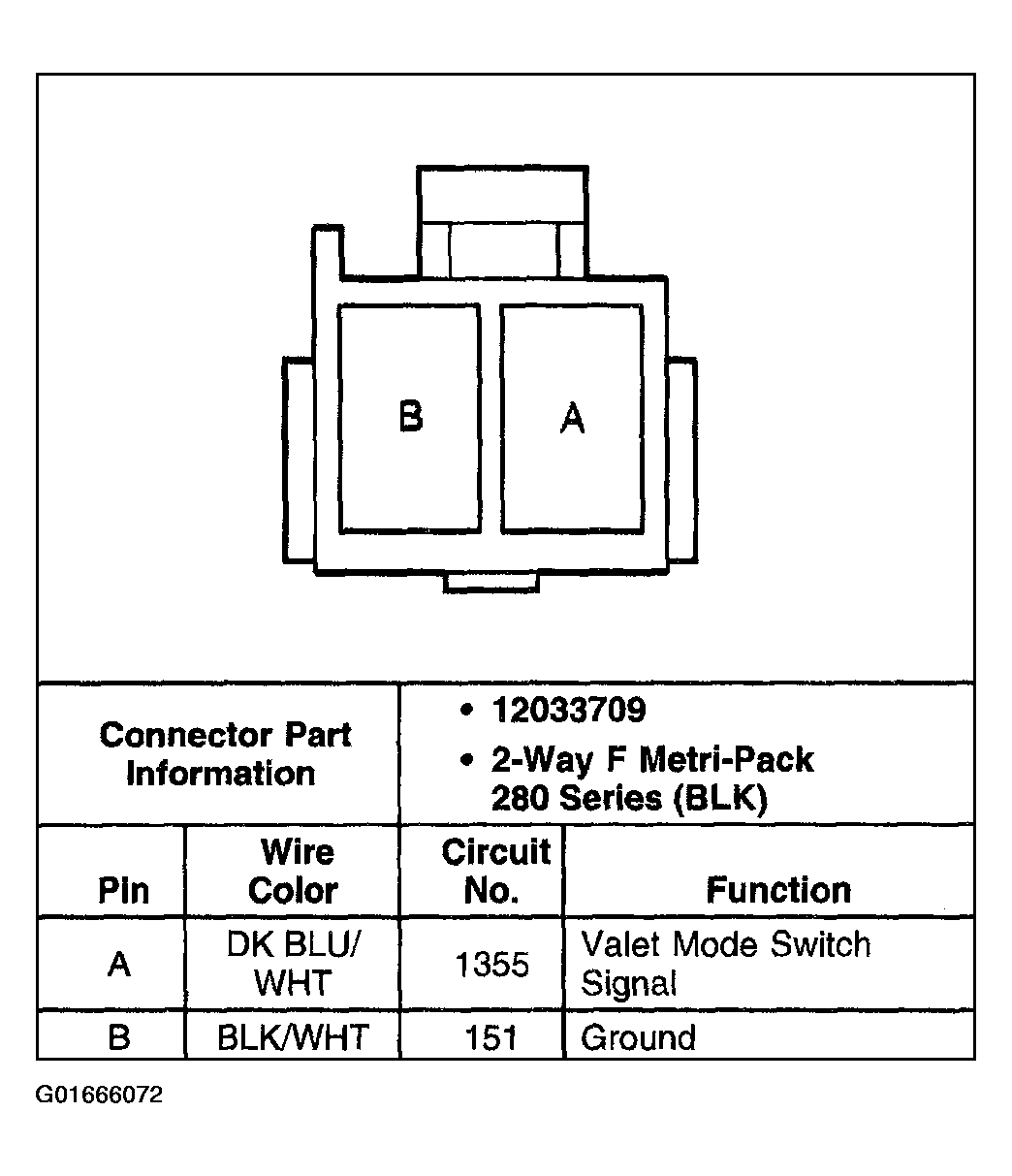

Fig 1: Valet Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
