Seat Belt Component Views

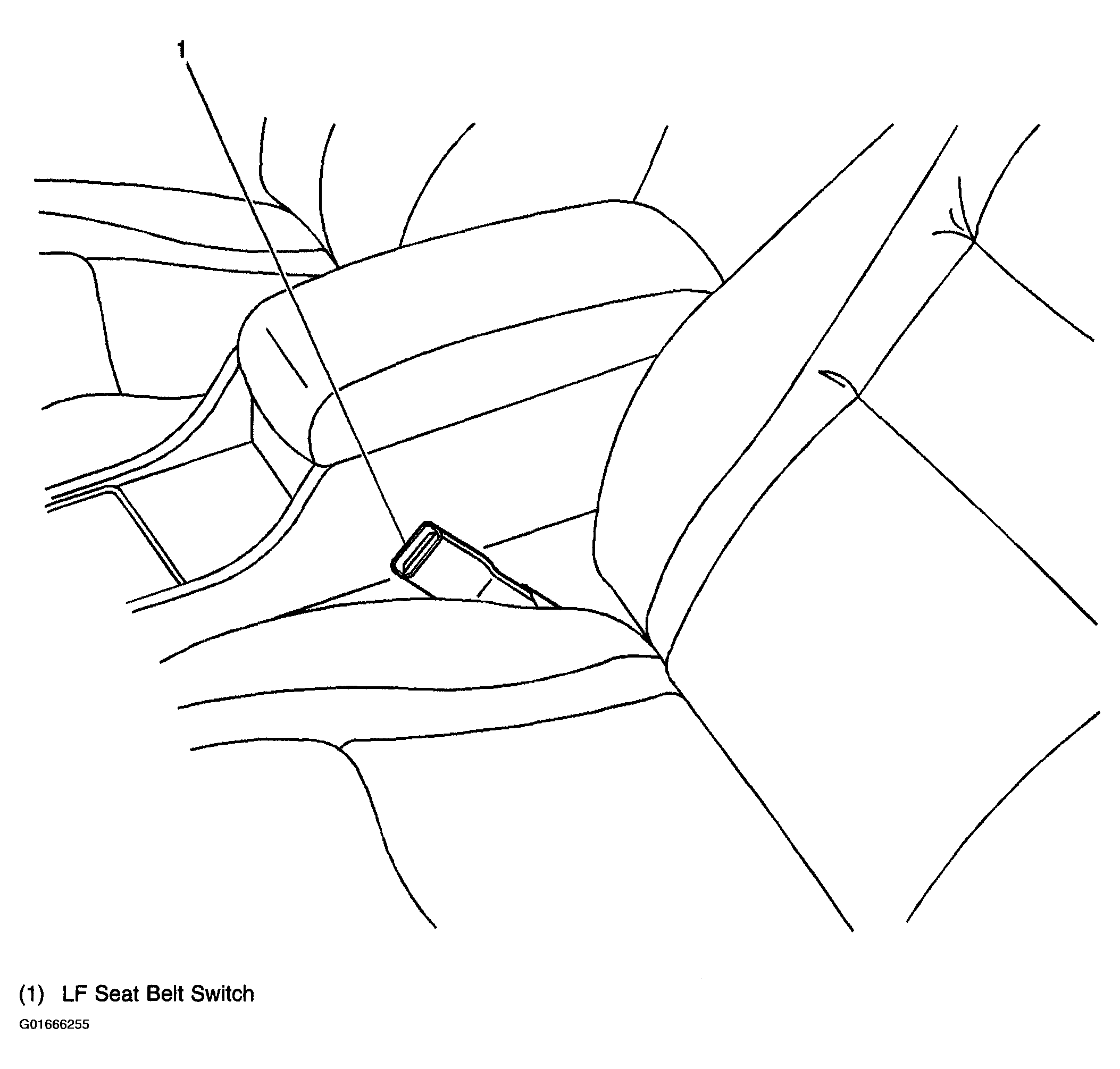

Fig 1: LF Seat Belt Switch
G01666255Courtesy of GENERAL MOTORS CORP.

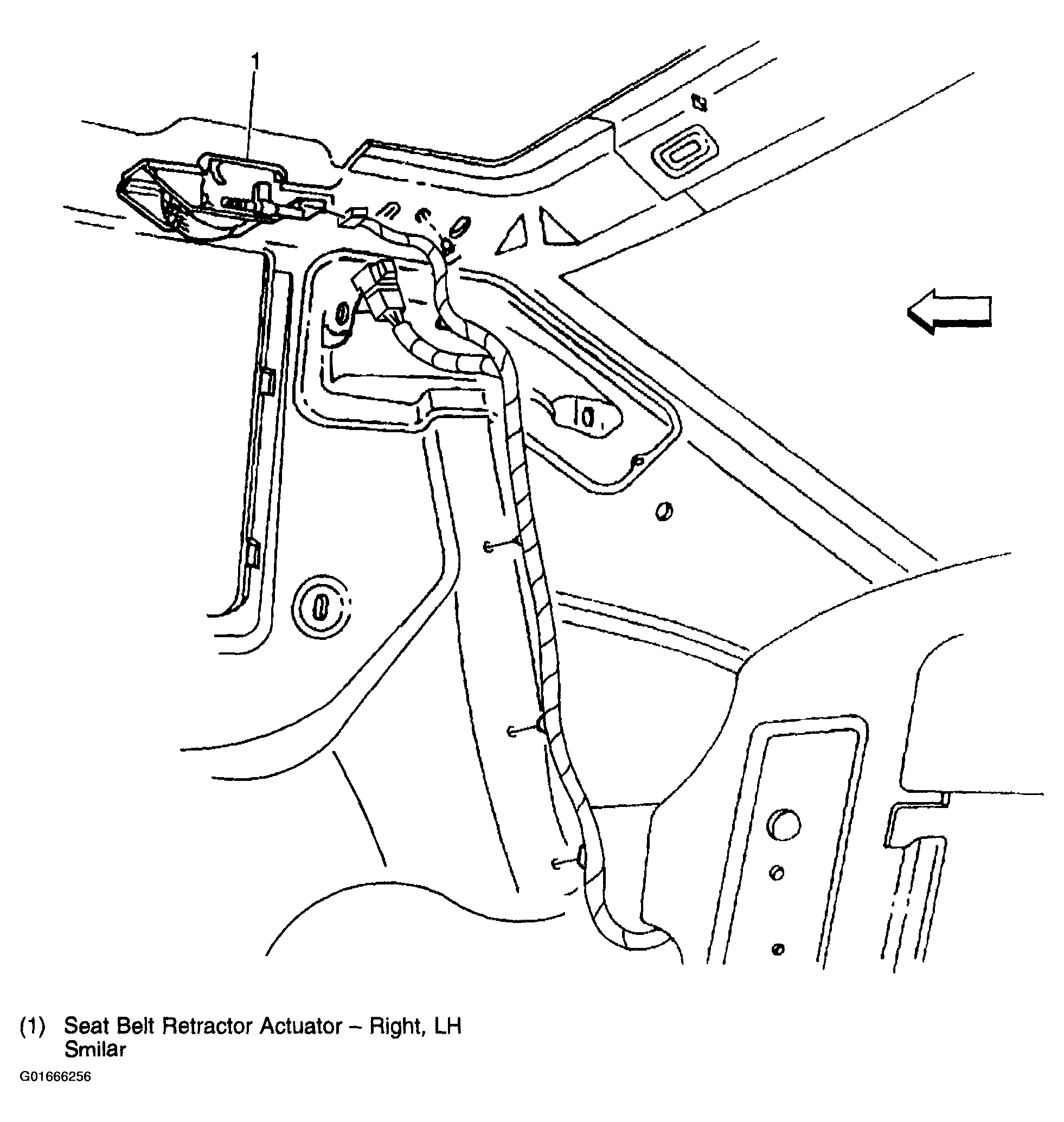

Fig 2: Seat Belt Retractor Actuator - Right
G01666256Courtesy of GENERAL MOTORS CORP.
