Removal Procedure

  1. Remove the rear shaft panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the fasteners retaining the child restraint tether anchors (1, 2) to the cross car beam that are being serviced.
  3. Remove the child restraint tether anchors center (1), outboard (2) from the vehicle.

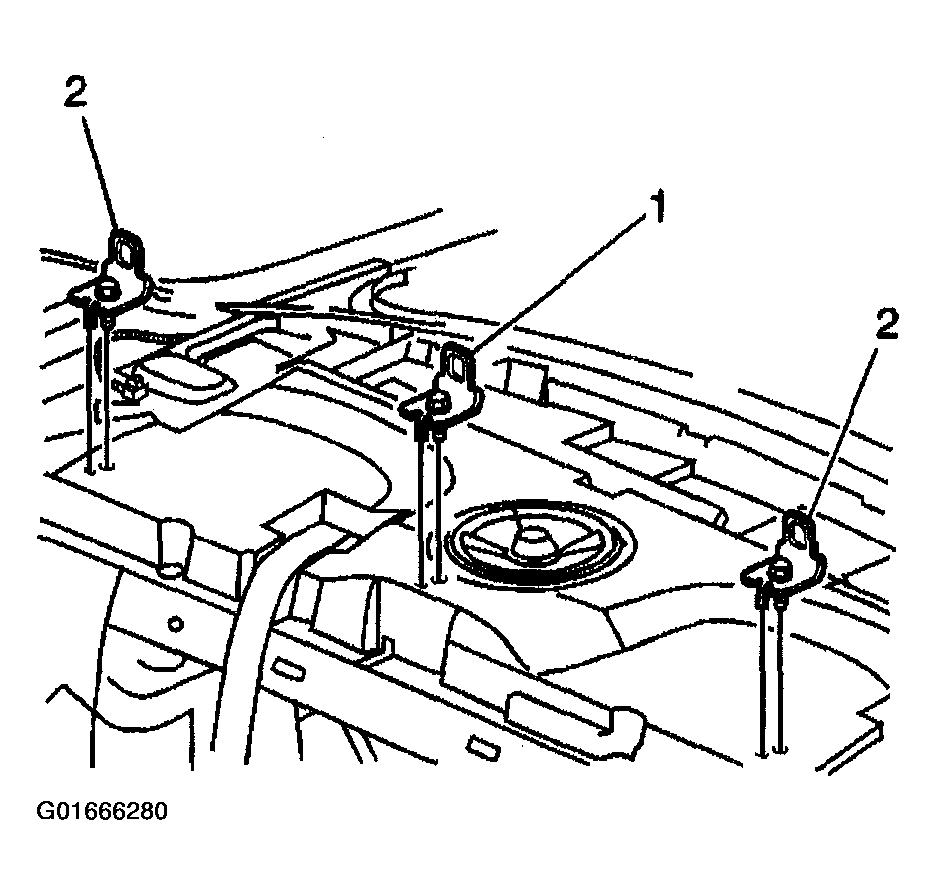

    Fig 1: Child Restraint Tether Anchors & Fasteners
    G01666280Courtesy of GENERAL MOTORS CORP.
