Power Steering Gear Disassembled View
Power Steering Gear Disassembled View

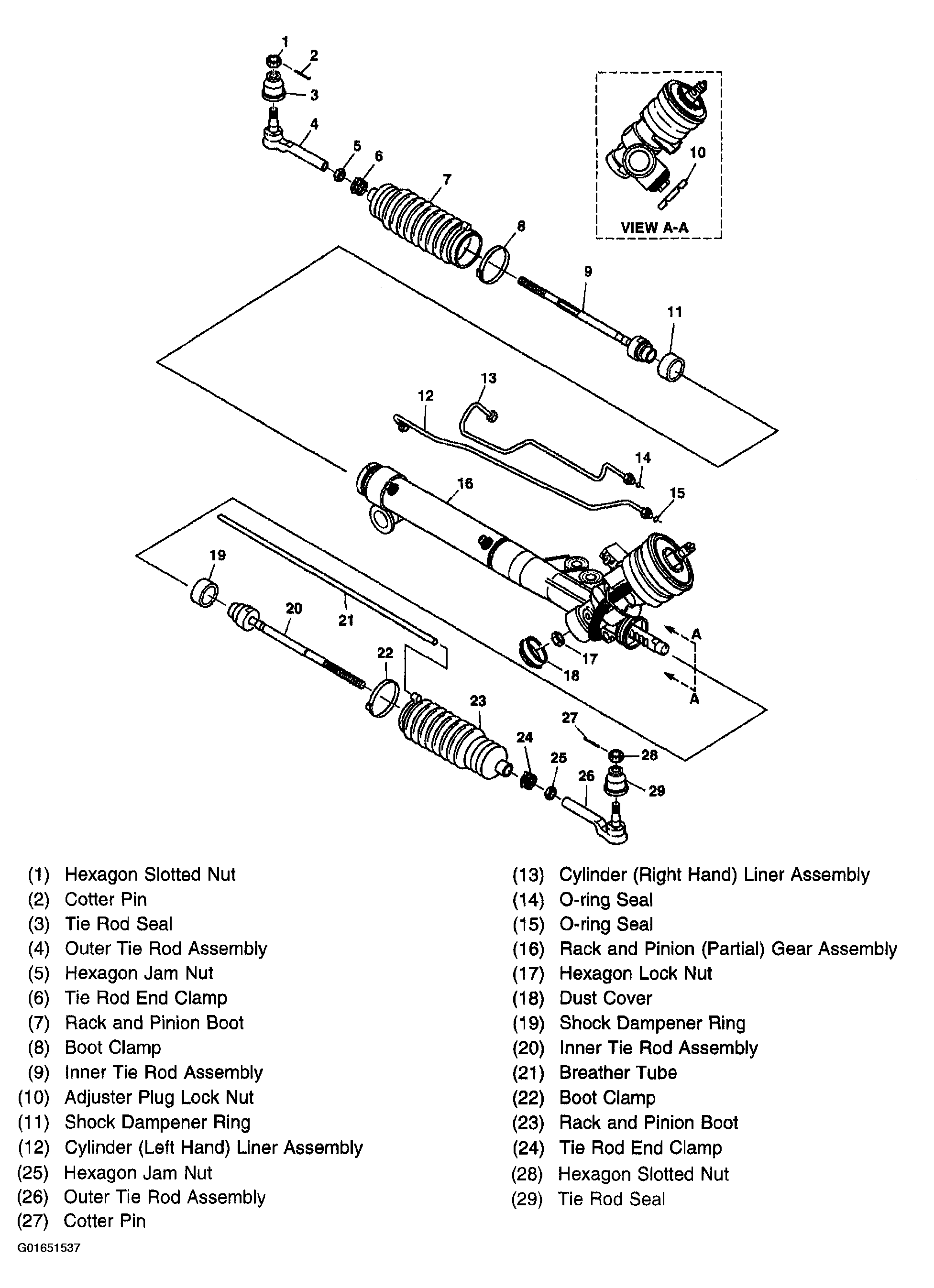

Fig 1: Power Rack & Pinion
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
