Power Steering Pump Disassembled View
Power Steering Pump Disassembled View

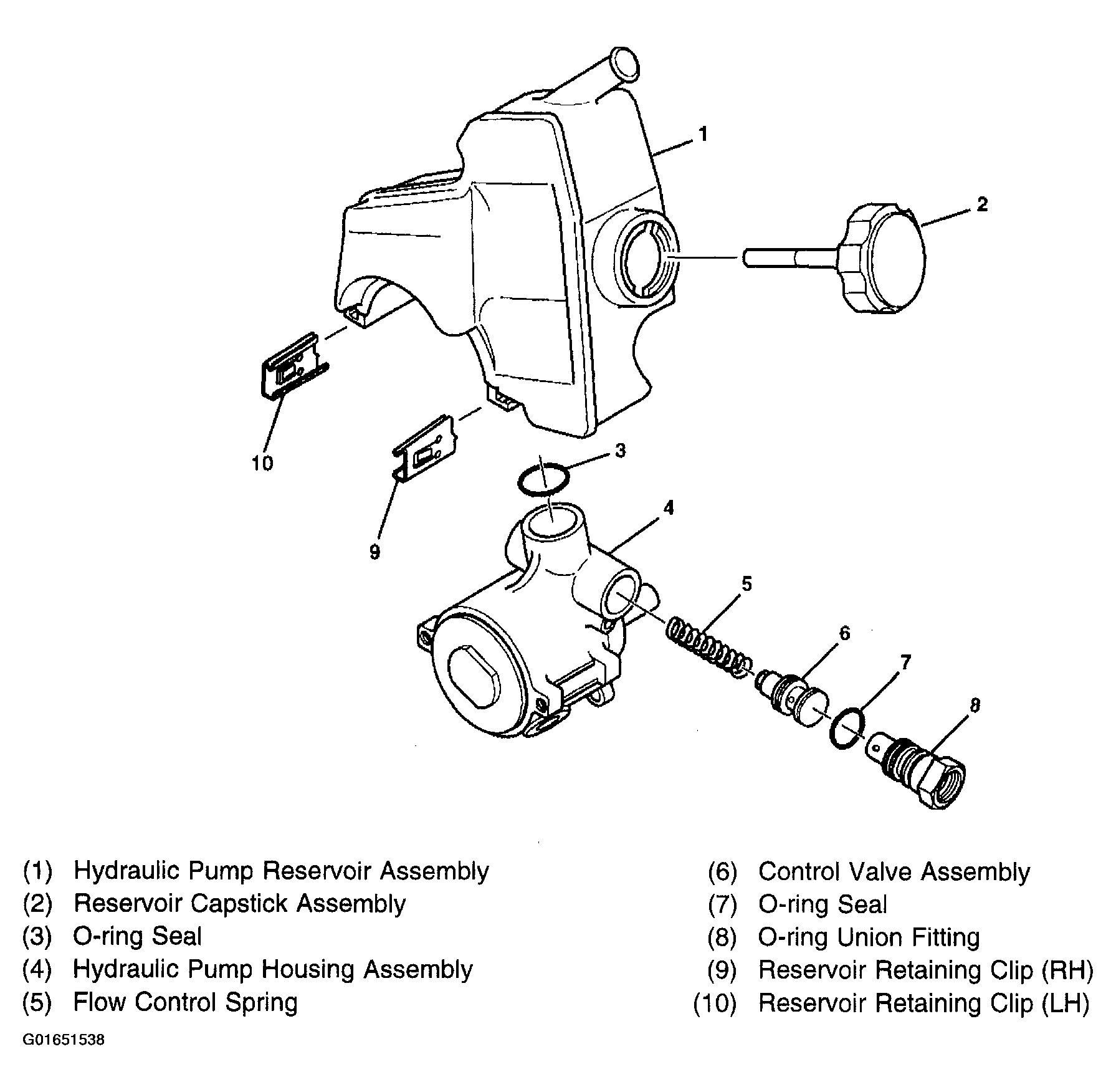

Fig 1: Power Steering Pump - TC Series
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
