Removal Procedure

CAUTION: If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.

Important  Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

  1. Open the rear compartment lid in order to access the reveal molding (1).
  2. Remove the rear window reveal molding (1). Refer to Urethane Adhesive Installation of Stationary Windows .
  3. Remove the Onstar™ antenna. Refer to COUPLING REPLACEMENT - ANTENNA INNER or COUPLING REPLACEMENT - ANTENNA OUTER .
  4. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  5. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  6. Remove the rear quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER .
  7. Remove the headliner. Refer to HEADLINER REPLACEMENT .
    CAUTION: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
  8. Cover to protect and following parts from broken glass.
    1. 8.1. Upper dash pad
    2. 8.2. Defroster outlets and A/C outlets
    3. 8.3. Seats and carpeting
  9. Disconnect the rear window electrical connectors.

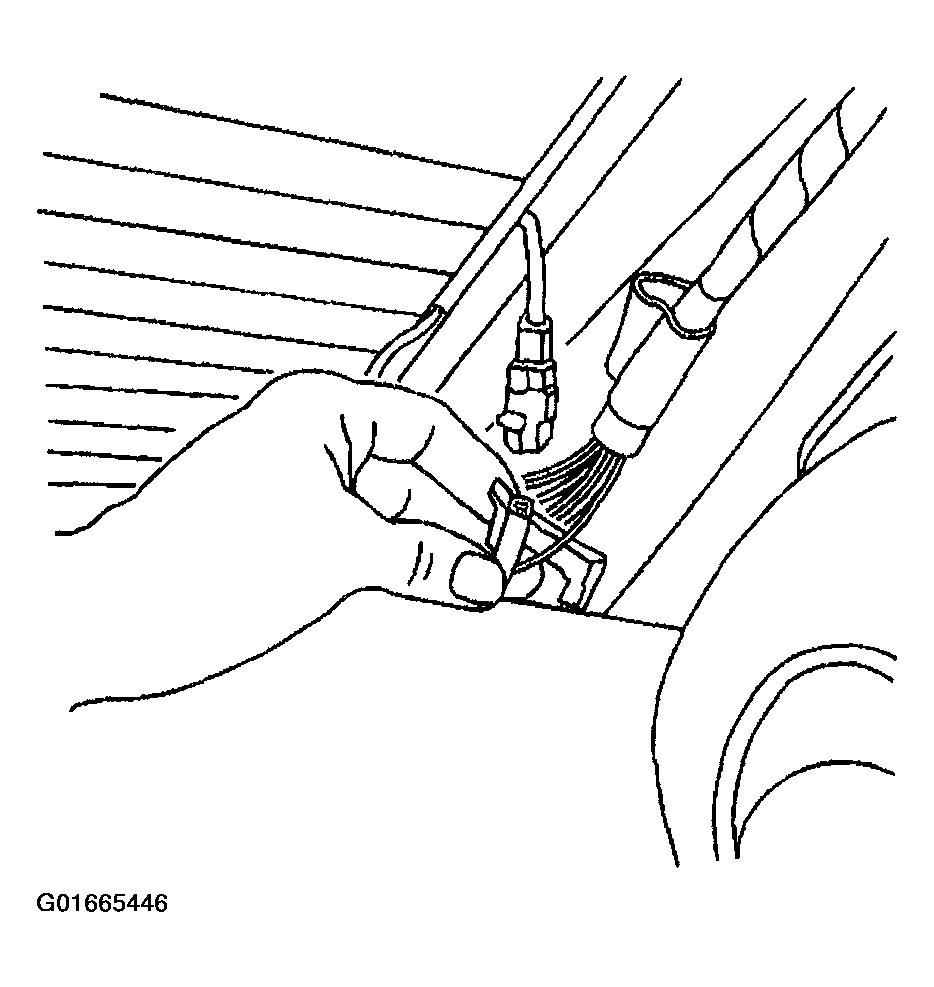

    Fig 1: Disconnecting Rear Window Electrical Connectors
    G01665446Courtesy of GENERAL MOTORS CORP.

    Important  Keep the cutting edge of the tool against the window.

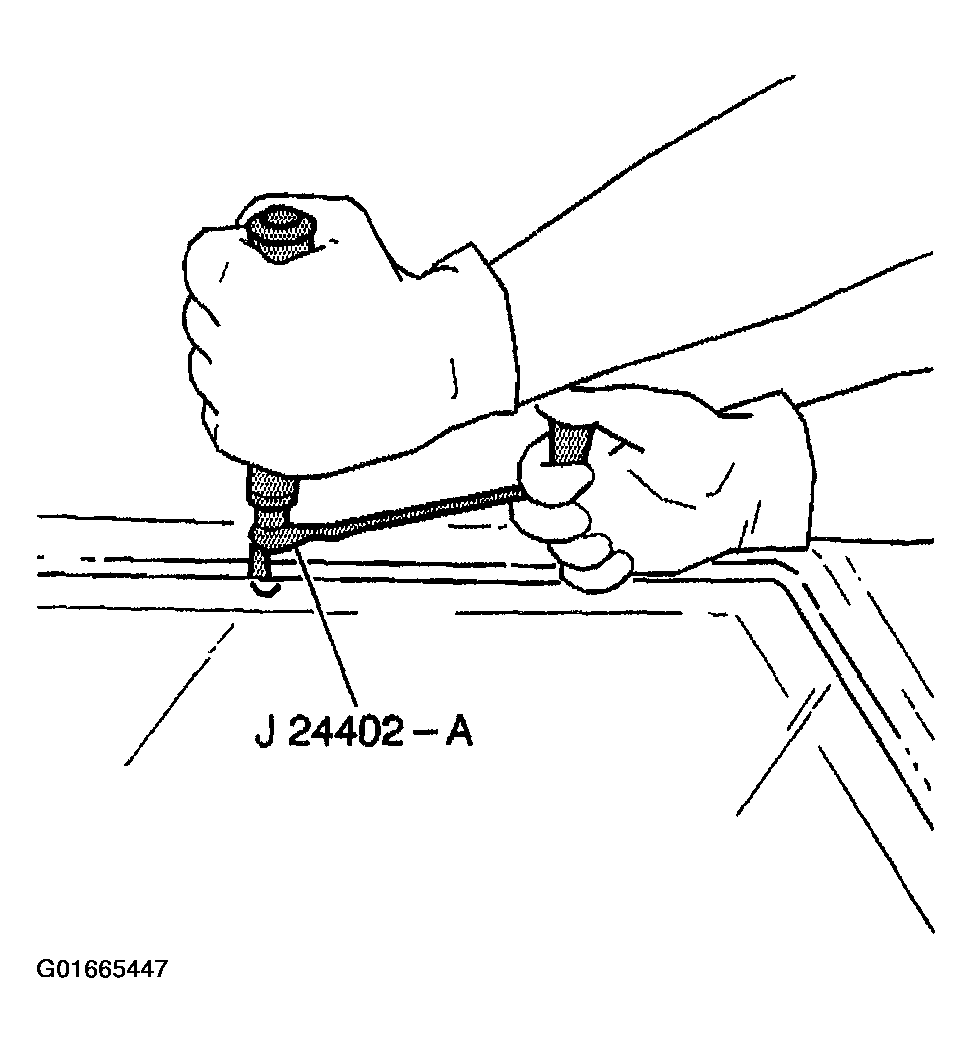

    Fig 2: Using J 24402-A
    G01665447Courtesy of GENERAL MOTORS CORP.
  10. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable is clear water.
    • Use J 24402-A, J 39032  or equivalent in order to remove the window.
  11. Remove the rear window reveal molding.
    1. 11.1. Grasp the lower corner of the rear window reveal molding by hand and slowly pull the reveal away from the rear window.
    2. 11.2. If the rear window reveal molding will not release, use a utility knife in order to cut around the rear window in order to remove the rear window reveal molding.
  12. With the aid of an assistant, use the suction cups in order to lift the rear window from the opening.

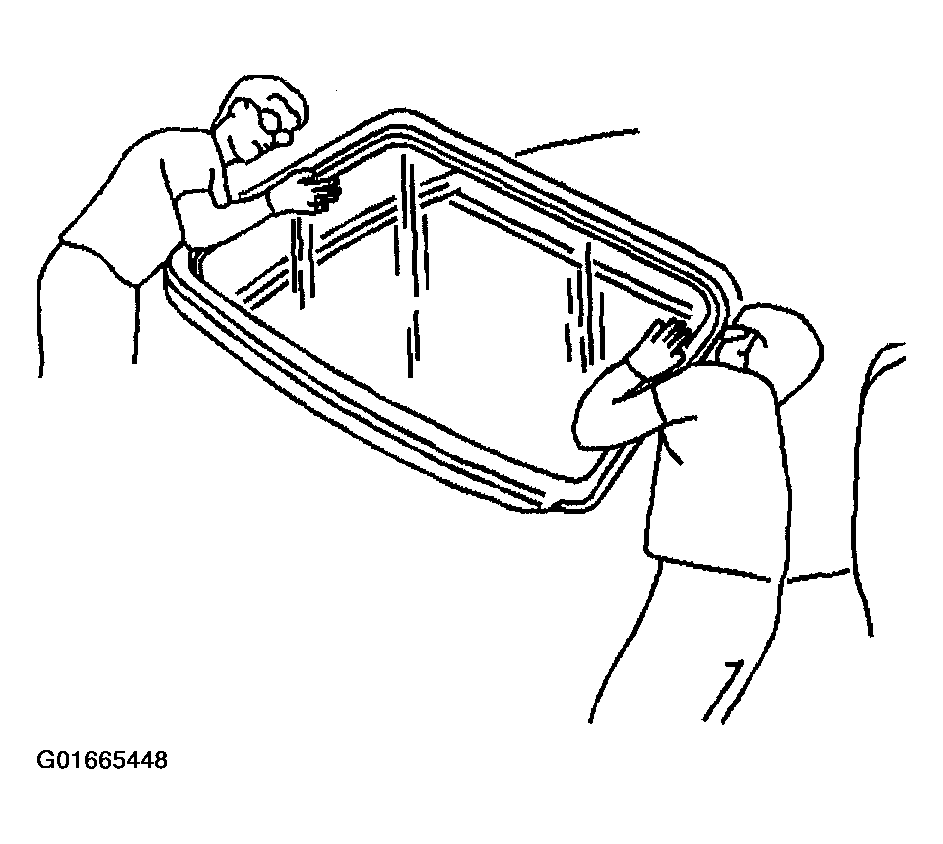

    Fig 3: Removing Rear Window
    G01665448Courtesy of GENERAL MOTORS CORP.
