Scan Tool Data List

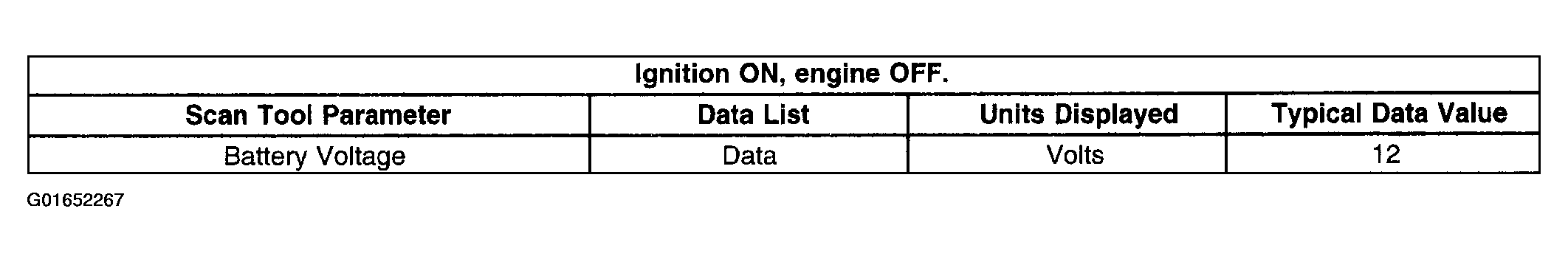

Fig 1: Body Control Module (PZM)

Courtesy of GENERAL MOTORS CORP.

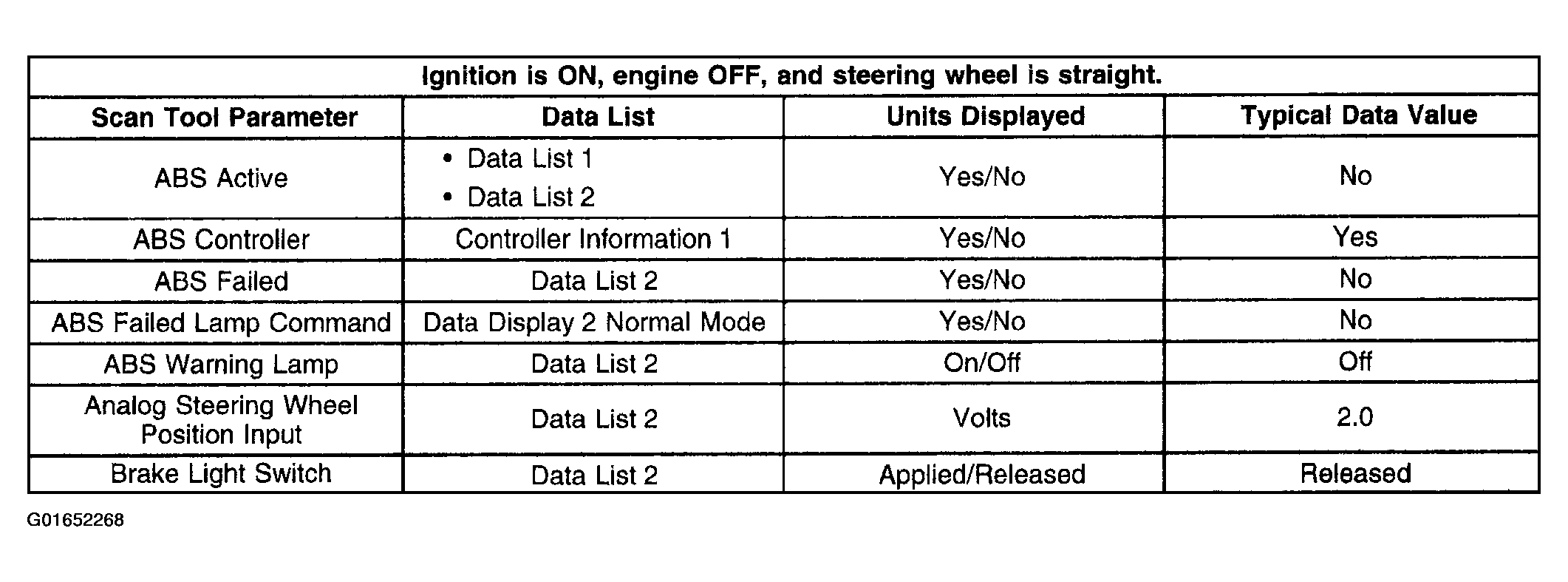

Fig 2: Electronic Brake Control Module (EBCM) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

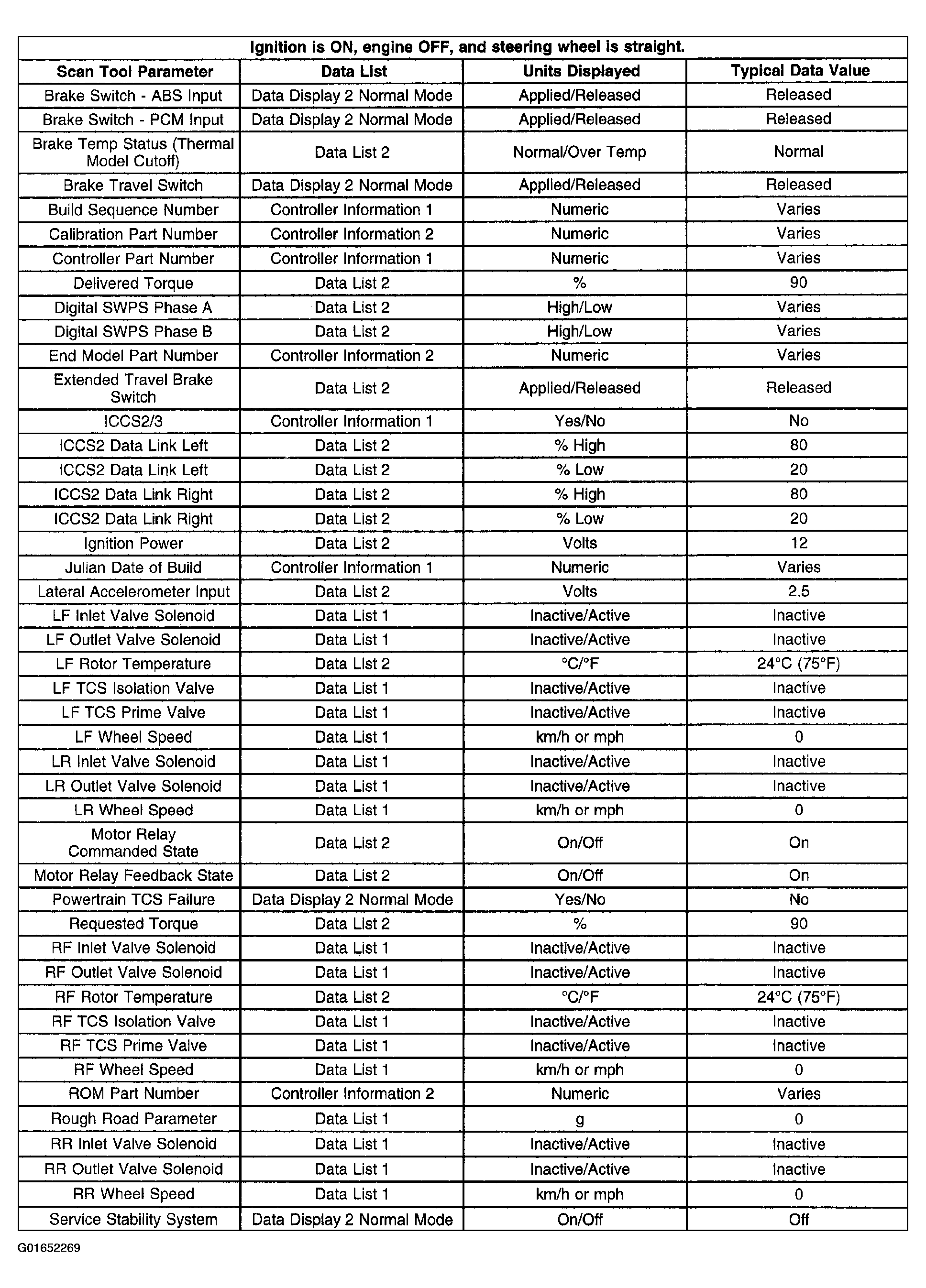

Fig 3: Electronic Brake Control Module (EBCM) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

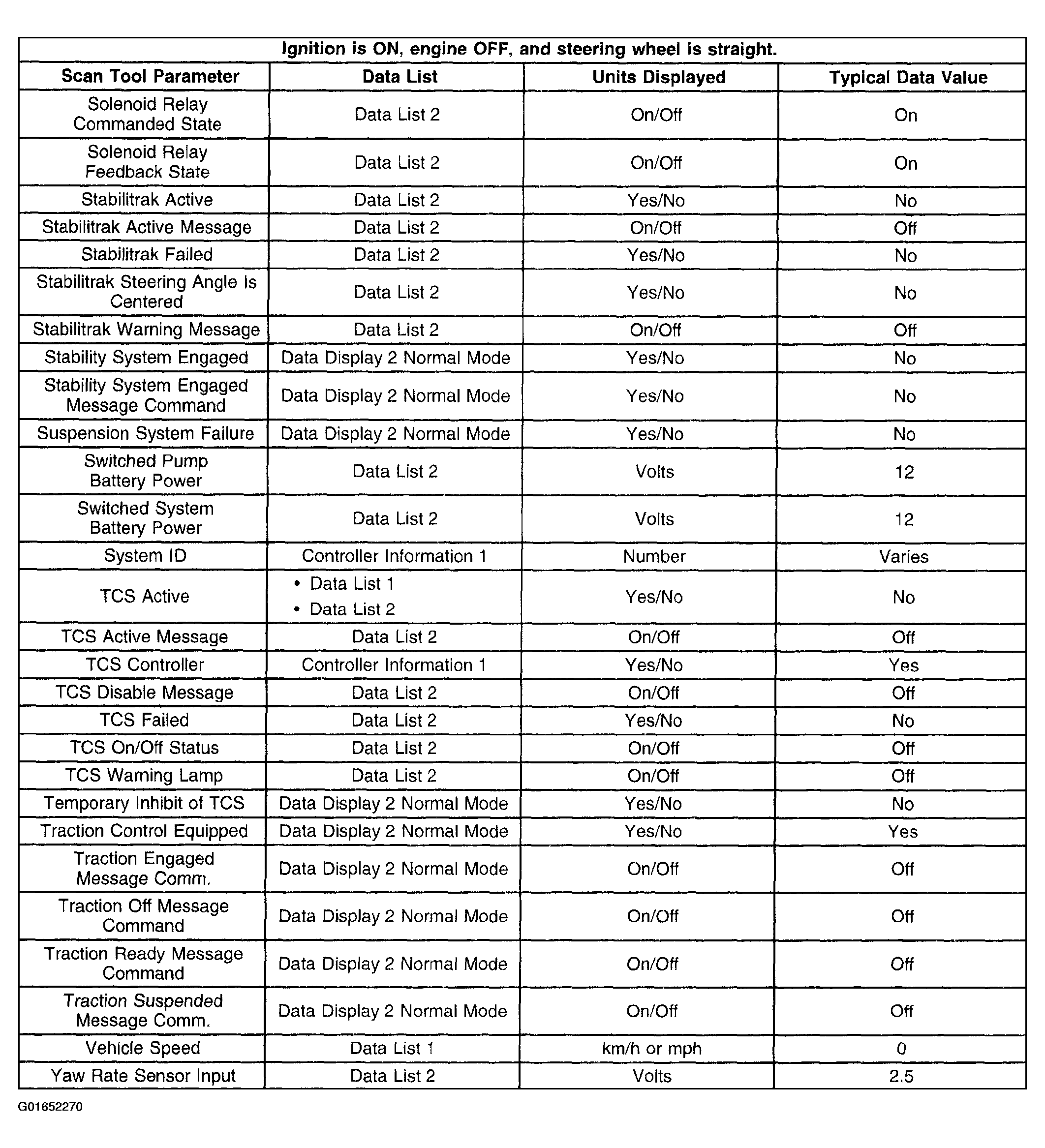

Fig 4: Electronic Brake Control Module (EBCM) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

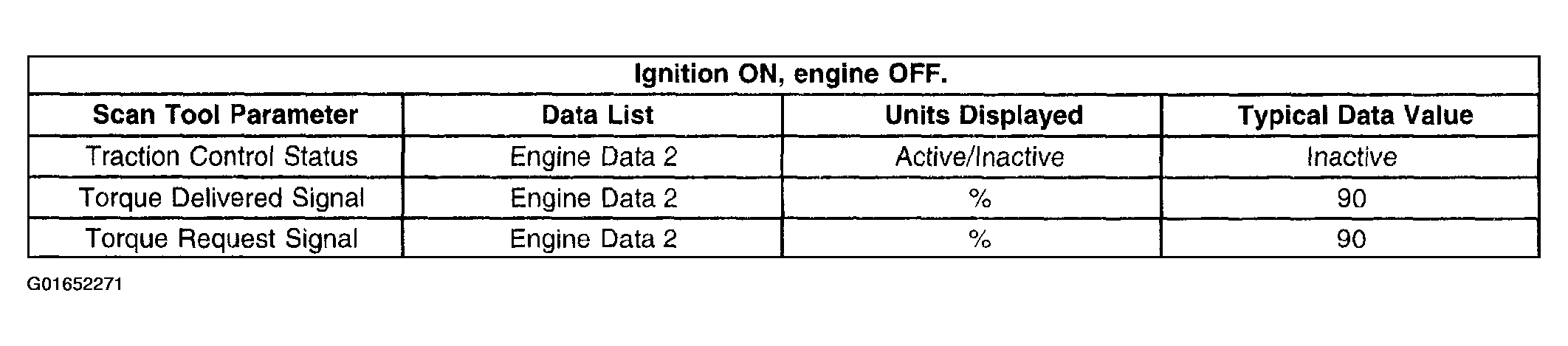

Fig 5: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
