Retained Accessory Power System
›
Component Locator
›
Retained Accessory Power (RAP) Connector End Views
Retained Accessory Power (RAP) Connector End Views

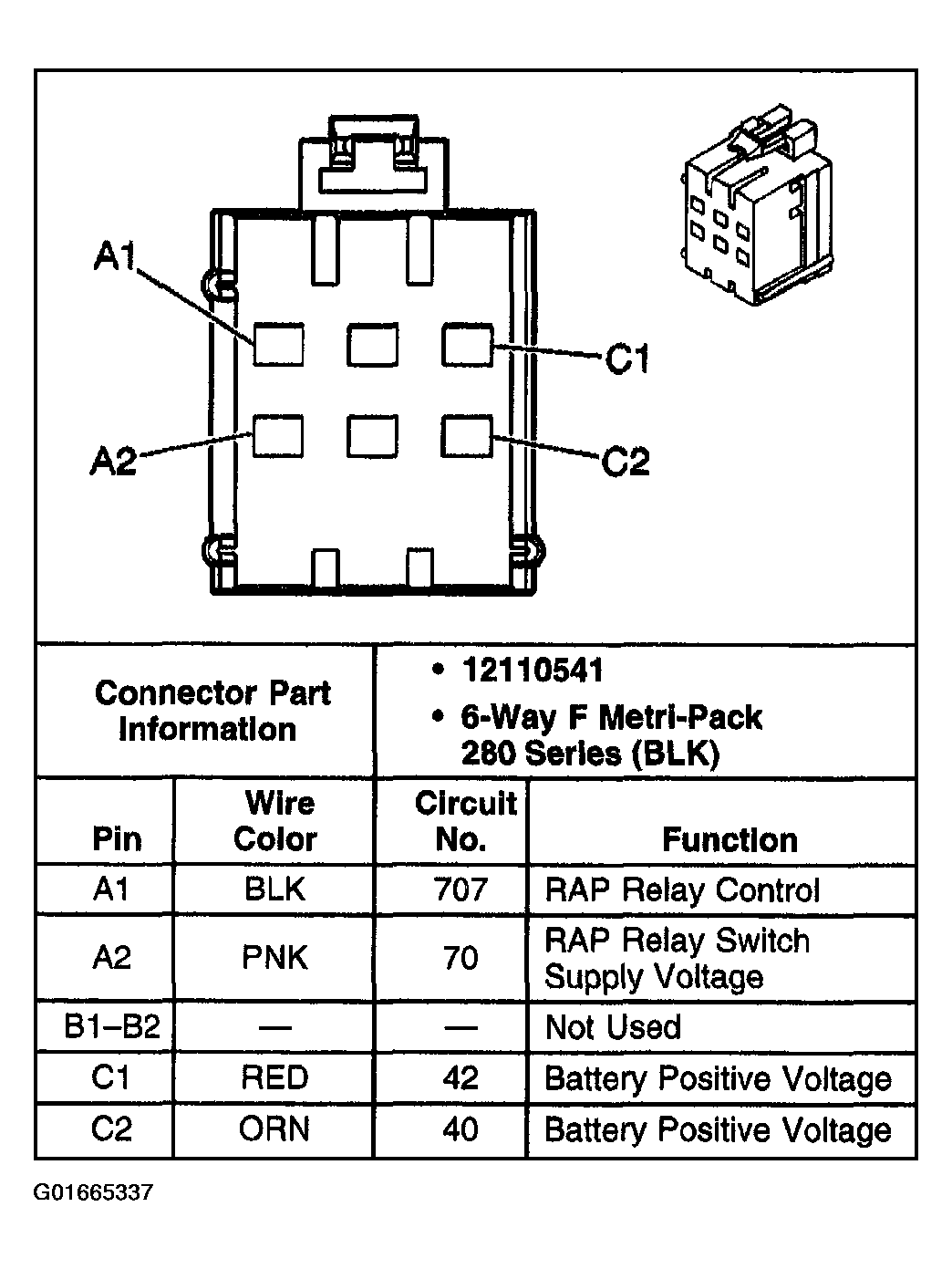

Fig 1: Retained Accessory Power (RAP) Relay
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
