Power Sunroof Switch Connector End View
Power Sunroof Switch Connector End View

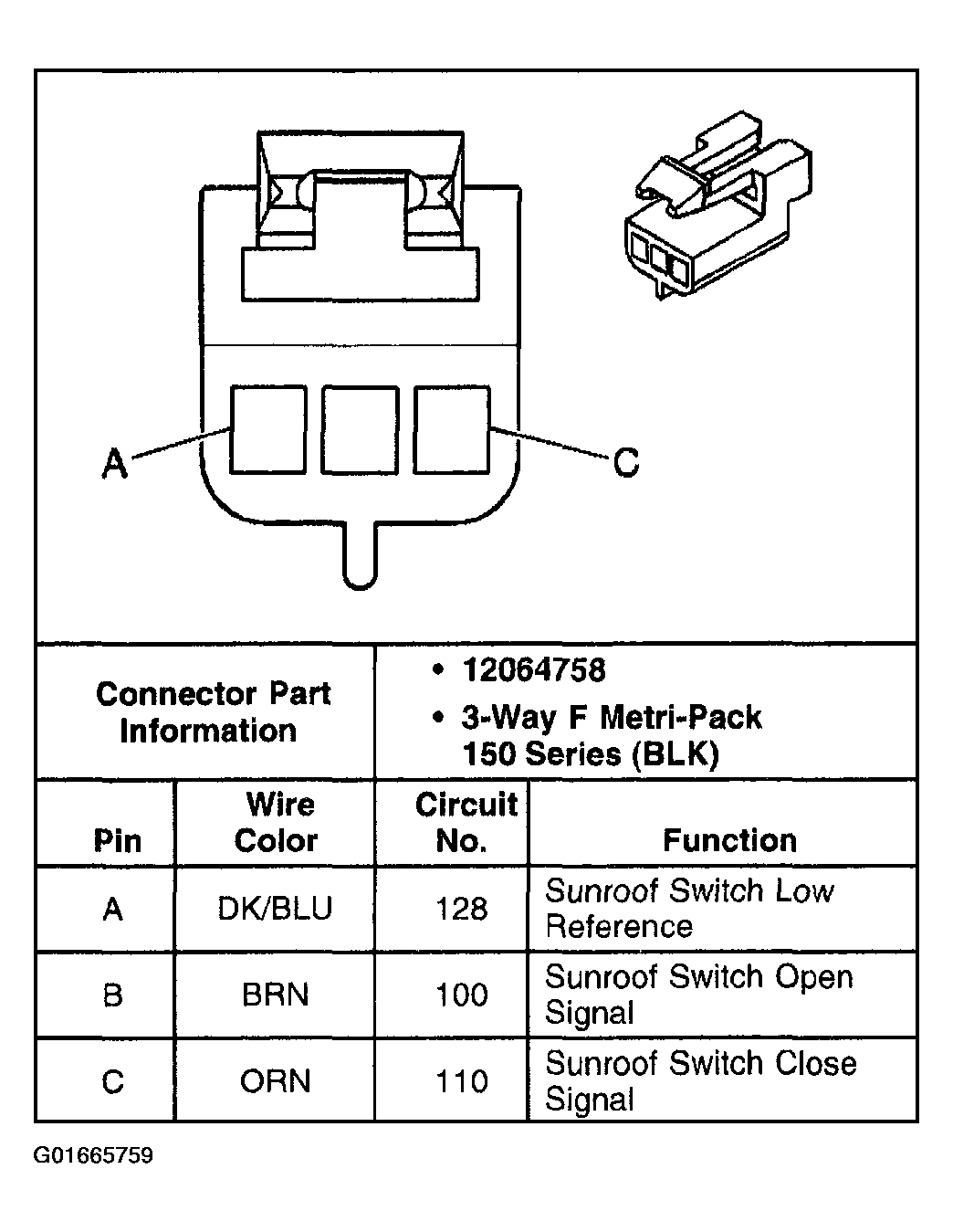

Fig 1: Power Sunroof Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
