Seat Belt Connector End Views

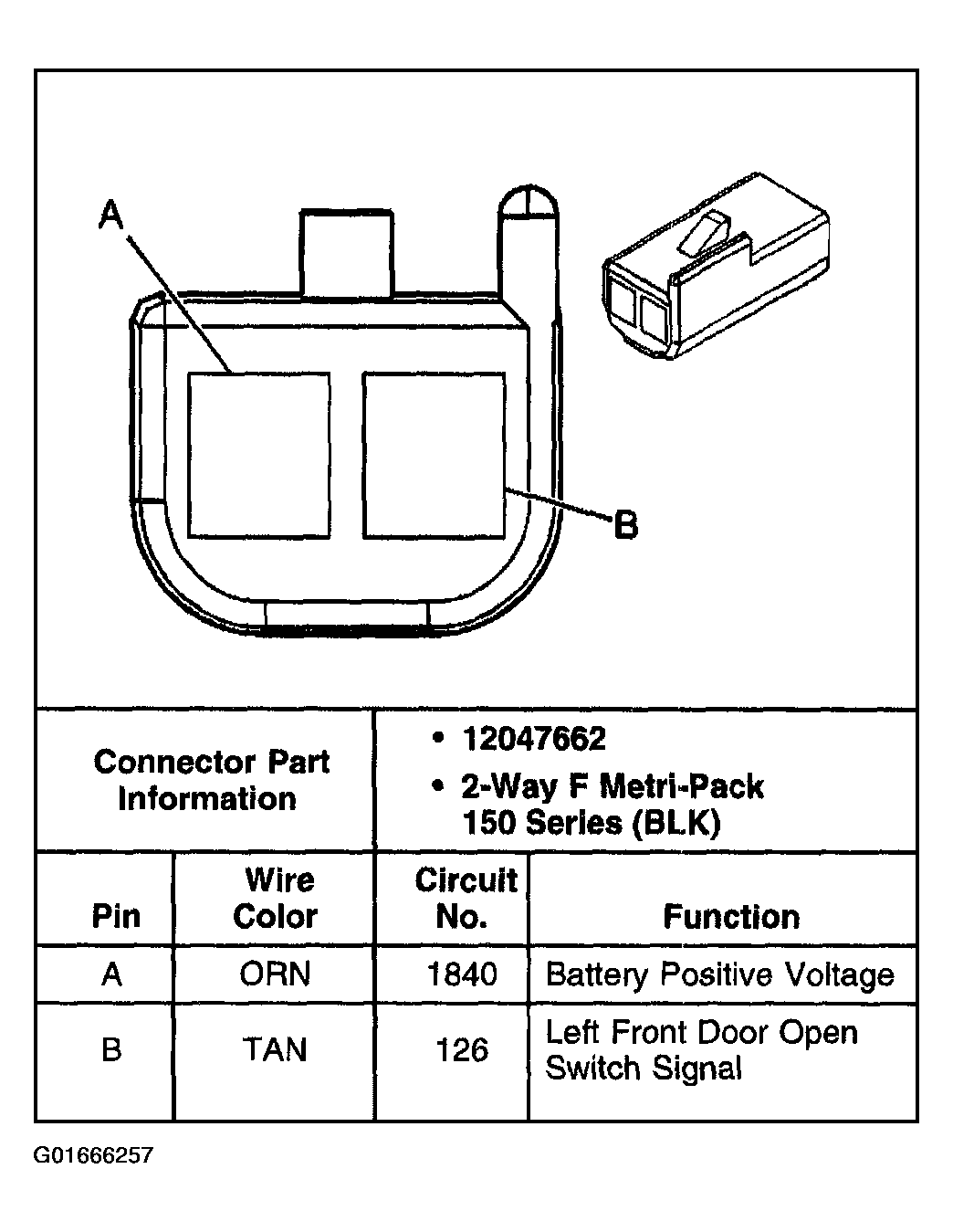

Fig 1: Seat Belt Retractor Actuator Connector End View - Left
G01666257Courtesy of GENERAL MOTORS CORP.

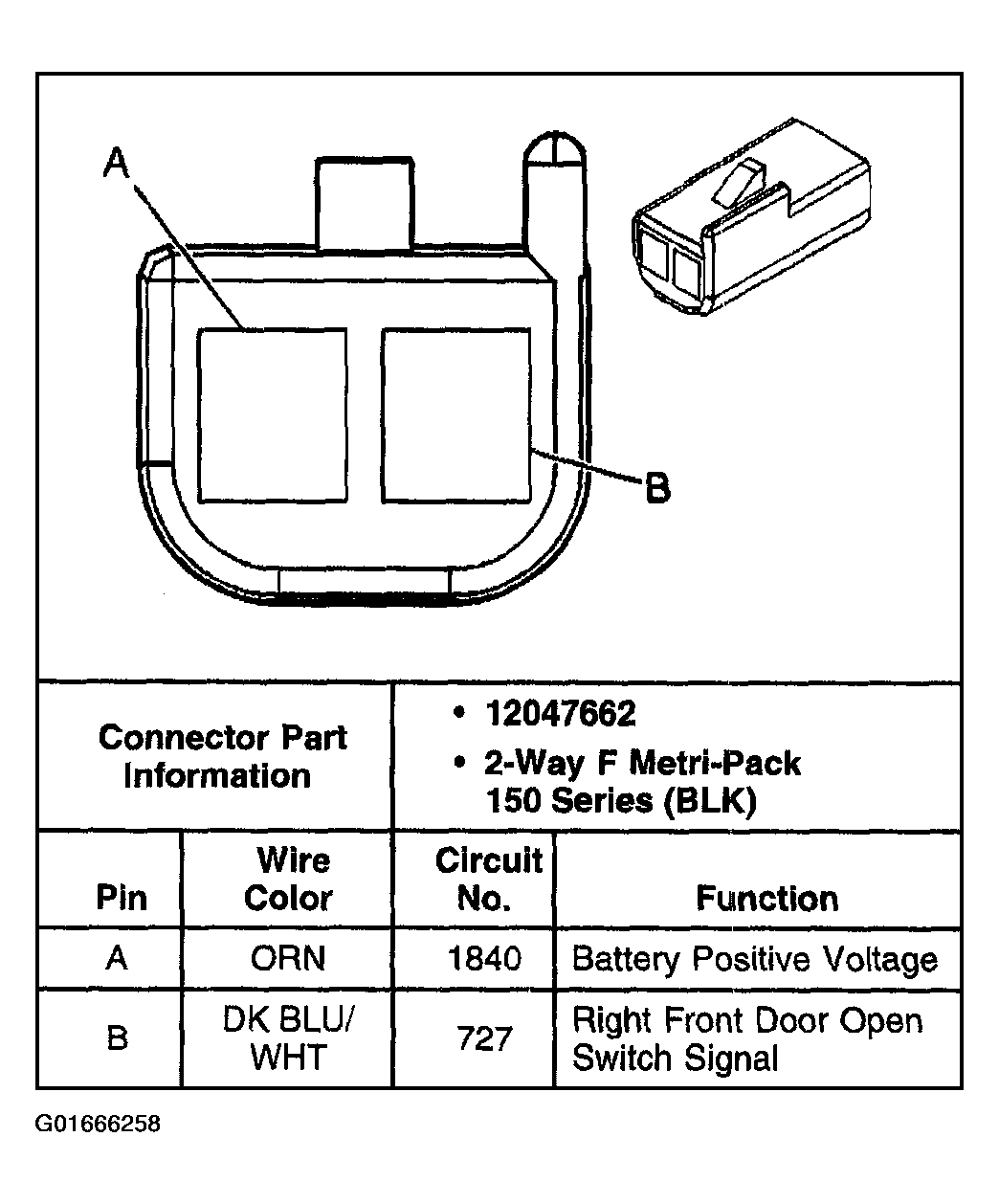

Fig 2: Seat Belt Retractor Actuator Connector End View - Right
G01666258Courtesy of GENERAL MOTORS CORP.

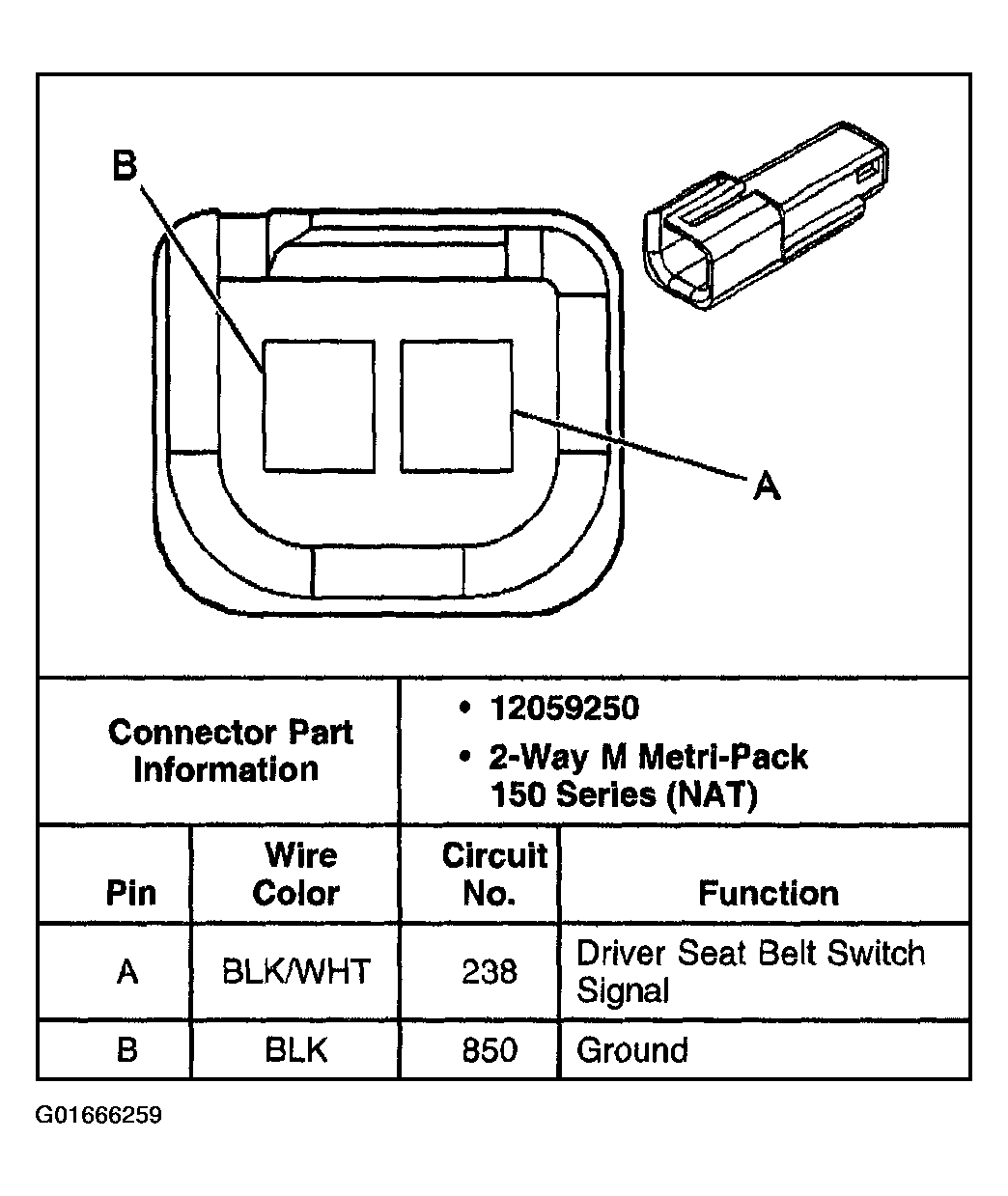

Fig 3: Seat Belt Switch Connector End View - LF
G01666259Courtesy of GENERAL MOTORS CORP.
