Engine Block-Front View

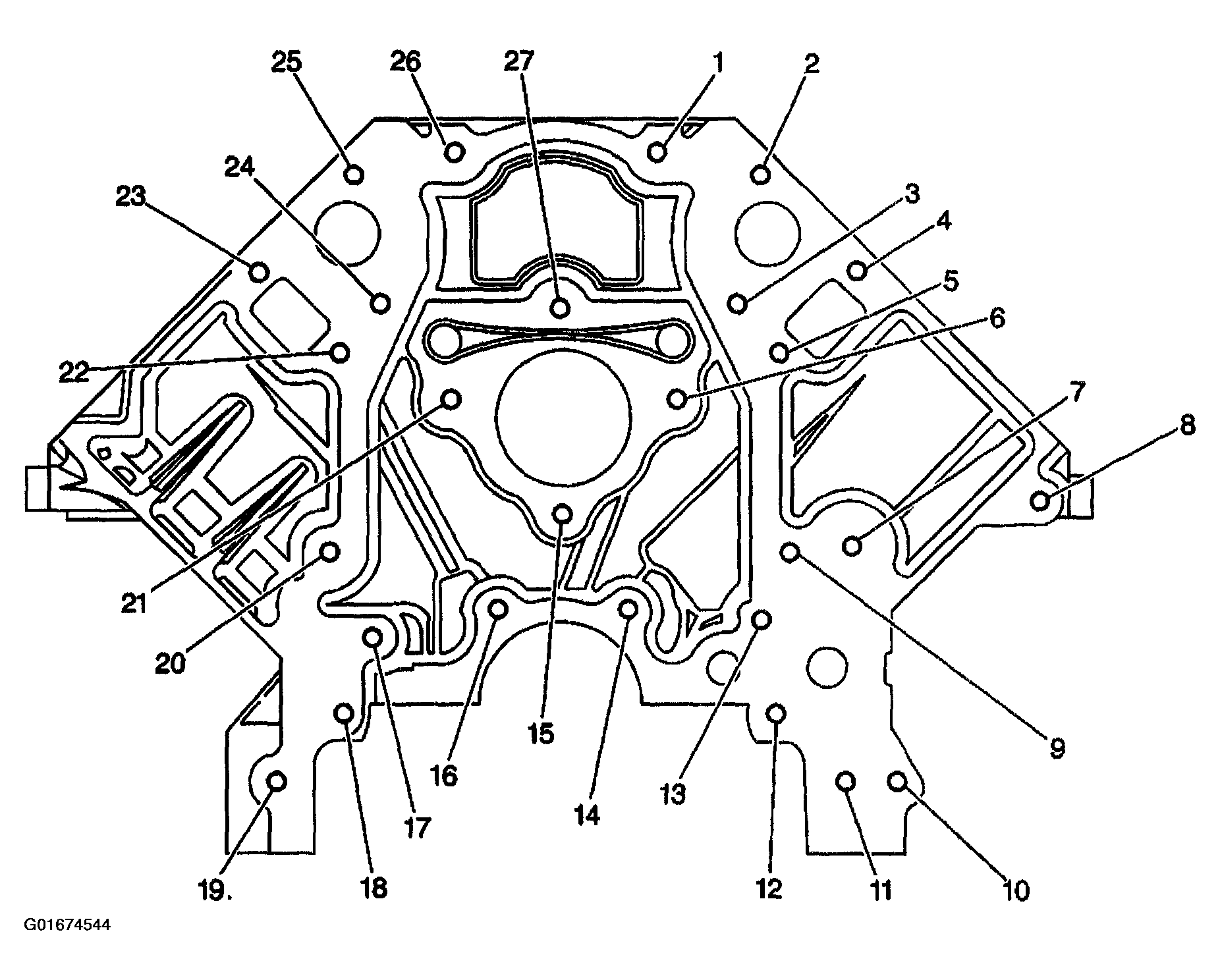

Fig 1: Engine Block - Front View
G01674544Courtesy of GENERAL MOTORS CORP.

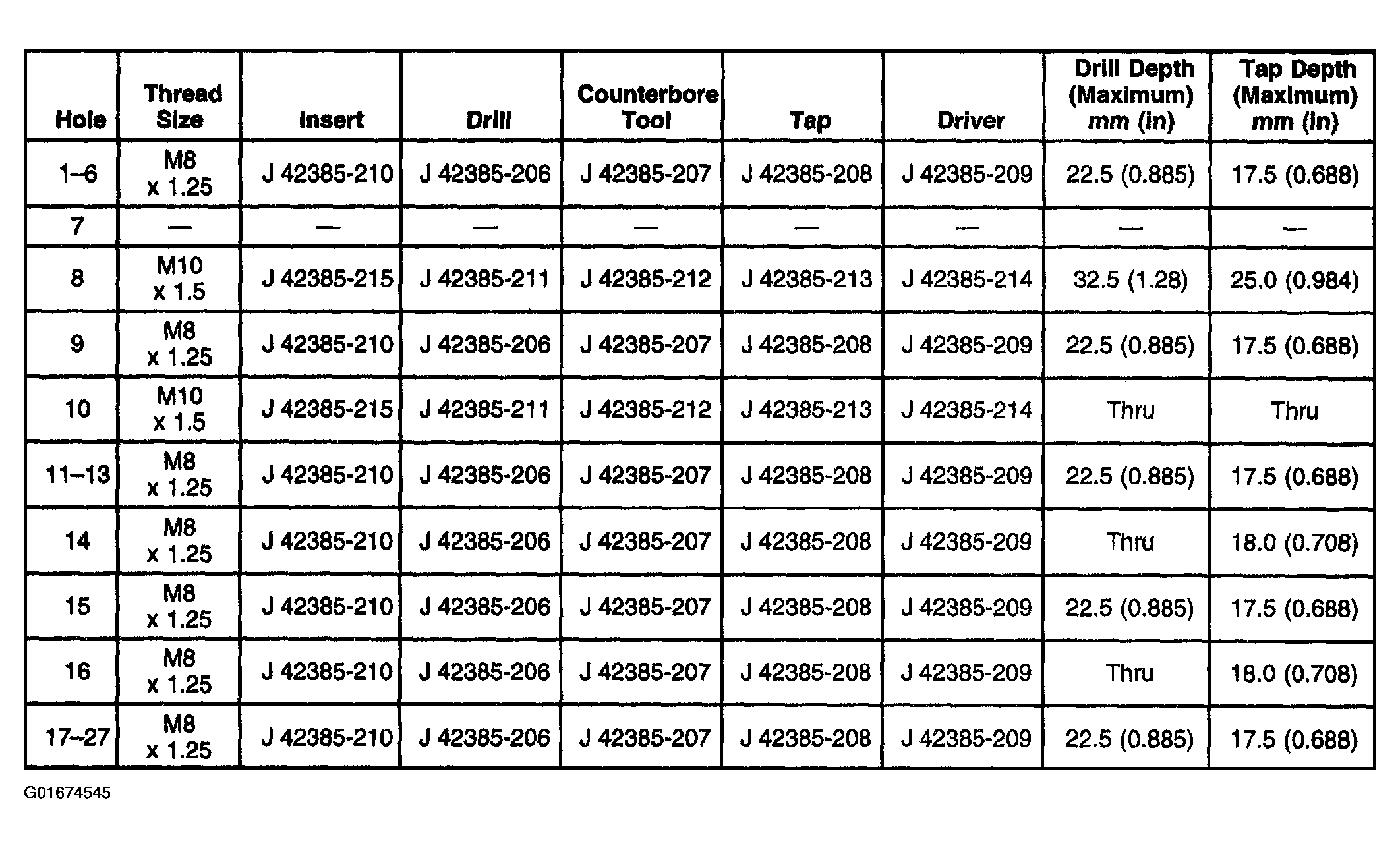

Fig 2: Engine Block - Front View Hole Thread Sizes
G01674545Courtesy of GENERAL MOTORS CORP.
