Keyless Entry Component Views

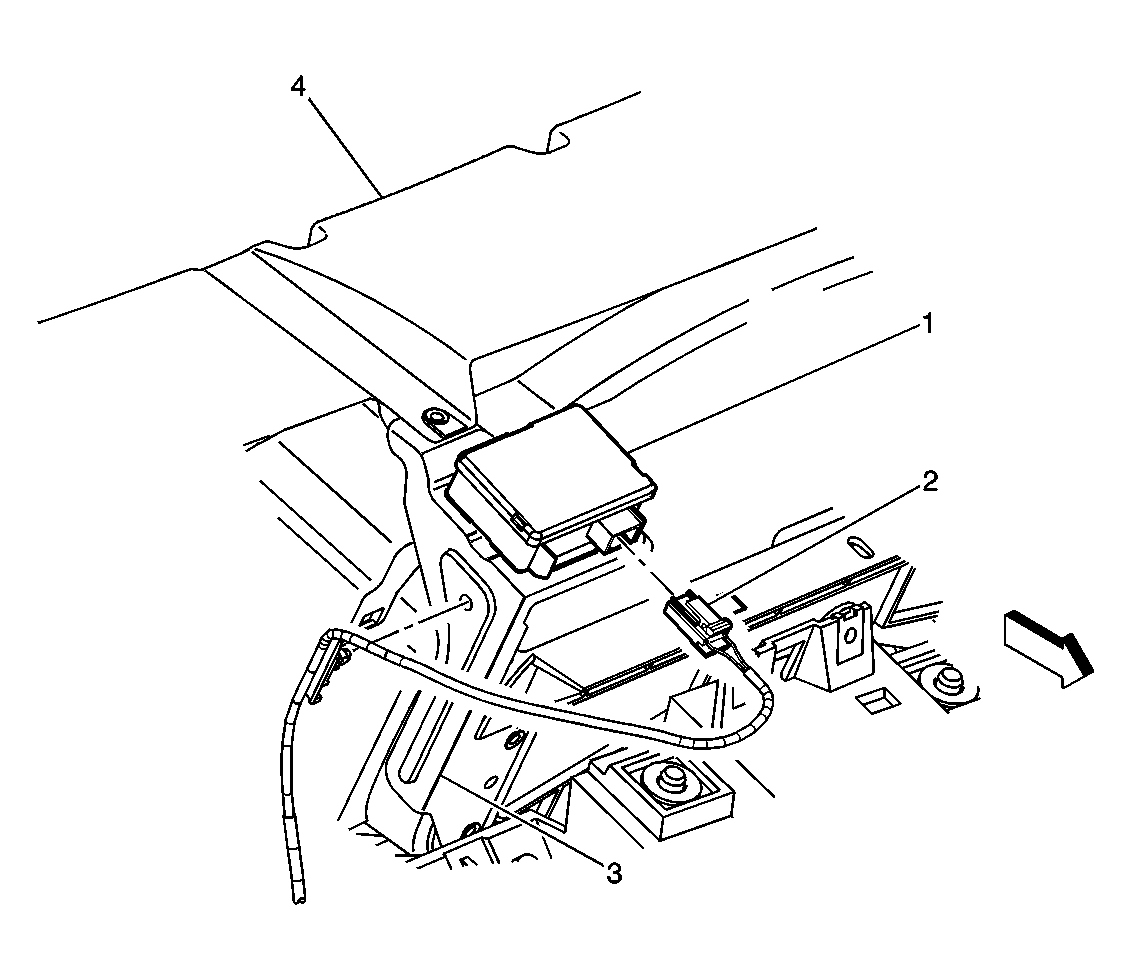

Fig 1: Remote Control Door Lock Receiver (Connector View)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Remote Control Door Lock Receiver Connector (RCDLR)
3	Instrument Panel Carrier
4	Instrument Panel Cluster (IPC)
