Cadillac
›
2002
›
Escalade EXT
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System
›
Schematic and Routing Diagrams
›
Keyless Entry Schematics
Keyless Entry Schematics

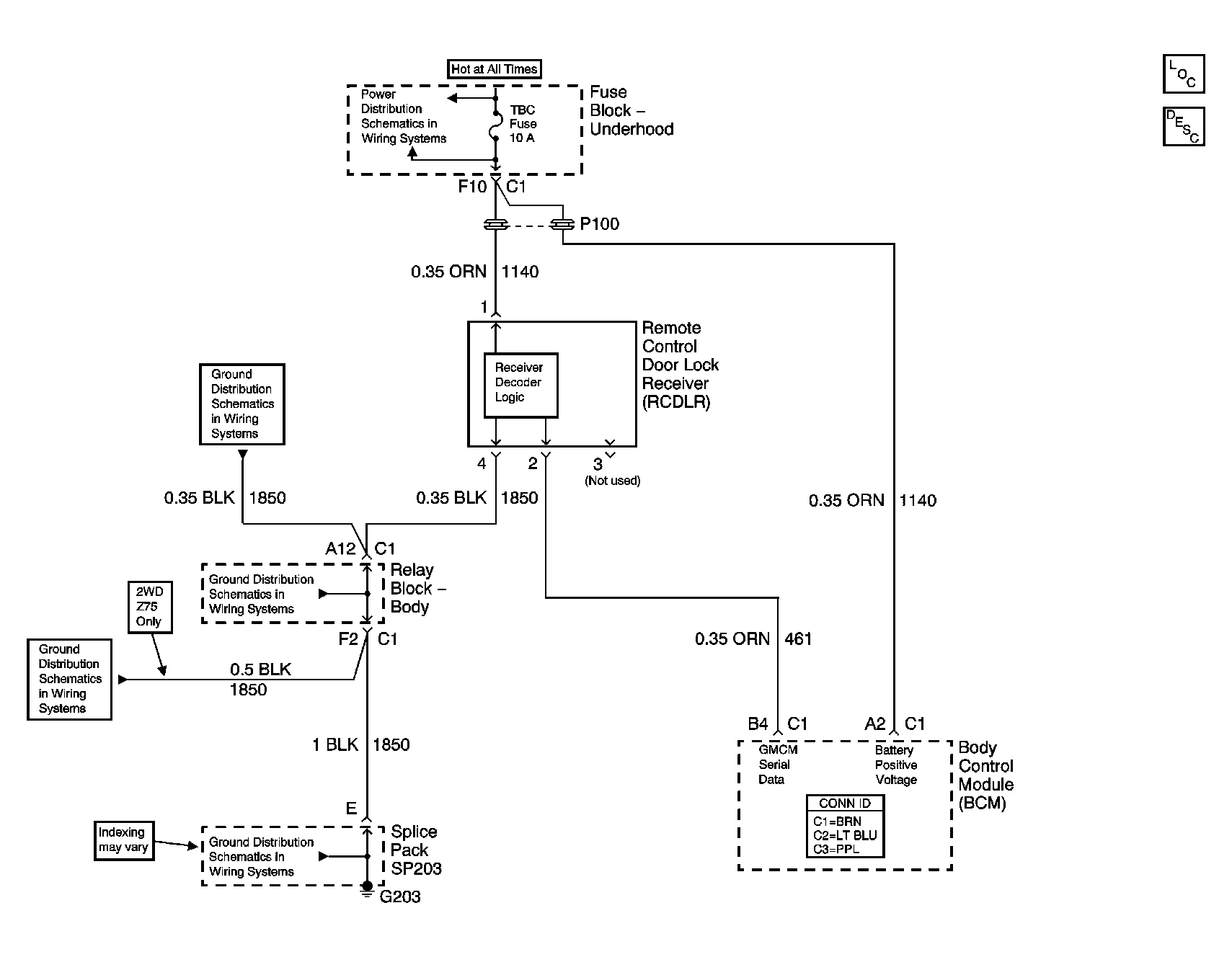

Fig 1: Keyless Entry Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
