Defogger Schematics

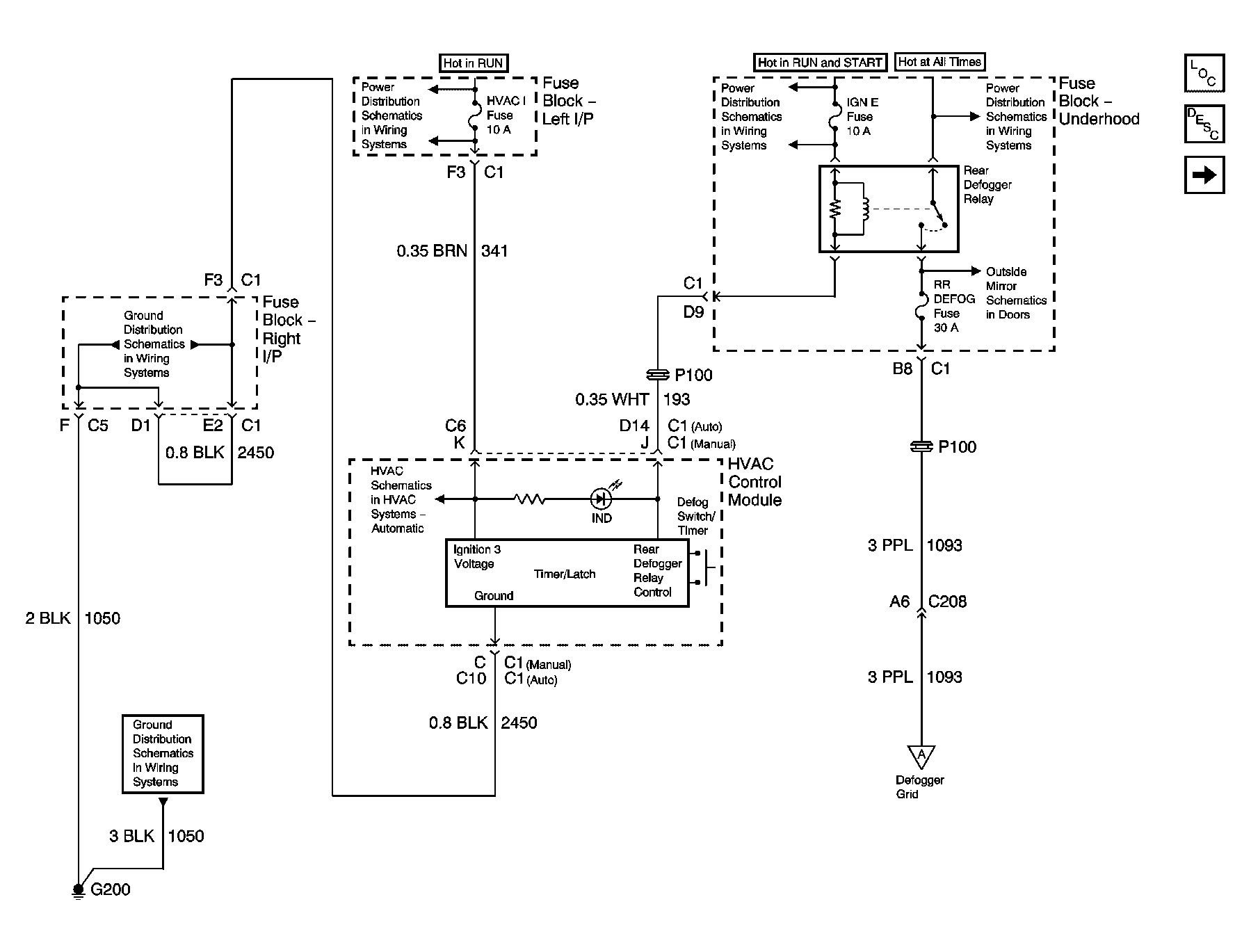

Fig 1: Rear Window Defogger Control
GM744935Courtesy of GENERAL MOTORS CORP.

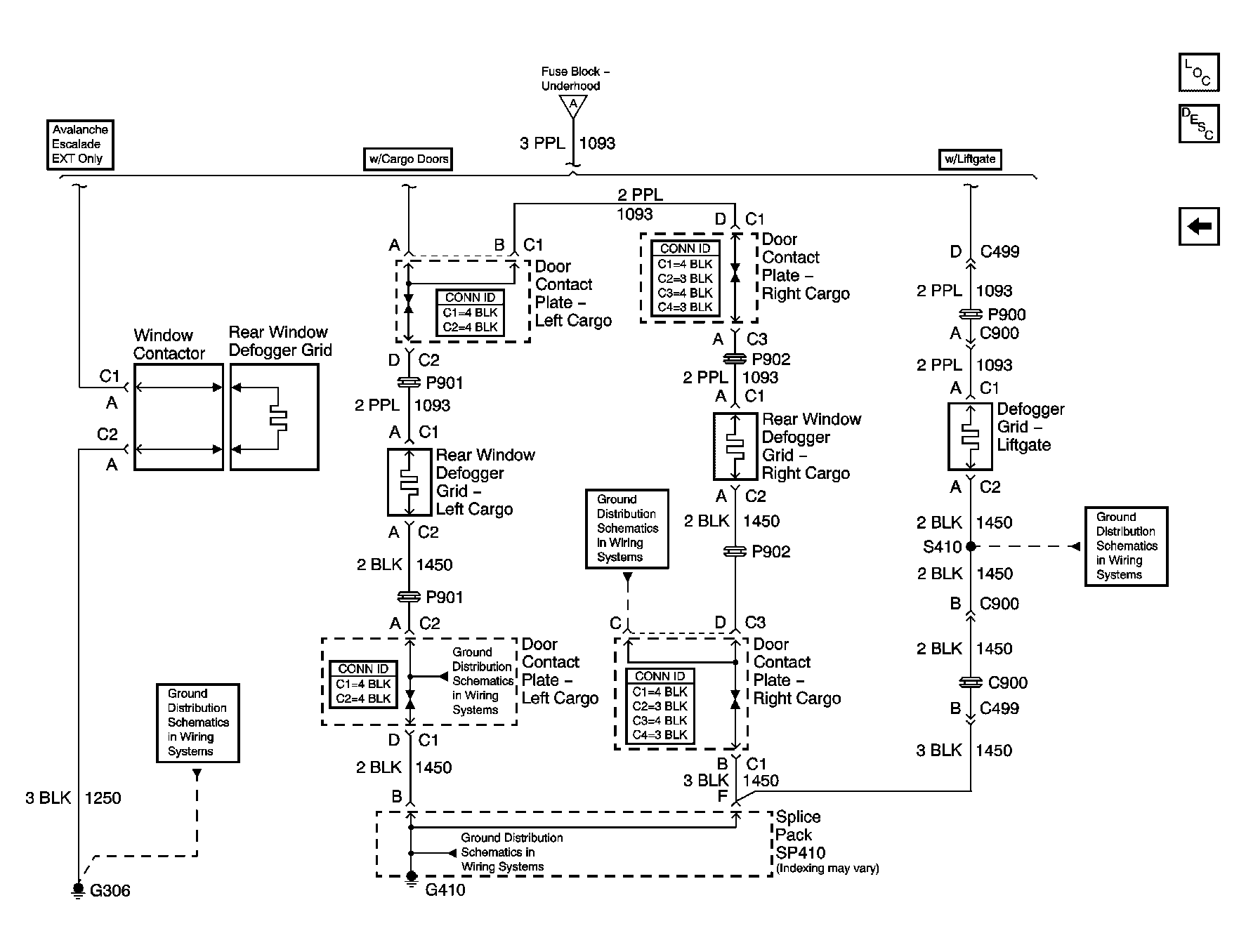

Fig 2: Defogger Grid and Ground
GM744936Courtesy of GENERAL MOTORS CORP.
