Outside Mirror Schematics

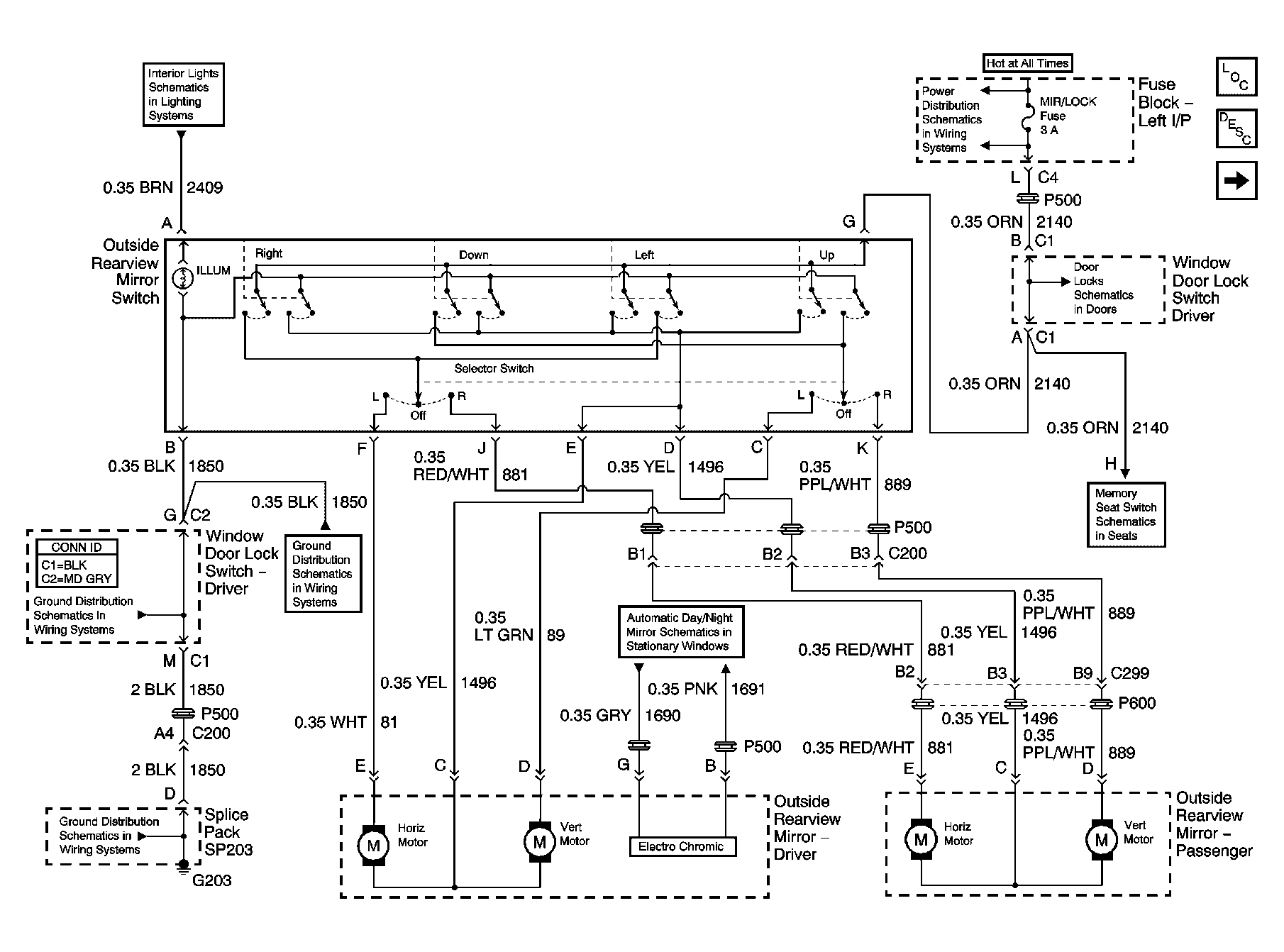

Fig 1: Outside Rearview Mirror Switch and Motors-Except Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

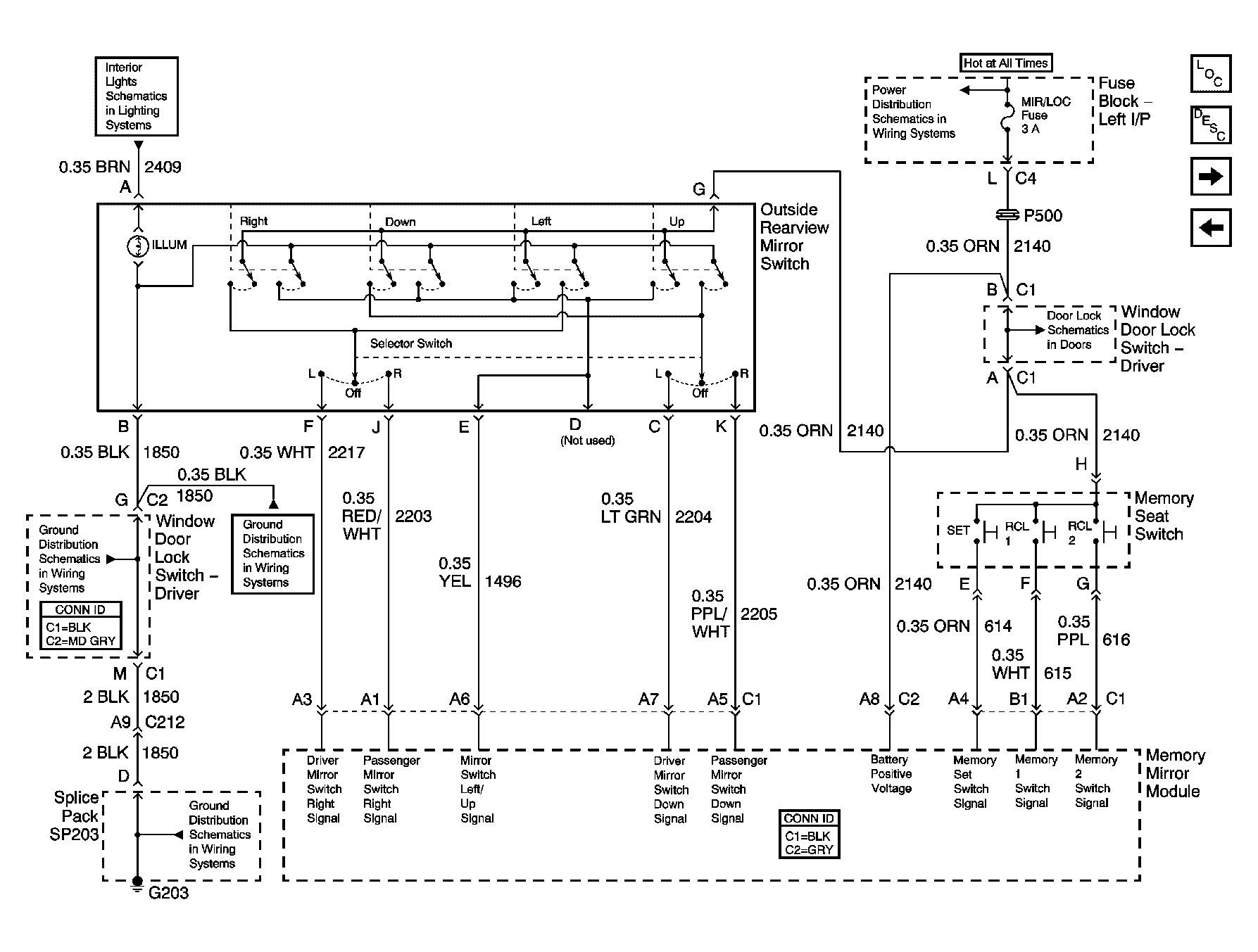

Fig 2: Power, Outside Rearview Mirror Switch and Memory Seat Switch-Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

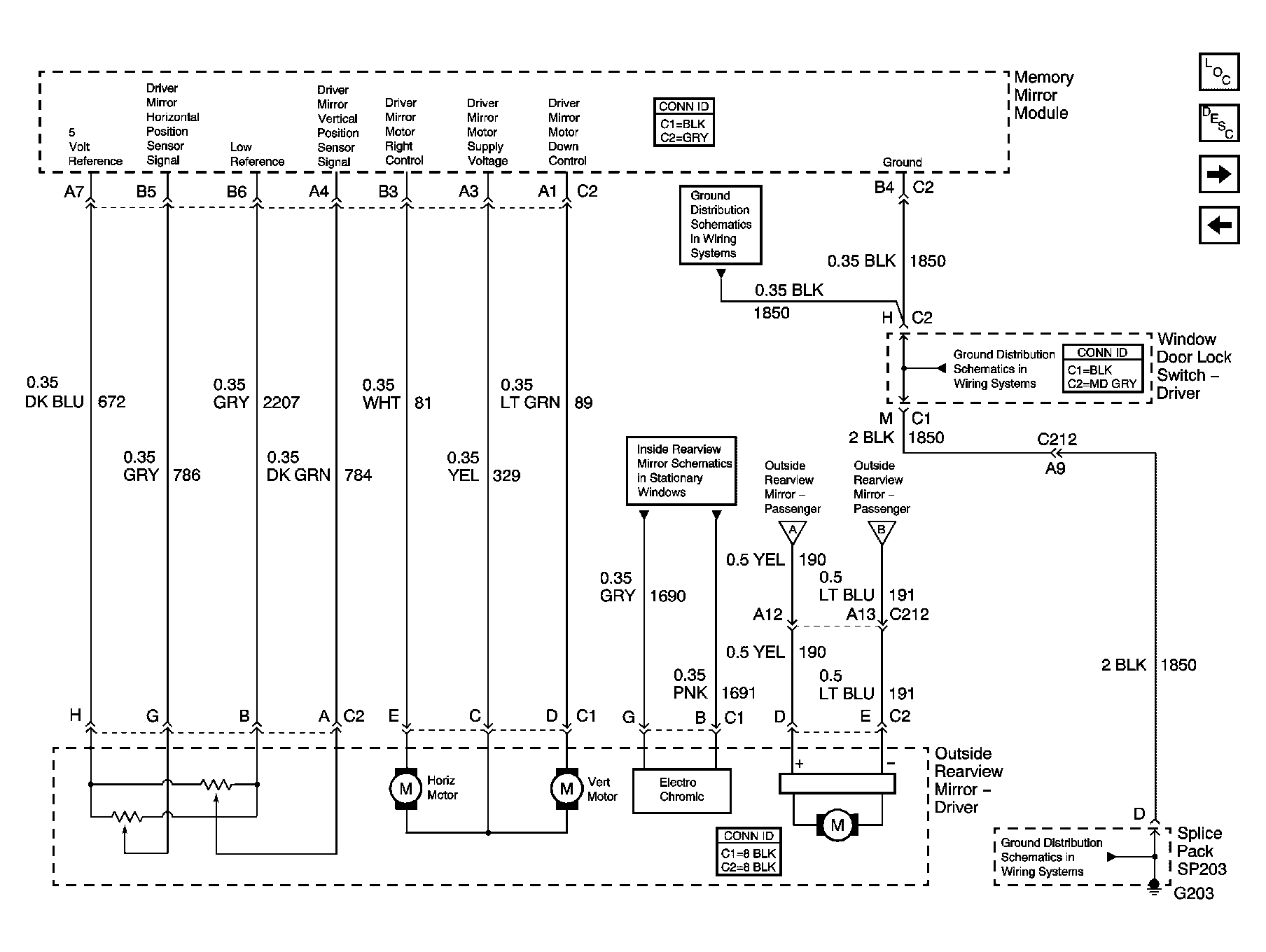

Fig 3: Outside Rearview Mirror - Driver and Memory Mirror Module-Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

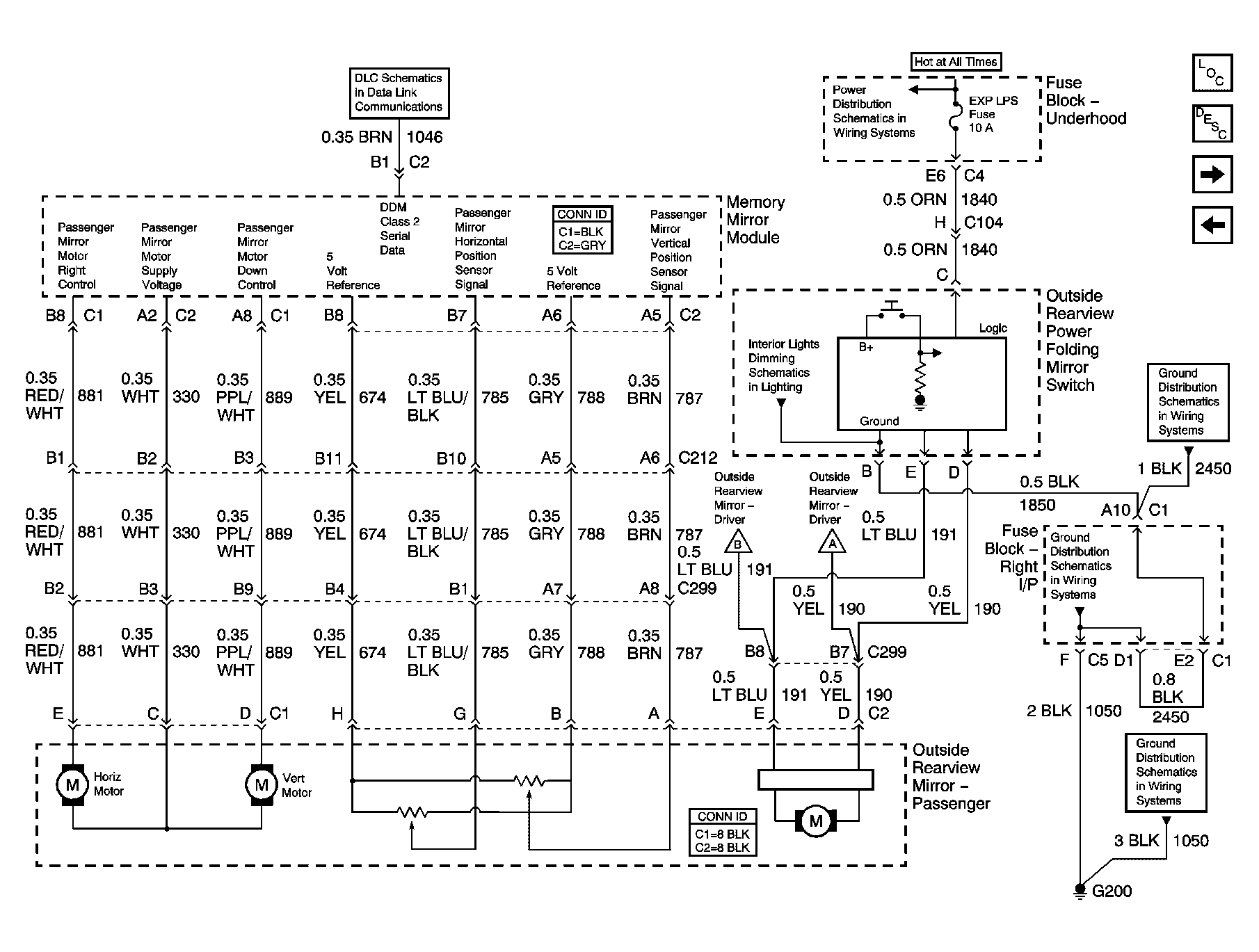

Fig 4: Outside Rearview Mirror - Passenger and Outside Rearview Power Folding Mirror Switch-Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

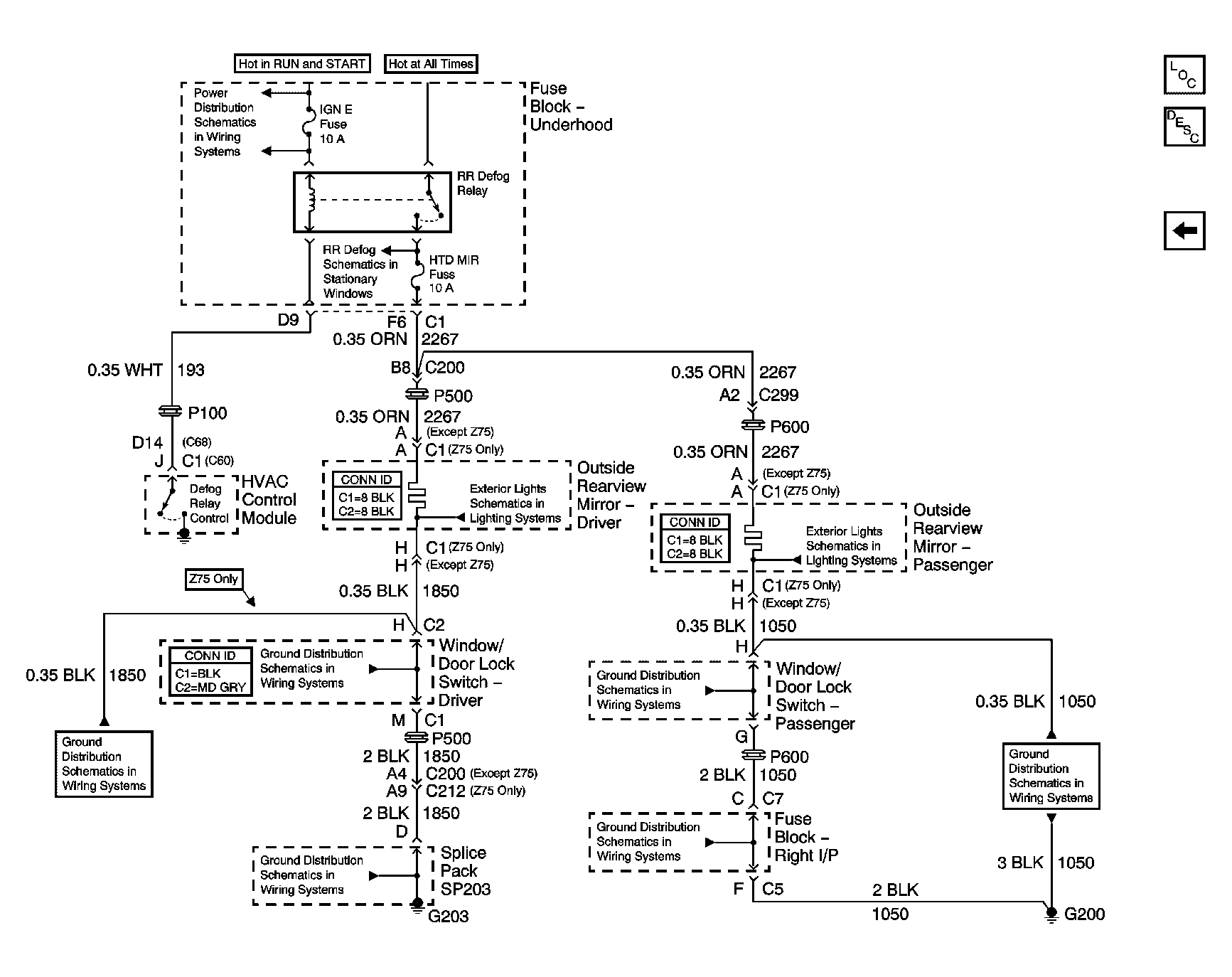

Fig 5: Outside Rearview Mirror Heater Control Schematic

Courtesy of GENERAL MOTORS CORP.
