Removal Procedure

  1. Remove Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gages and Console.
  2. Gently lift the retaining tabs (2) and remove the stabilitrak switch (3) from the Instrument Panel (IP) assembly (1).

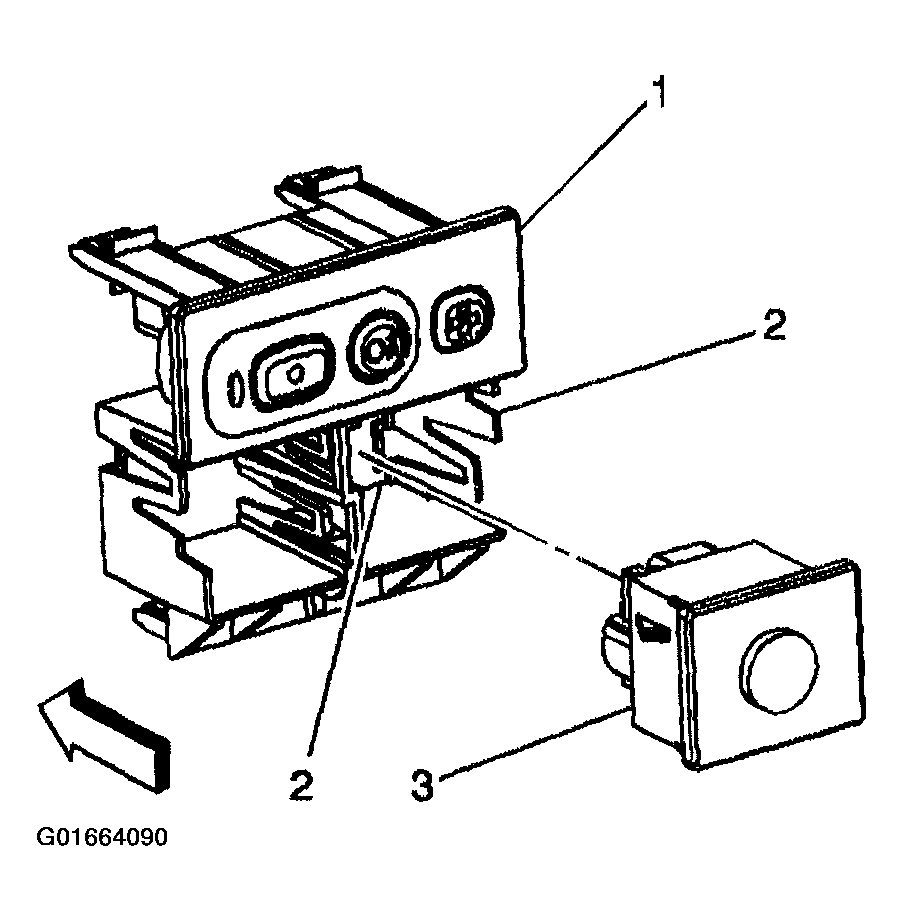

    3. Fig 1: Removal Of StabiliTrak Switch From Instrument Panel Assembly
    G01664090Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the harness connector from the stabilitrak switch.
    4. Fig 2: Locating StabiliTrak Switch Harness Connector
    G01664091Courtesy of GENERAL MOTORS CORP.
