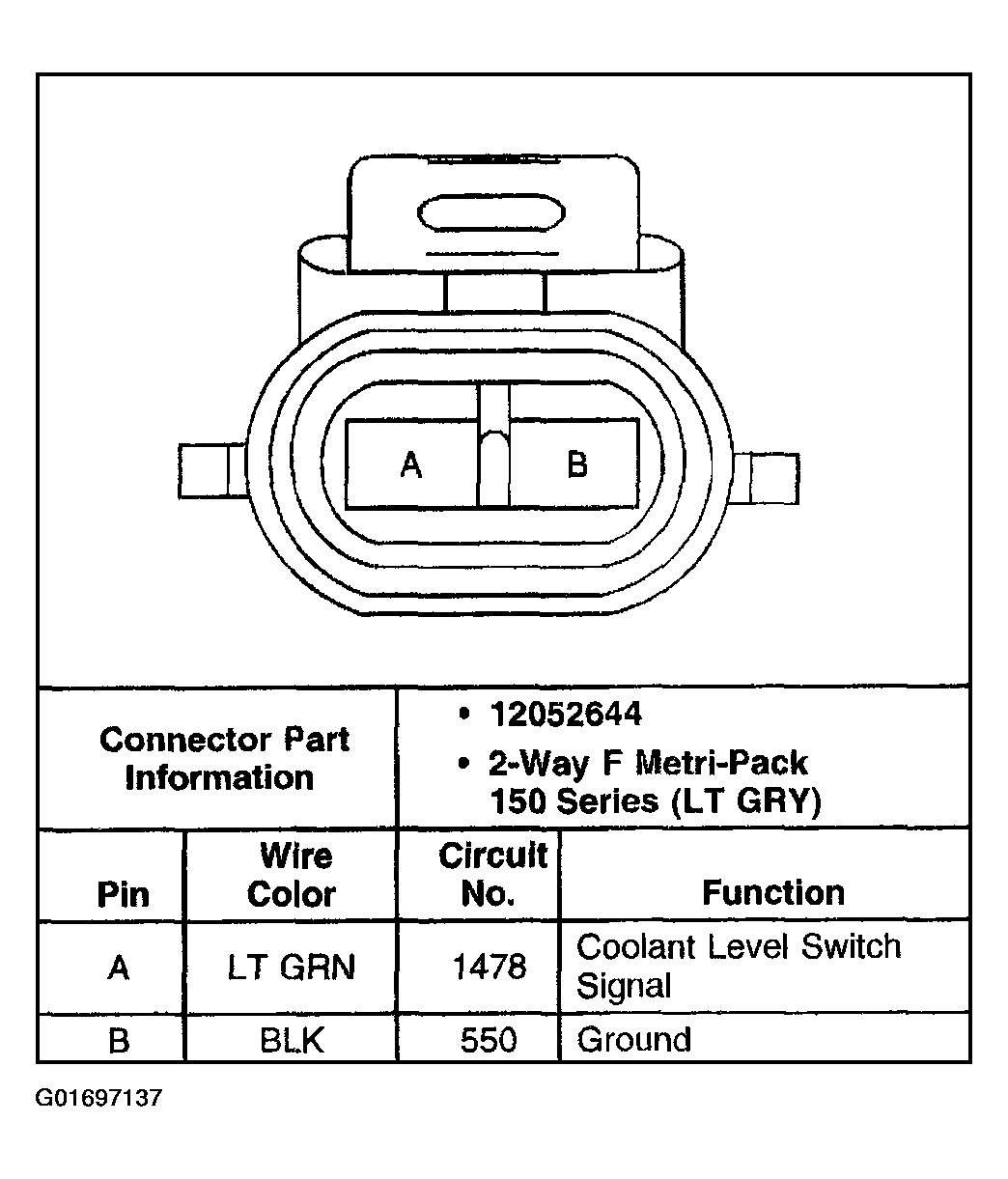

Coolant Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Coolant Level Switch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12052644
- 2-Way F Metri-Pack 150 Series Sealed (GRY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
LT GRN |
1478 |
Coolant Level Switch Signal |
| B |
BLK |
550 |
Ground |
