Dimmer Switch Connector End View
Dimmer Switch Connector End View

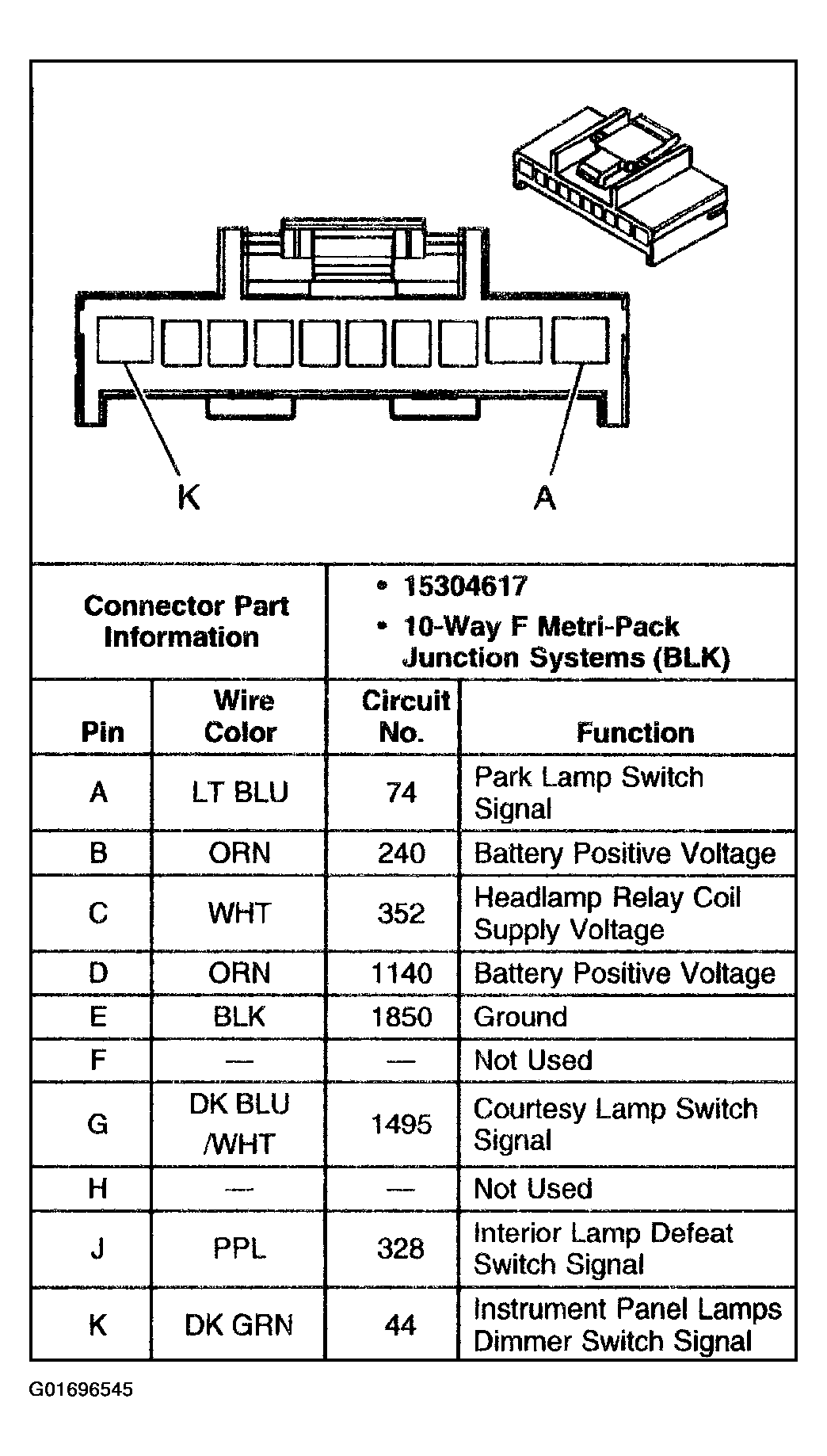

Fig 1: Dimmer Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
